Step Action
4 Remove the filler plug.
Fill the air receiver / oil separator with oil until the level reaches the filler opening.
Refit and tighten the plug.
Tighten the vent plug of the oil cooler.
5 Disconnect the air inlet hose from the inlet valve.
Pour 10 liter of oil into the compressor stage.
Reinstall the air inlet hose.
6 Run the compressor for a few minutes to allow the oil cooler by-pass valve to open.
Stop the compressor.
Wait a few minutes.
7 Depressurize the system by unscrewing the plug only one turn to permit any pressure in
the system to escape.
Remove the plug.
Fill the air receiver / oil separator with oil until the level reaches the filler opening.
Tighten the filler plug.
8 After carrying out all service actions in the relevant “Service Plan”, reset the service
warning.
Refer to the Service menu section.
6.5 Oil filter change
Warning
Stop the compressor and switch off the voltage. The operator must apply all relevant
Safety precautions.

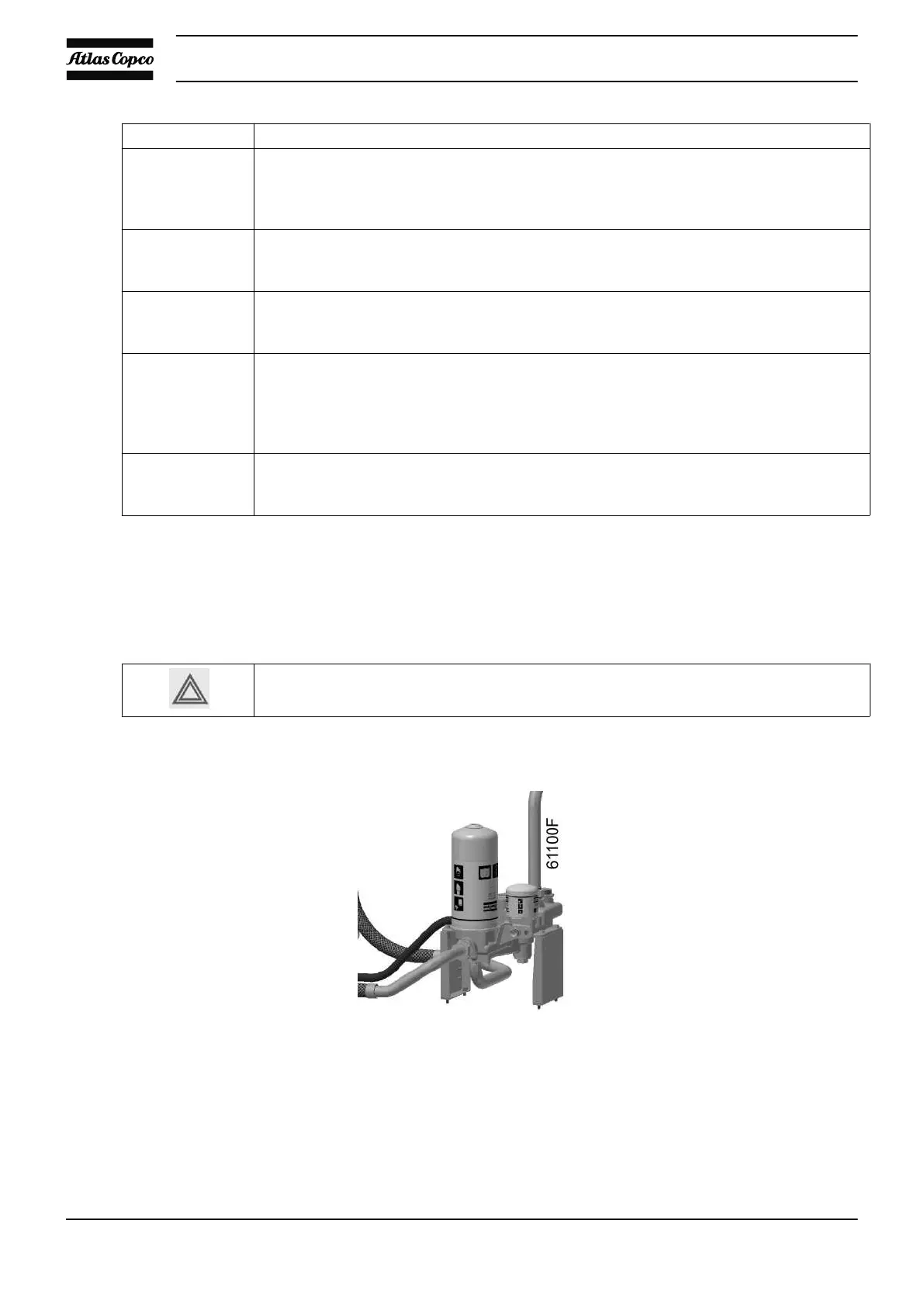

Position of oil filters
Instruction book
92 9829 3178 63
