Reference Description
(7) Compressor air inlet
Air-cooled compressor:
Cooling air inlet
Water-cooled compressor: Canopy ventilation inlet
(8) Compressed air outlet
(9) Manual drain, compressor
(10) Automatic drain, compressor
(11) Automatic drain, dryer
(12) Energy recovery water outlet
(13) Energy recovery water inlet
(14) Water-cooled compressor: Cooling water inlet
Air-cooled compressor: Not used
(15) Water-cooled compressor: Cooling water outlet
Air-cooled compressor: Not used
(16) Centre of gravity
(17) Detail C

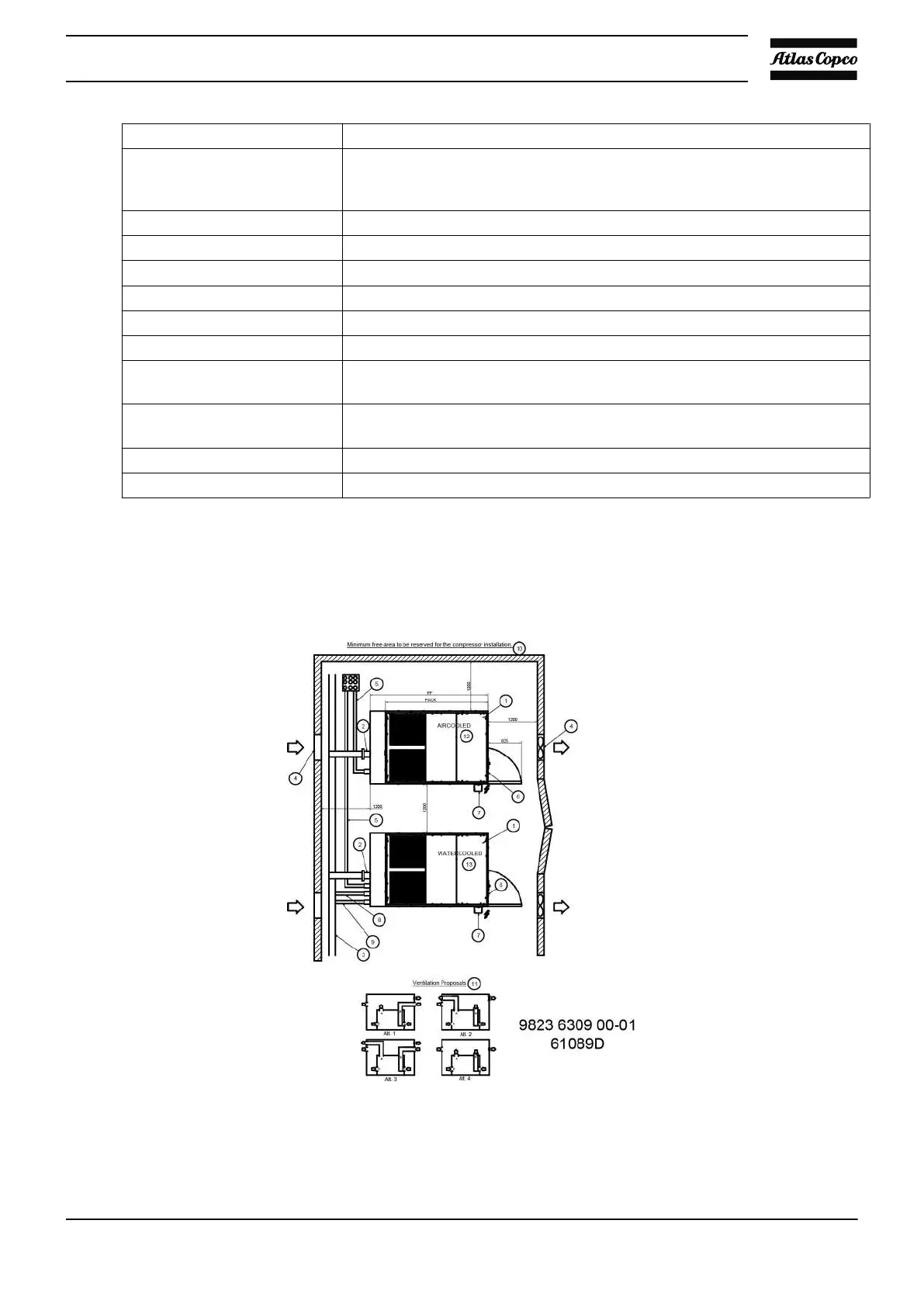

4.3 Installation proposal
Compressor room example
Compressor room example, metric units
