5.4 During operation
Warning
The operator must apply all relevant Safety precautions.
The operator should immediately stop the machine in case of oil leaks internally in the
machine as well as externally and consult a competent technician to resolve the cause.
The machine should not be restarted before the problem has been remedied.
The load cycle of the compressor must be limited to maximum two cycles per minute.

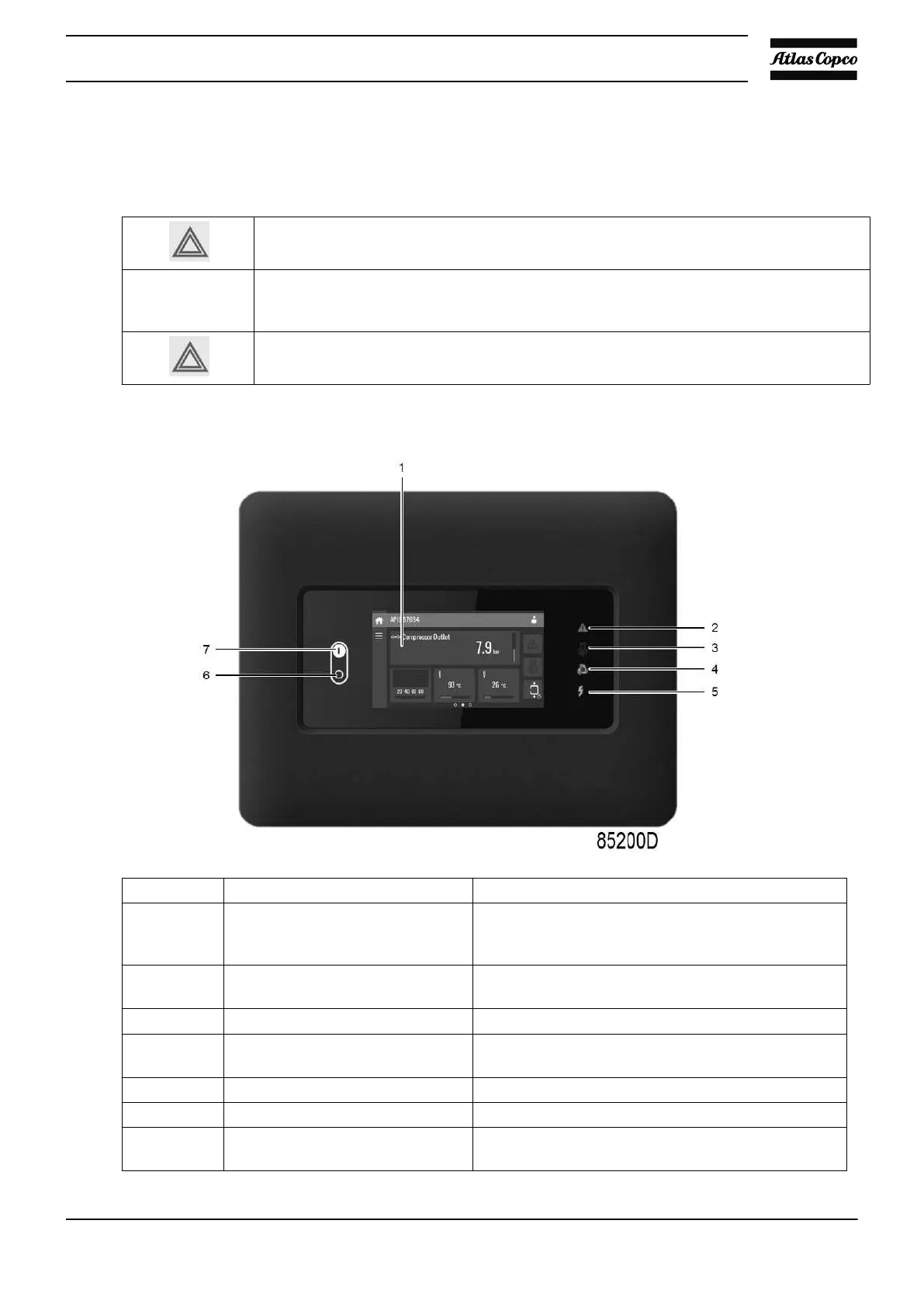

Description
Reference Designation Function
1 Touchscreen Shows the compressor operating condition and a
number of icons to navigate through the menu.
The screen can be operated by touch.
2 Warning sign Flashes in case of a shut-down, is lit in case of a
warning condition.
3 Service sign Is lit when service is needed.
4 Operation sign Is lit when the compressor is running in automatic
operation.
5 Voltage sign Indicates that the voltage is switched on.
6 Stop button This button stops the compressor.
7 Start button This button starts the compressor. The operation
sign (4) lights up. The controller is operative.
Instruction book
9829 3178 63 83
