Reference Designation Function
5 Voltage sign Indicates that the voltage is switched on.
6 Stop button This button stops the compressor.
7 Start button This button starts the compressor. The operation
sign (4) lights up. The controller is operative.
1. Regularly check the display for readings and messages. Normally, the main display is
shown.
2.
Always check the display and remedy the trouble if the warning sign (2) is alight or blinks.
The display will show a service message if a service plan interval has been exceeded or if a
service level for a monitored component has been exceeded. Carry out the service actions
of the indicated plans or replace the component and reset the relevant timer.
Regularly check the Inputs and Outputs menus for a quick look at the compressor status.
5.6 Stopping
Reference Designation Function

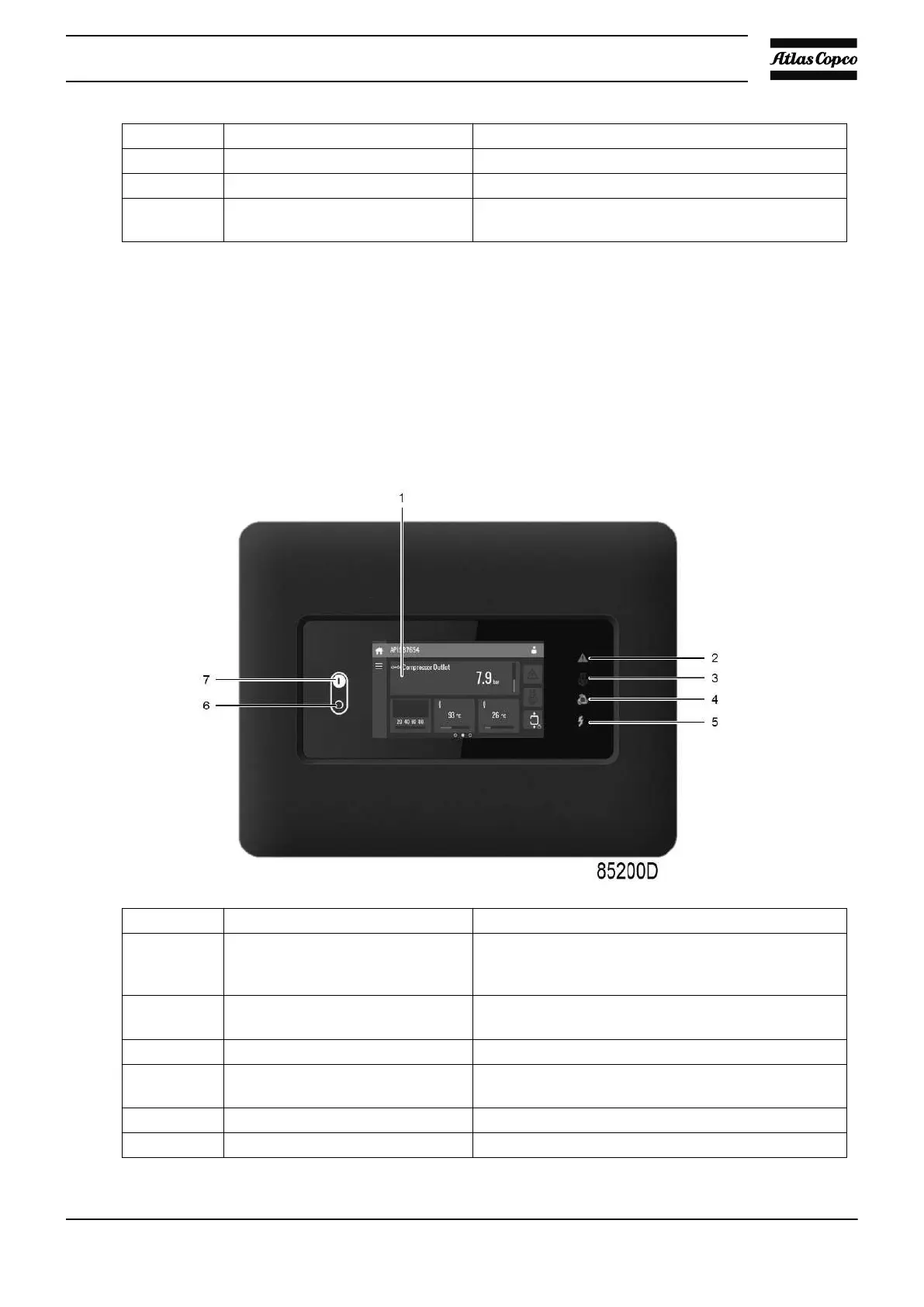

1 Touchscreen Shows the compressor operating condition and a
number of icons to navigate through the menu.
The screen can be operated by touch.
2 Warning sign Flashes in case of a shut-down, is lit in case of a
warning condition.
3 Service sign Is lit when service is needed.
4 Operation sign Is lit when the compressor is running in automatic
operation.
5 Voltage sign Indicates that the voltage is switched on.
6 Stop button This button stops the compressor.
Instruction book
