Chapter 3: Local Port Operation 27
NOTE: If new DSRIQ modules are discovered by the DSR switch, the on-screen list will be automatically
updated. The mouse cursor will change into an hourglass during the update. No mouse or keyboard input will be
accepted until the list update is complete.
To assign names to target devices:
1. In the Names dialog box, select a target device name or port number and click Modify to open
the Name Modify dialog box shown in
Figure 3.8.

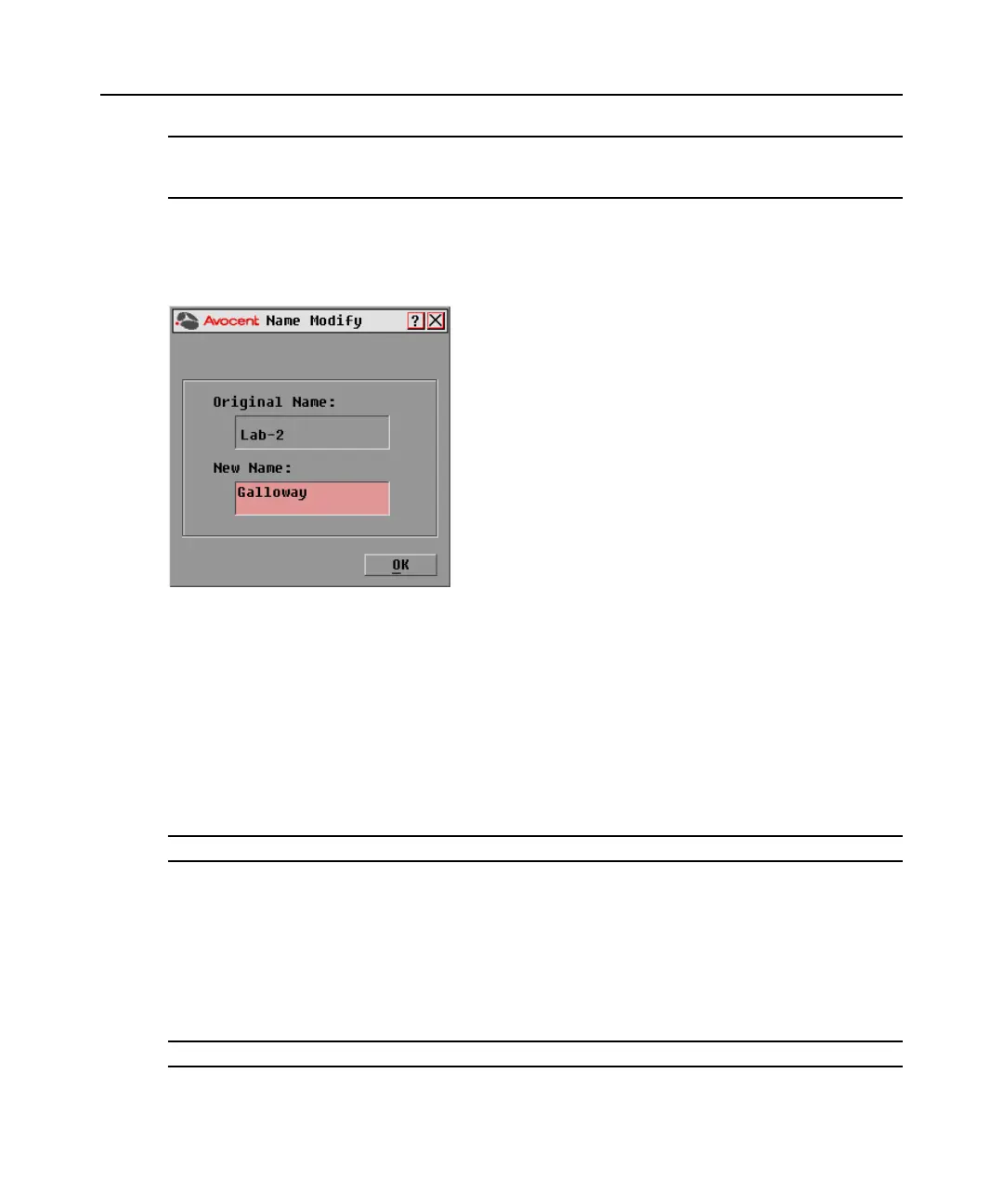

Figure 3.8: OSCAR Interface Name Modify Dialog Box
2. Type a name in the New Name box. Names of target devices may contain all
printable
characters.
3. Click OK to transfer the new name to the Names dialog box. Your selection is not saved until
you click OK in the Names dialog box.
4. Repeat steps 1-3 for each target device in the system.
5. Click OK in the Names dialog box to save your changes.
-or-
Click X or press Escape to exit the dialog box without saving changes.
NOTE: If a DSRIQ module has not been assigned a name, the EID is used as the default name.
To list target devices alphabetically by name:
Press Alt+N or click Name in the Main dialog box.
To access the OSCAR interface Devices dialog box:
1. If the OSCAR interface is not open, press Print Screen to open the Main dialog box.
2. Click Setup - Devices to open the Devices dialog box shown in Figure 3.9.
NOTE: The Modify button is available only if a configurable switch is selected.
