Chapter 3: Local Port Operation 37
Displaying version information
The OSCAR interface enables you to display the version number of the switch firmware and any
auxiliary devices connected to the switch. This information facilitates system troubleshooting and
support. For optimum performance, keep your firmware current.
To display version information:
1. If the OSCAR interface is not open, press Print Screen to open the Main dialog box.

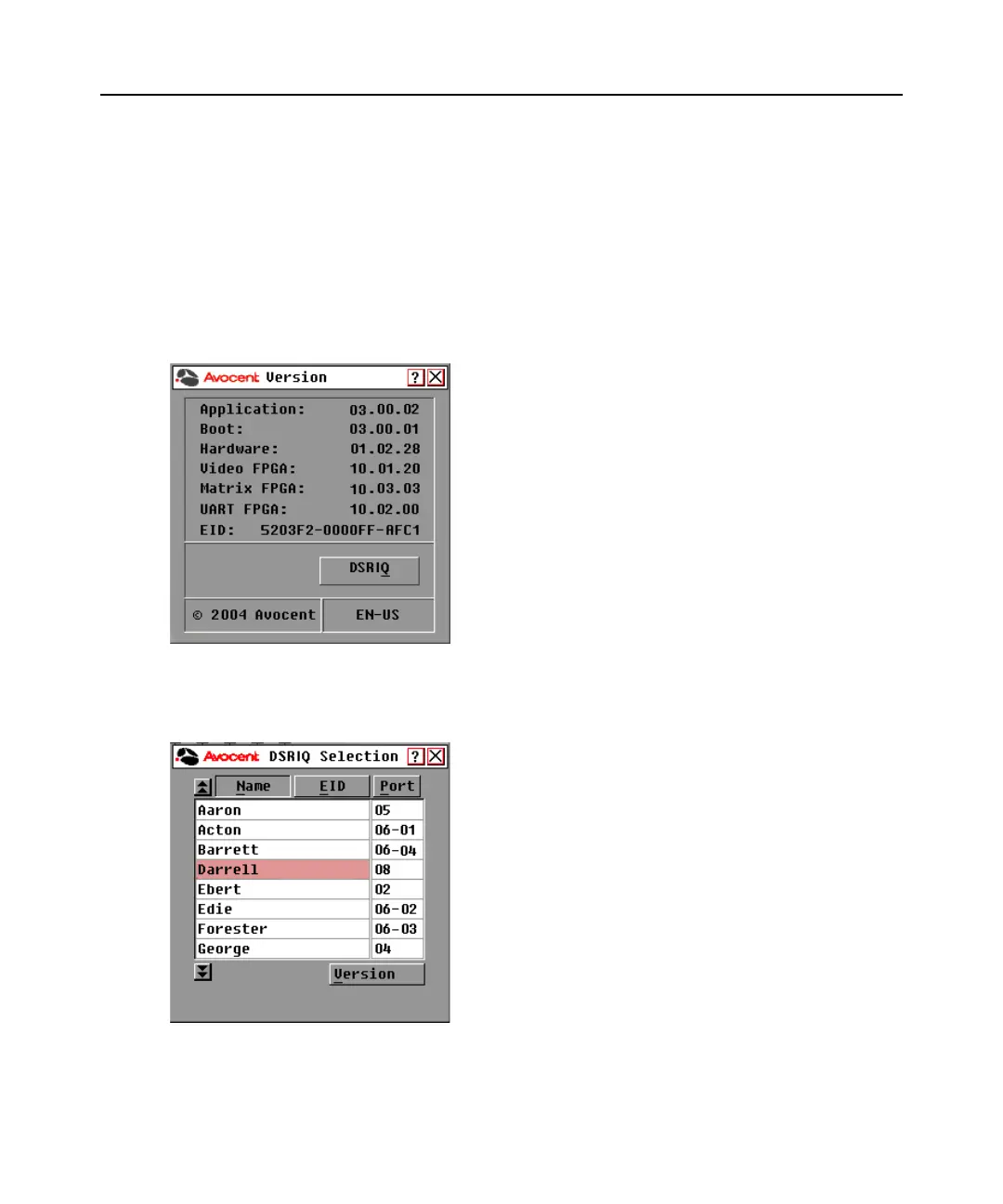

2. Click Commands - Display Versions to open the Version dialog box shown in Figure 3.19. The
top half of the box lists the subsystem versions in the DSR switch.
Figure 3.19: OSCAR Interface Version Dialog Box
3. To view individual DSRIQ module version information, click DSRIQ to open the DSRIQ
Selection dialog box shown in
Figure 3.20.
Figure 3.20: DSRIQ Selection Dialog Box
