Introduction Azbil Corporation
1-8 MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector
1.3.4: Sanitary type detector

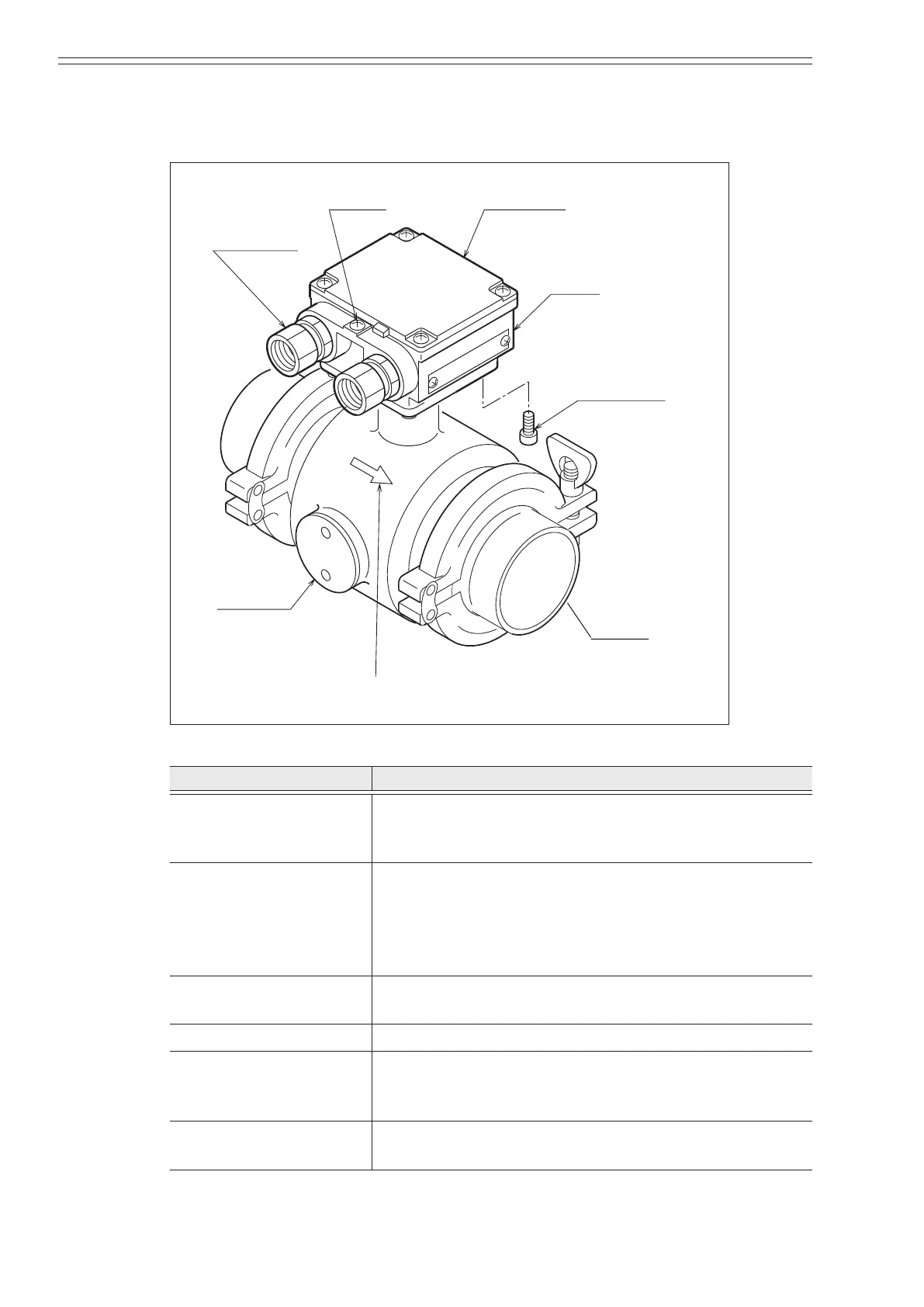

Figure 1-7 shows the structure of the detector and the names of its major parts.
Terminal box
cover
Grounding
terminal
Waterproof
gland
Terminal
box
Mounting screw
(4 places)
Electrode
cover
Flow direction mark
Ferrule
Figure 1-7 Details of the clamp type detector
Name Function
Flow direction mark Indicates the direction of uid ow.
Mount the detector so that the measured uid ows in the
direction indicated by this mark.
Electrodes The electrodes generate an electromotive force signal
proportional to the ow rate of the uid passing through
the detector.
The electrode material varies depending on the corrosion
characteristics of the uid to be measured.
Electrode cover Houses the electrodes. Do not remove the cover with the
detector installed on a pipe.
Clamp Clamp structure varies IDF clamp and tri-clamp.
Terminal box
(Remote model only)
Houses the connection terminals used to apply a standard
voltage.
Houses excitation and signal terminals.
Terminal box cover
(Remote model only)
Keeps the terminals box cover on during operation.
