Azbil MagneW FLEX+ User Manual

Azbil Corporation Installation
MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector 2-23
To install a wafer detector on a PVC pipe using non-SUS grounding ring
material and a protective plate:
Use this method to install the detector using a protective plate to prevent the PVC
pipe from being deformed or damaged when the bolts are tightened with the specied
torque.
• Install the protective plate between the outer side of the PVC ange and the
detector, as shown in the gure below. The protective plate protects the PVC
pipe. The torque level for tightening the bolts is not related to the gasket material.
See Table 2-1 on page 2-7 for the appropriate torque.
See Table 2-2 on page 2-10 for the inner diameter of the gasket.

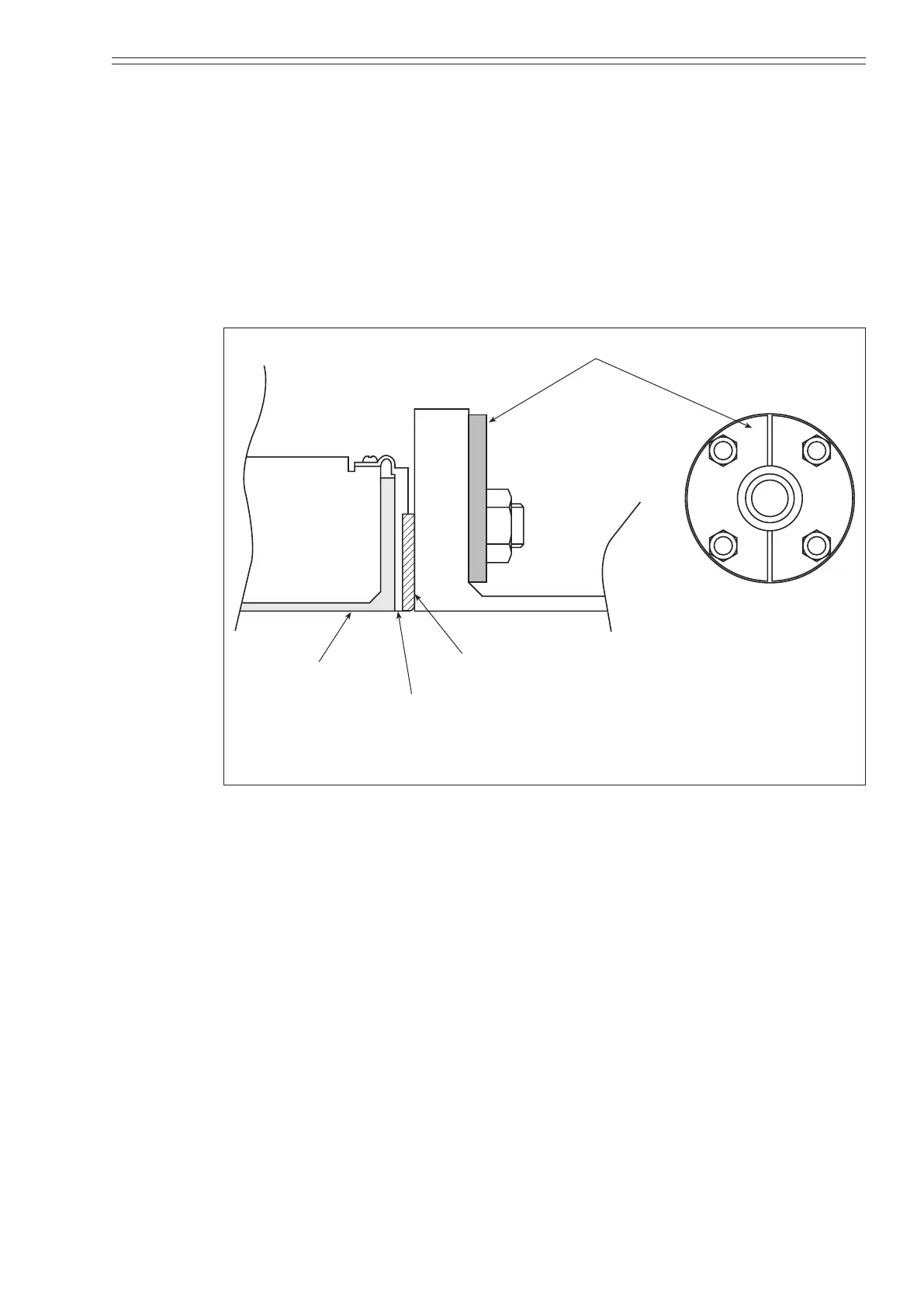

Lining
PTFE gasket
(Supplied)
Grounding ring
Protective plate
Figure 2-19 Installation on a PVC pipe using non-SUS grounding ring material
and a protective plate
