MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector 2-47
2.7.2: Grounding the detector (Remote models)
The detector is grounded via the external grounding terminal.
CAUTION
Insucient grounding can cause output uctuations, instability of the zero point,
or output drift. Secure single point grounding with a grounding resistance of 100
W or less is recommended.
To avoid damaging the detector, do not ground a welder to the detector.
Grounding resistance
100 or less
As short as possible

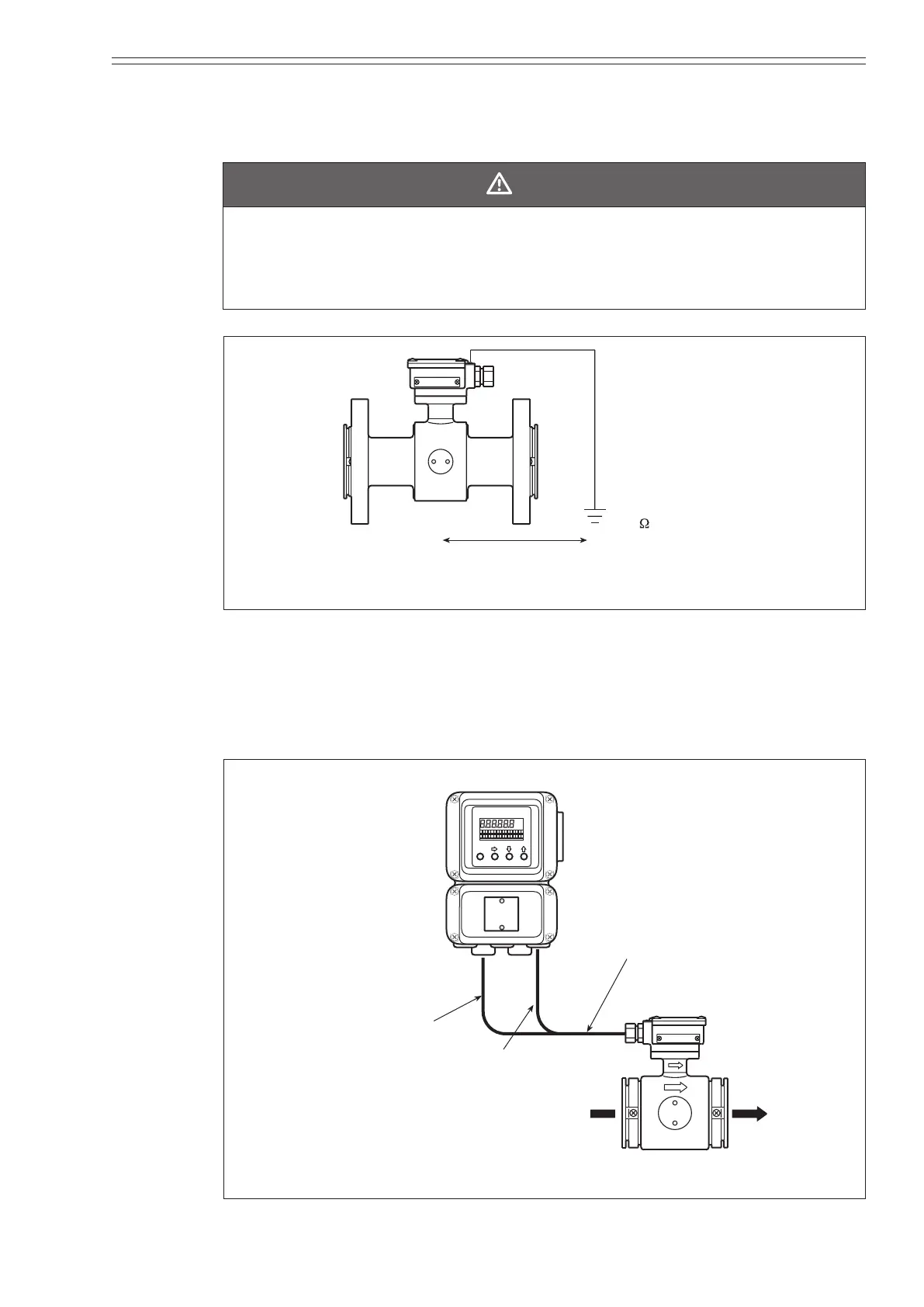

Figure 2-36 Grounding via the external grounding terminal
2.7.3: Installing the dedicated cable
The dedicated cable is used to connect the detector to the remote converter. It
transmits either the ow rate proportional signal or the excitation current.
Excitation output
(Cable for excitation)
Flow rate single input
(cable for signals)
Converter
Dedicated cable
Detector
Direction of uid
Figure 2-37 Connection using a dedicated cable
