Installation Azbil Corporation
2-46 MagneW FLEX+/PLUS+ Electromagnetic Flowmeter Detector
2.7 : Wiring the detector
2.7.1: Connecting the detector and converter (Remote
models)
The use of a dedicated cable (model MGA12W) is recommended for the connection
between the detector and the converter. For detailed wiring information (including the
dedicated cable) see the manual for the converter that you are using.

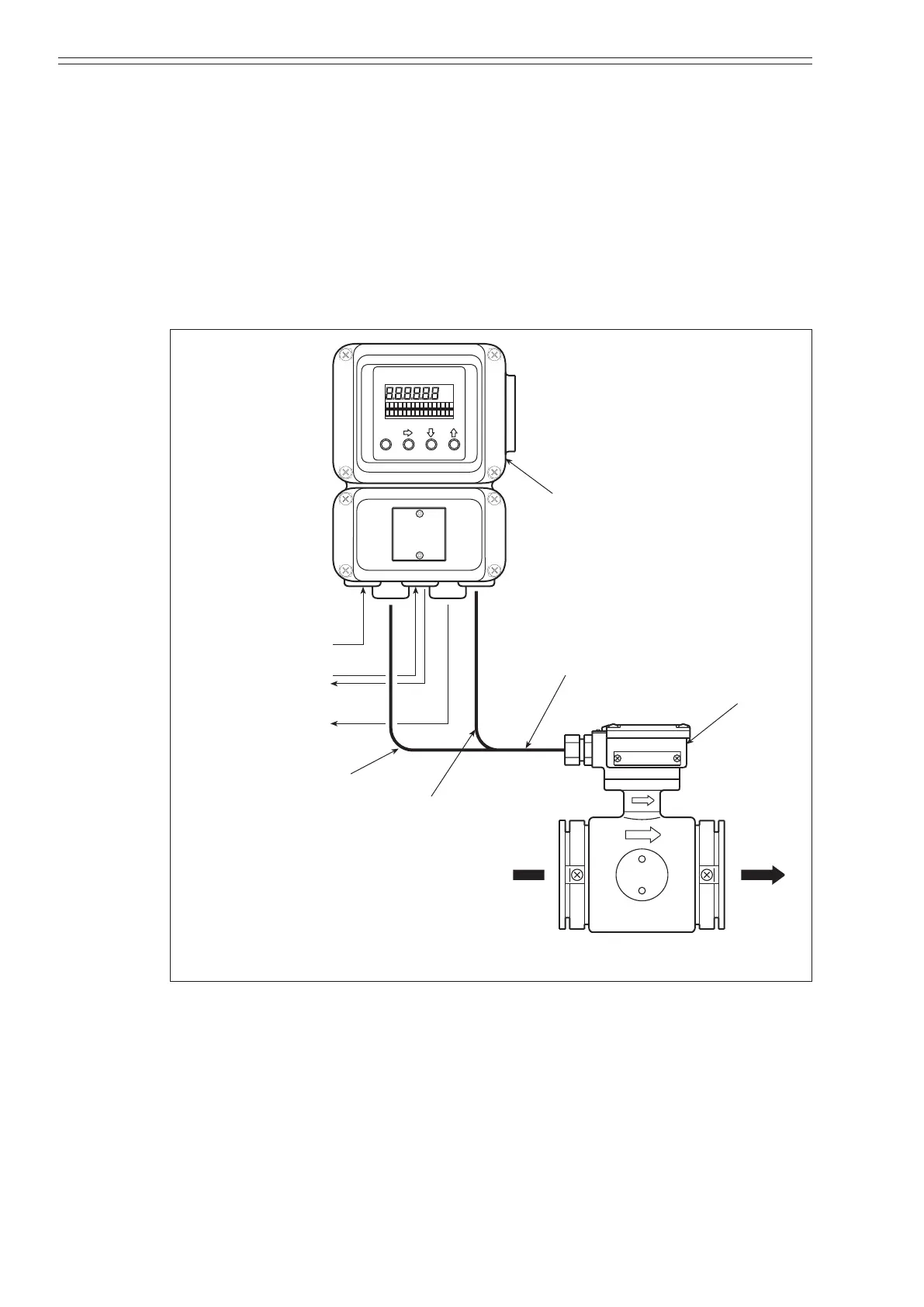

Power Supply
Pulse Output,
Contact Input/Output
Analog Output/
Digital Output
Excitation Output
Flow Rate
Signal Input
Converter
Dedicated Cable
(MGA12W Type)
Detector
Direction of Fluid
Figure 2-35 Connection using a dedicated cable
~Note
Although the dedicated cable is shielded, install it away from any
possible sources of noise, such as a large capacity transformer,
motors, or motor power supplies.
