131R5905752 /16 DP2K C
10.9 Installation of the top cover
Required tools
Allen key 3 mm
How to install the top cover of the projector?
1. Place the top cover on the projector so that both holes matches the adjustment studs on top of the
projector.

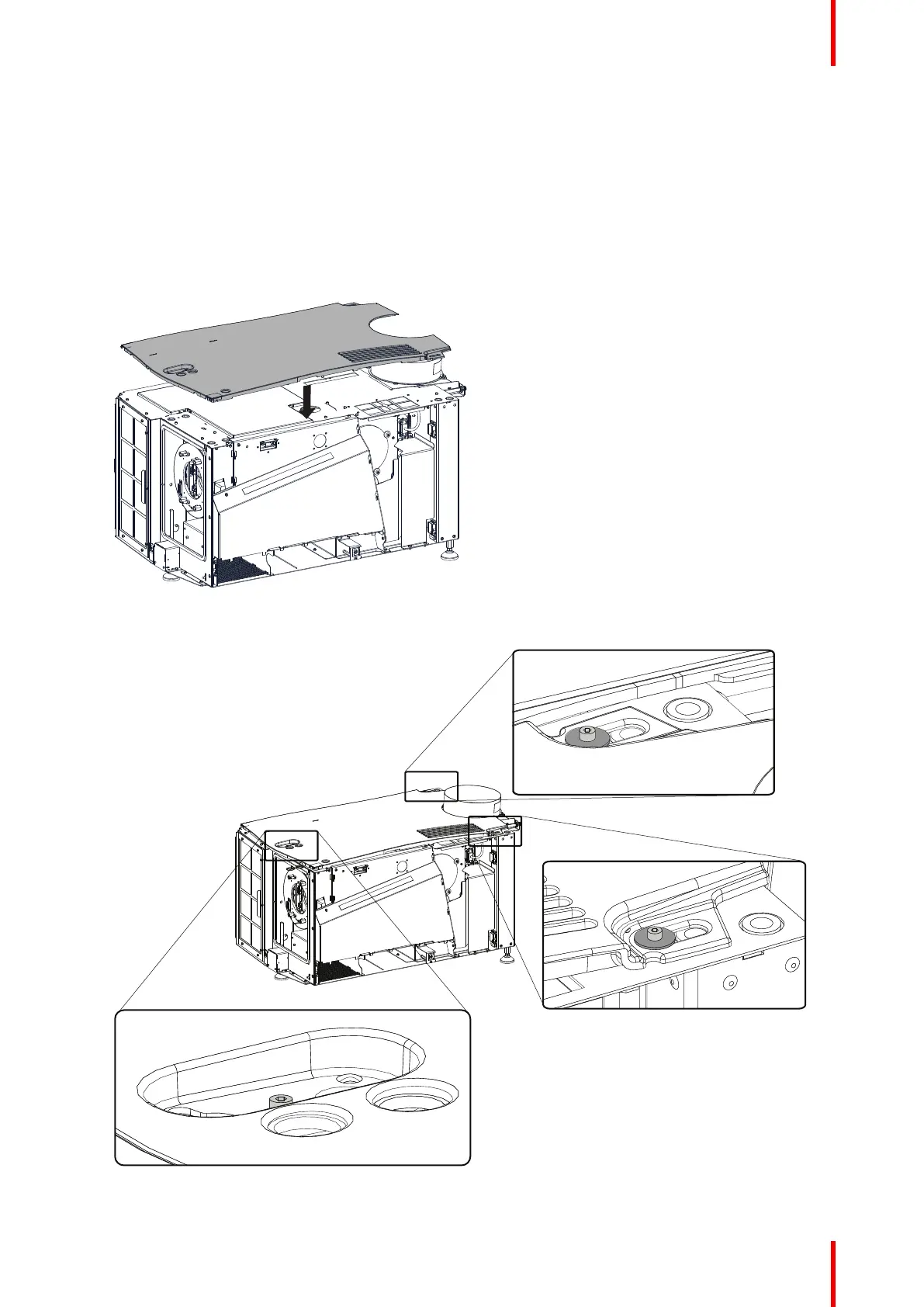

Image 10–17 Mount top cover
2. Turn all 3 fixation screws. Insert the washer between the screw and the top cover.
Image 10–18 Fixate top cover
Removal and installation of projector covers
