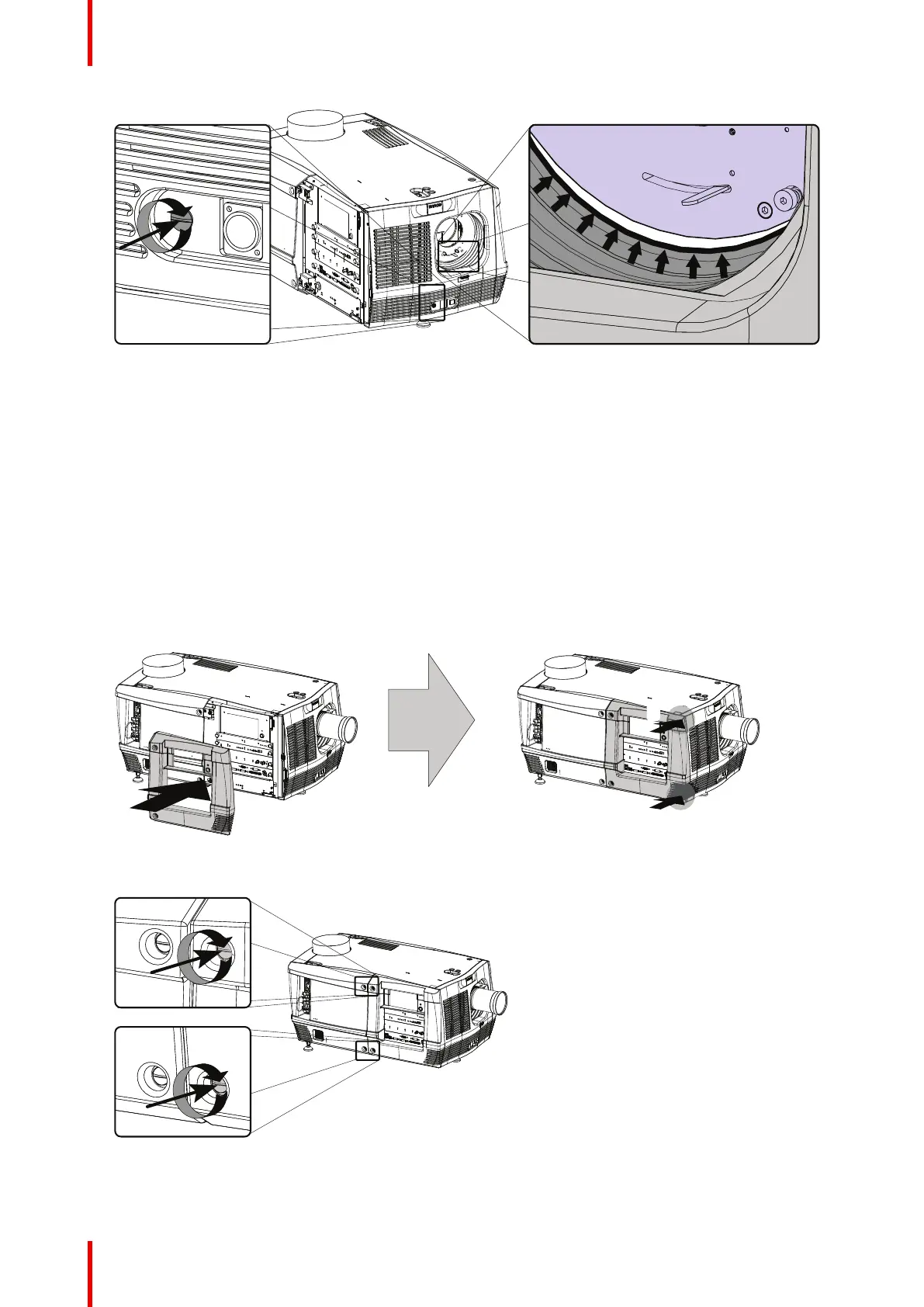

Image 10–24 Fasten front cover
5. Reinstall the rubber dust ring around the lens holder. See detail at the right of Image 10–24.
10.13 Installation of the input cover
Required tools
Flat screw driver.
How to install the input cover of the projector?
1. Install the input cover of the projector doing the following:
1. Bring the input cover towards its final position (A),
2. then gently push the locking stud at the right top corner (B) into its receiver,
3. then gently push the locking stud at the right bottom corner (C) into its receiver.
Image 10–25 Install input cover
2. Secure the input cover by locking the two captive screws at the left side of the input cover.
Image 10–26 Fasten input cover
Removal and installation of projector covers
