R5905752 /16 DP2K C132
10.10 Installation of the rear cover
Required tools
Flat screwdriver.
How to install the rear cover of the projector?
1. Install the rear cover of the projector doing the following:
1. Bring the rear cover towards it final position,
2. then gently push the locking studs of the top corners into their receivers

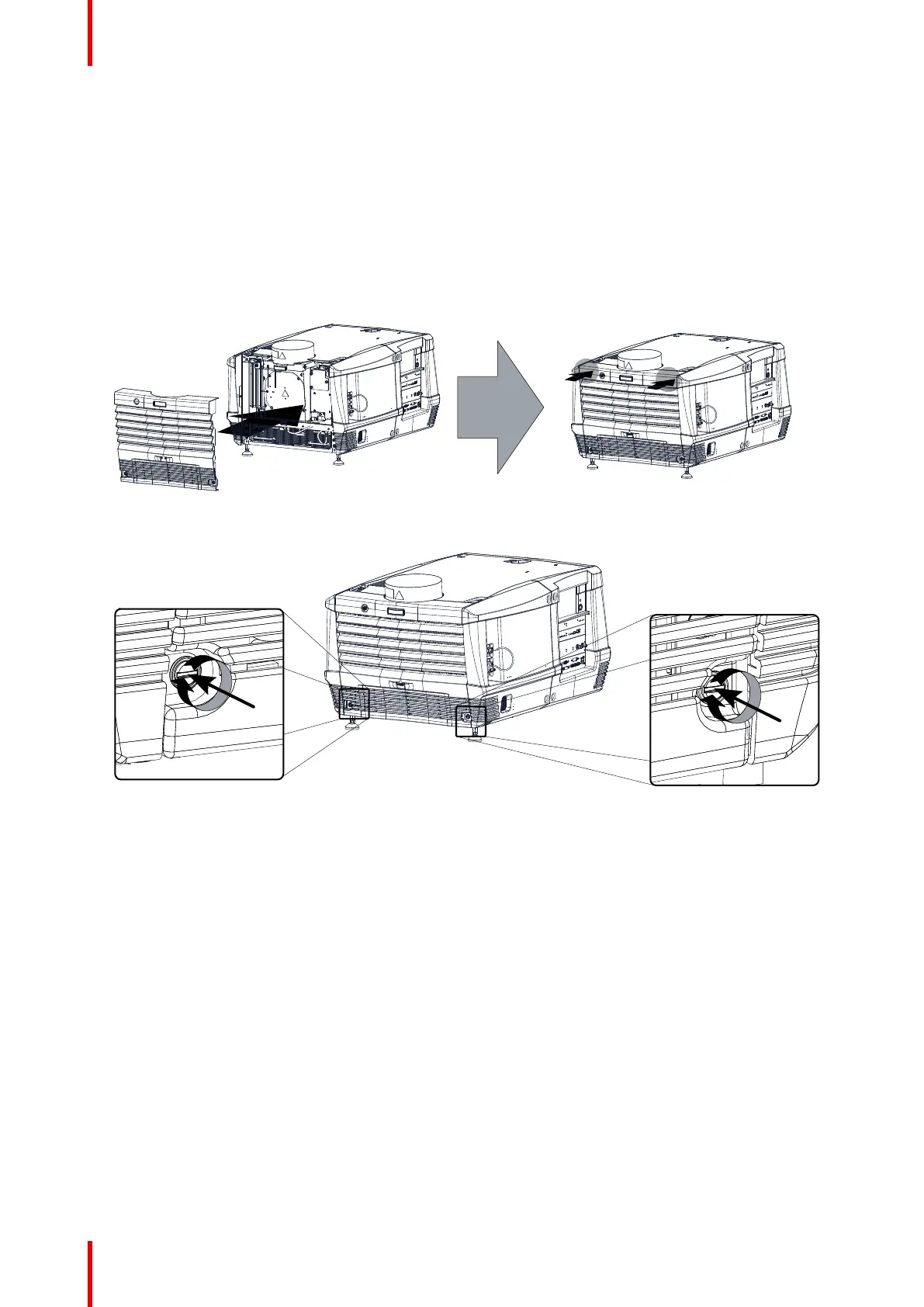

Image 10–19 Install rear housing
2. Secure the rear cover by locking the captive screws at the bottom corners of the rear cover.
Image 10–20 Fasten rear housing
10.11 Installation of the side cover
Required tools
Flat screw driver.
How to install the side cover of the projector?
1. Check if the bottom and top filters are present.
2. Install the side cover of the projector doing the following:
1. Bring the side cover towards its final position (A),
2. then gently push the locking studs of the top corners (B) into their receivers,
3. then gently push the locking studs of the bottom corners (C) into their receivers.
