3. Secure the side cover by locking the captive screw in the middle at the bottom of the side cover.
Image 10–22
10.12 Installation of the front cover
The input cover and the lens may not be installed yet.
Required tools
Flat screw driver.
How to install the front cover of the projector?
1. Check if the front filter is present.
2. Ensure that no lens is mounted and that the input cover is not installed.
3. Install the front cover of the projector doing the following:
1. first hook in the side of the front cover at the front filter,
2. then gently push the other side of the front cover into position,
3. ensure that the locking studs in the corners click into their receivers.
B
C
A

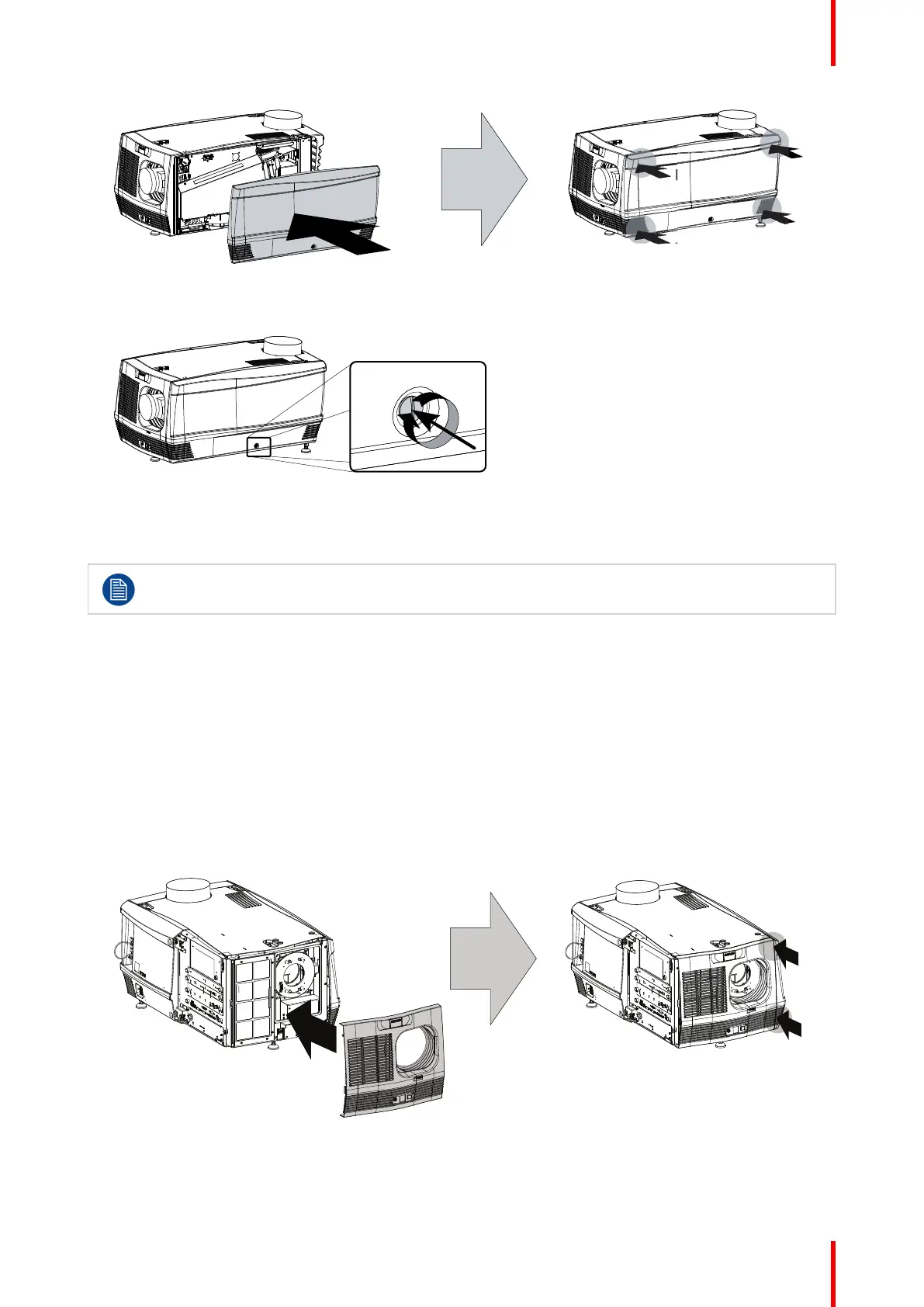

Image 10–23 Install front cover
4. Secure the front cover by locking the captive screw in the middle at the bottom of the front cover.
Removal and installation of projector covers
