R5905752 /16 DP2K C32
• Secure the leg height by tightening the nuts (A).

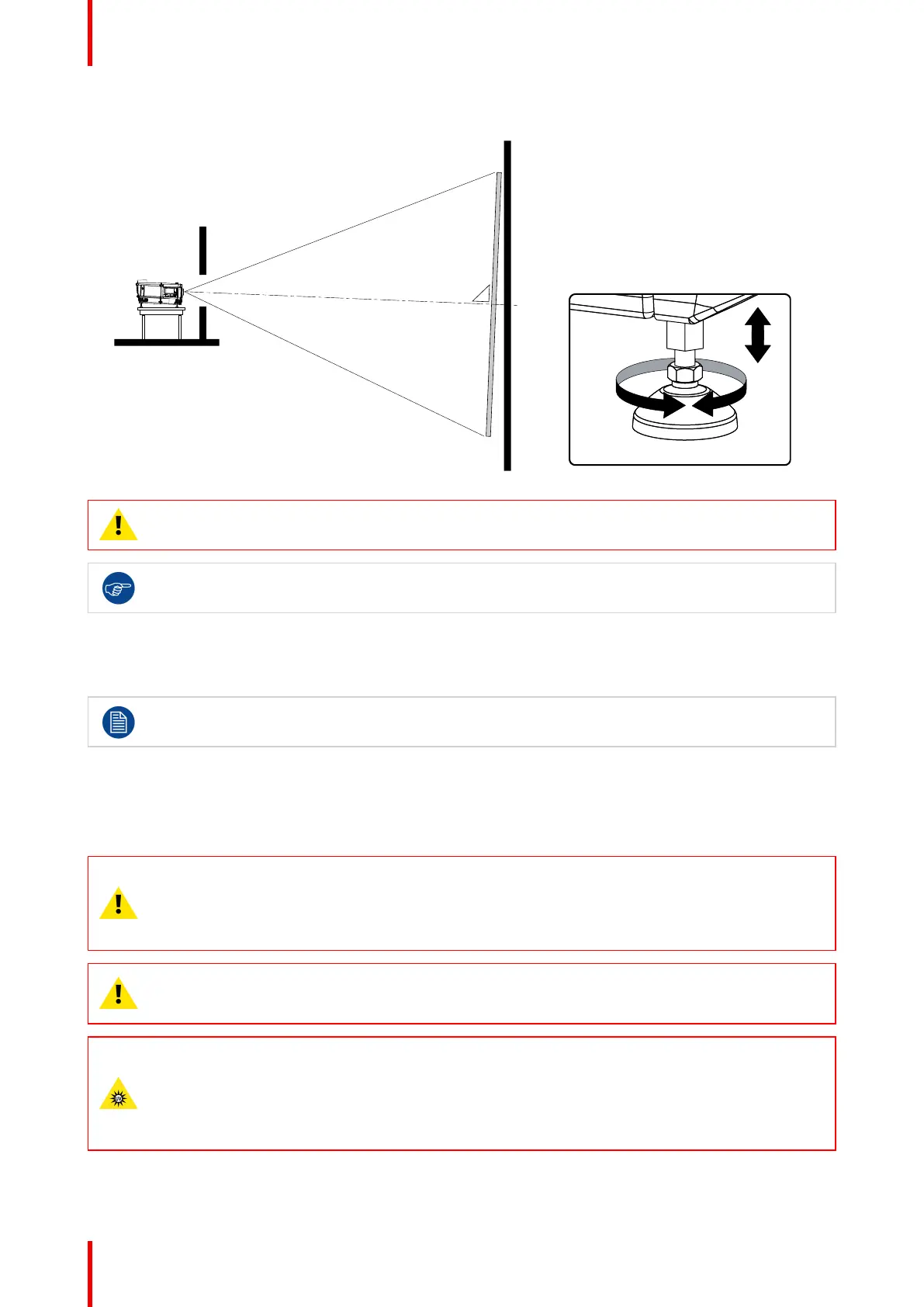

Image 3–4 Projector tilting
CAUTION: The projector may tilt maximum 15° forward and maximum 15° backwards. This
includes the tilt created by the projector feet and the tilt created by the pedestal.
Barco offers a pedestal for the projector. This pedestal allows you to easily tilt the projector forward
up to 6°.
3.2 Installation of the exhaust system
THE USE OF AN EXHAUST SYSTEM IS MANDATORY !
About Exhaust
The exhaust stack of the projector head is designed to fit a 201 mm (7.91 inch) diameter duct. This size must
be used throughout the entire system and installed to eliminate any possibility of downdraft or rain dripping
into the lamp house.
CAUTION: The exhaust system must be capable of removing minimum 6,65 m
3
/min (235 CFM),
measured at the projector's exhaust opening. Although not obligatory, Barco also advises to limit the
amount of extraction to a maximum of 6.8 m
3
/min (240 CFM). Excessive air extraction can
dramatically speed-up contamination of the projector air inlet filters, hence requiring more regular
filter cleaning interventions.
CAUTION: The connection between the projector duct and the exhaust system should be done with
a flexible connection piece. This to prevent that vibrations of the external exhaust system disturbs
the projected image.
WARNING: The exhaust system must match the duct of the projector seamless. No gap may exist
between the connection of the duct and the exhaust system. This to prevent personal injury due to
the UV light that comes out of the duct of the projector.
Never look into the exhaust output on the top of the projector. High luminance and UV radiation
could result in damage to the eye. The installation of an exhaust system on top of the projector is
mandatory before operating the projector.
Physical installation
