31R5905752 /16 DP2K C
SCREEN CENTER SCREEN CENTER
OFF-CENTER
A B

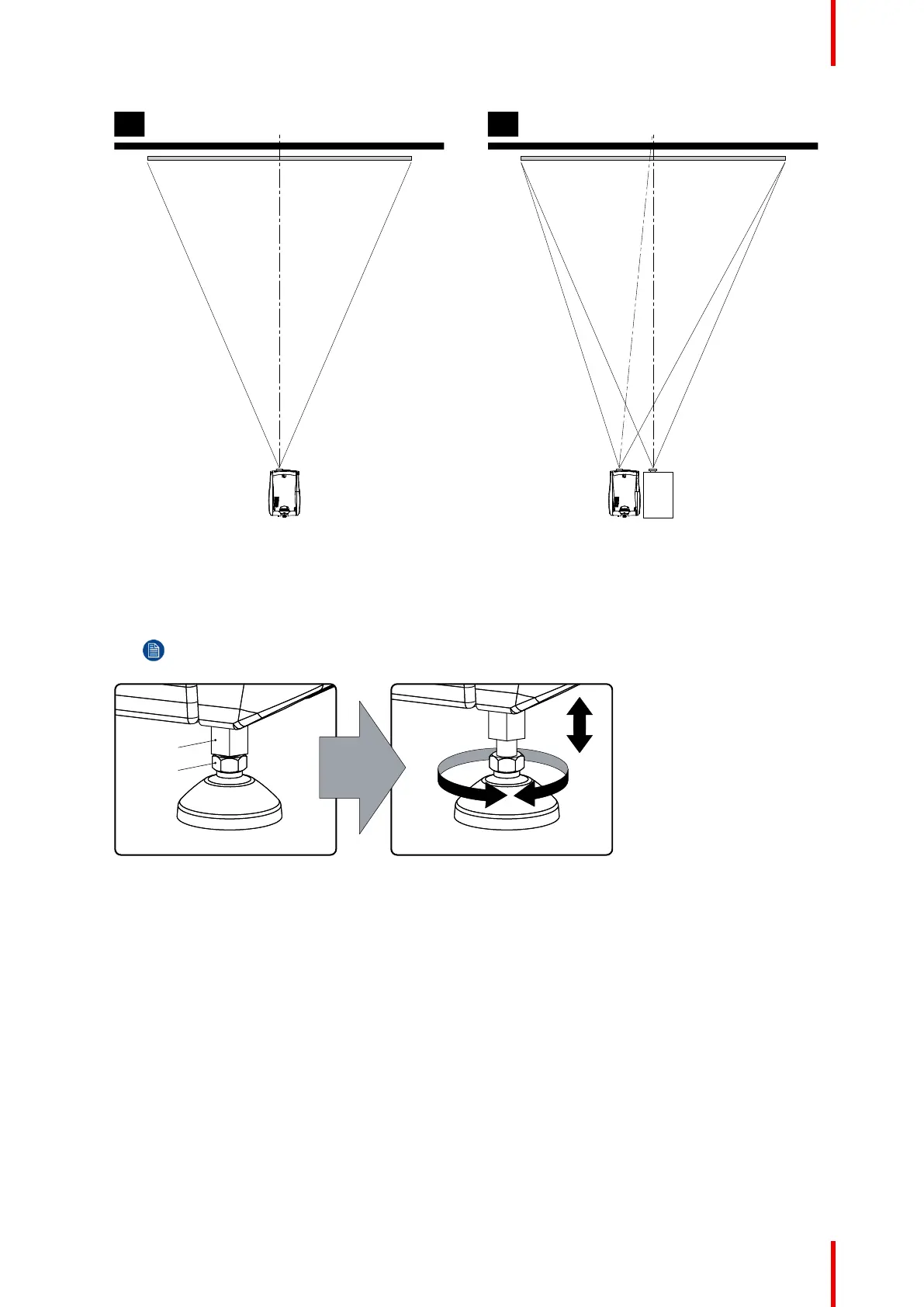

Image 3–2 Projector centering
3. Proceed to leveling the projector by adjusting the feet of the projector as follows:
• Loosen the nuts (A), using a wrench of 17 mm, on the threaded rod.
• Adjust the height of the 3 legs (B) to level the projector, using a 14 mm wrench.
• Secure the leg height by tightening the nuts (A).
Note: There must be at least 5 cm between the bottom side of the projector and the pedestal.
Image 3–3 Projector leveling
4. Later, when the projector is up-and-running, adjust precise image geometry and placement.
Projector tilting
In an ideal installation, the projector lens surface is centered with and parallel to the screen. This orientation
helps to ensure optimized lens performances with minimal offset. If this position is not possible (such as when
the projector is significantly higher than the center of the screen), it is better to rely on offset rather than extra
tilt.
1. Before adjusting tilt, make sure the projector is as well-centered with the theatre screen as possible for
your installation area.
2. Check with theatre personnel for the degree of screen tilt, or measure this incline with a protractor at the
screen.
3. Tilt the projector to closely match this screen tilt angle as follows:
• Loosen the nuts (A), using a wrench of 17 mm, on the threaded rod.
• Adjust the height of the legs until the projected image matches the projection port window and the
screen tilt.
Physical installation
