Barco DP2K-15C User Manual

R5905752 /16 DP2K C148
1

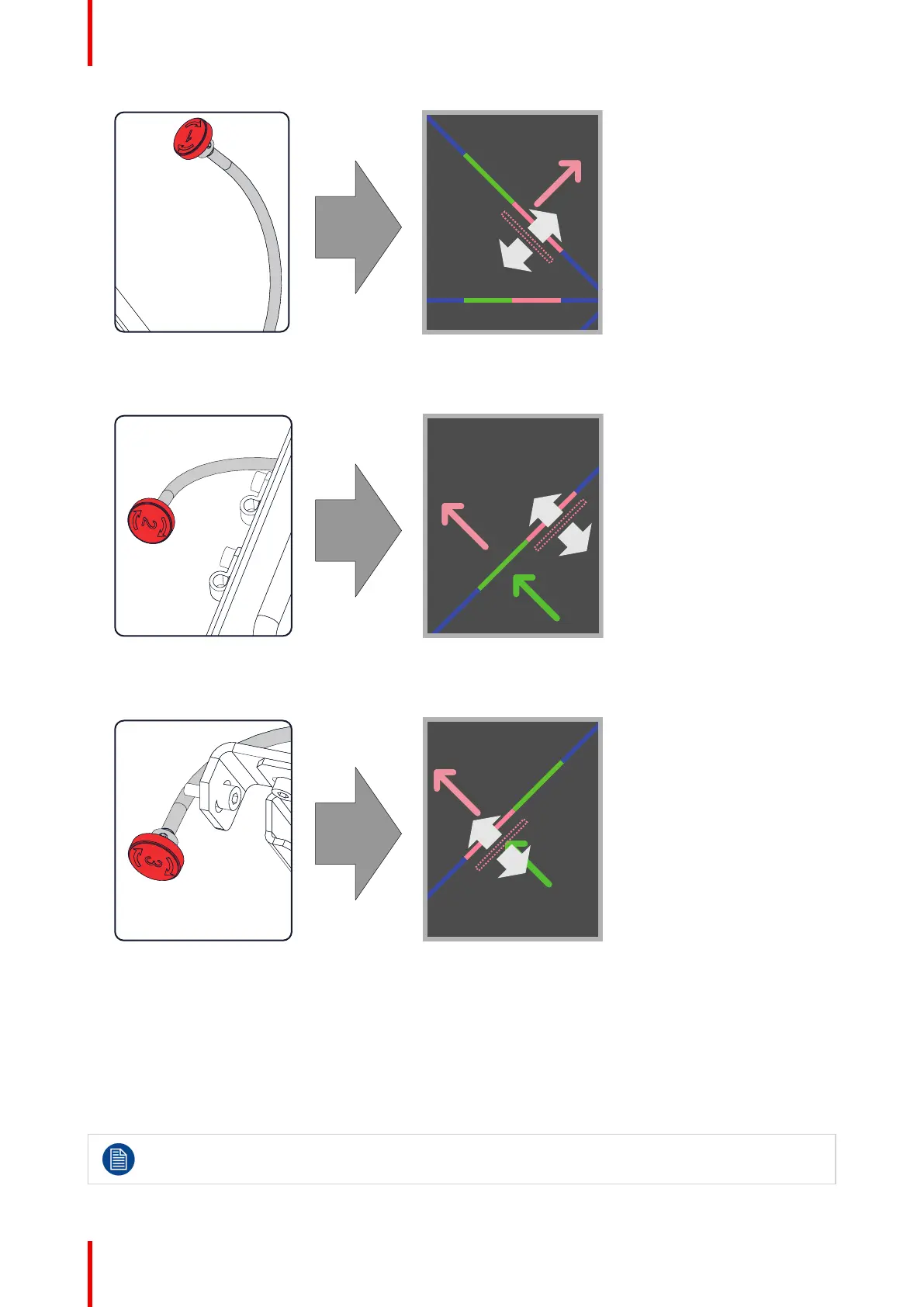

Image 12–6 Clockwise turning will move line downwards.
2. Slightly turn the red colored control knob number 2 until the red pattern in the lower left of the projected
image converges with the blue pattern.
2
5
Image 12–7 Clockwise turning will move line upwards.
3. Slightly turn the red colored control knob number 3 until the red pattern in the upper right of the projected
image converges with the blue pattern.
3
6
Image 12–8 Clockwise turning will move line upwards.
4. Repeat go to step 2 and go to step 3 until coincidence is obtained of the red pattern in the lower left and
upper right of the projected image.
5. Repeat from go to step 1 until full coincidence is obtained of the red pattern in the center, lower left and
upper right of the projected image.
12.4 Green on Blue convergence
This procedure can only be executed when all preparations are taken to converge the image.
Convergence
