Installation
Shielding
Note
Shielding
Analog sensors and actors should always be connected with shielded, twisted paired wires.
5.4 Mounting of Passive Terminals
Note
Hint for mounting passive terminals
EtherCAT Bus Terminals (ELxxxx / ESxxxx), which do not take an active part in data trans-
fer within the bus terminal block are so called Passive Terminals. The Passive Terminals
have no current consumption out of the E-Bus To ensure an optimal data transfer, you
must not directly string together more than 2 Passive Terminals!

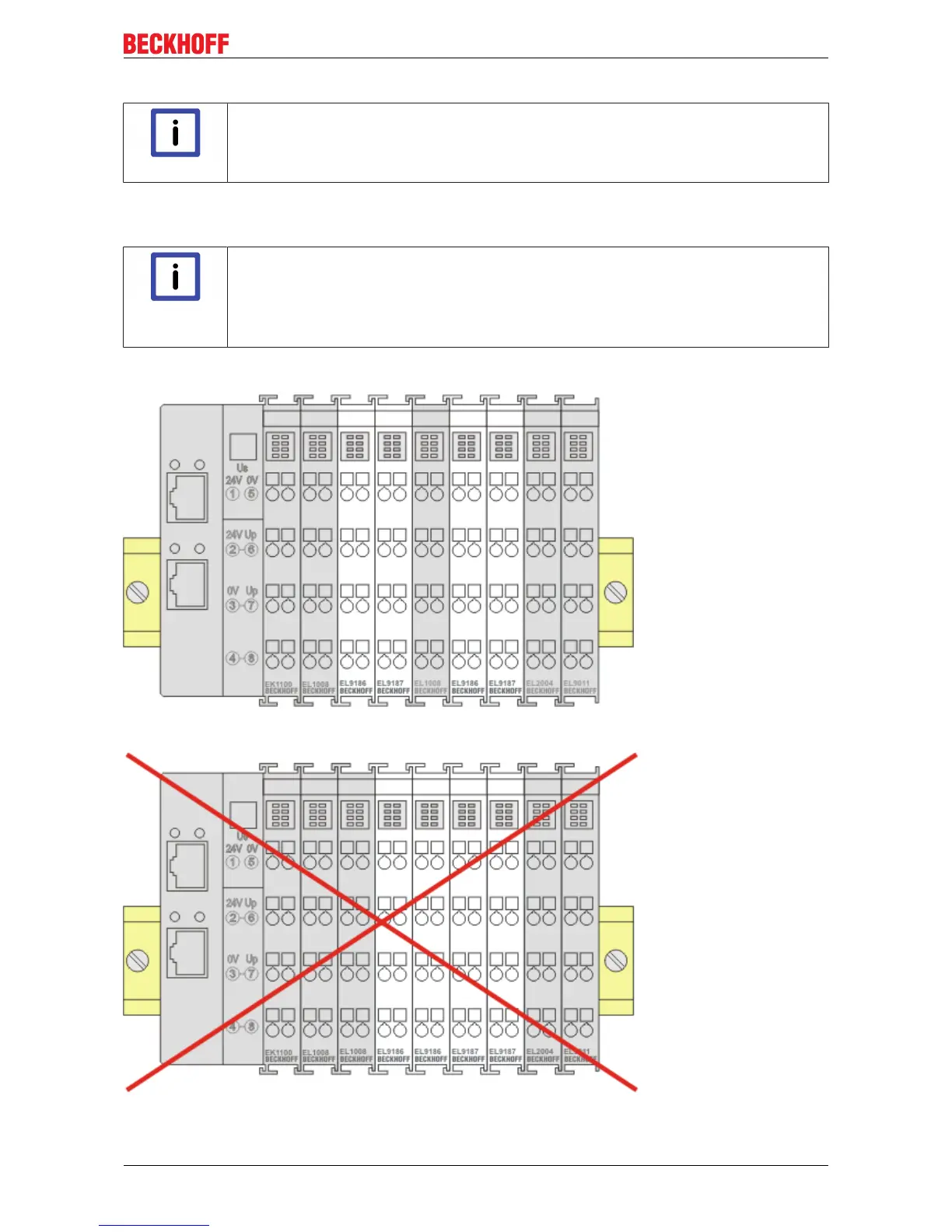

Examples for mounting passive terminals (highlighted)
Fig.26: Correct configuration
Fig.27: Incorrect configuration
EL72x1-0010 35Version: 2.0
