Installation

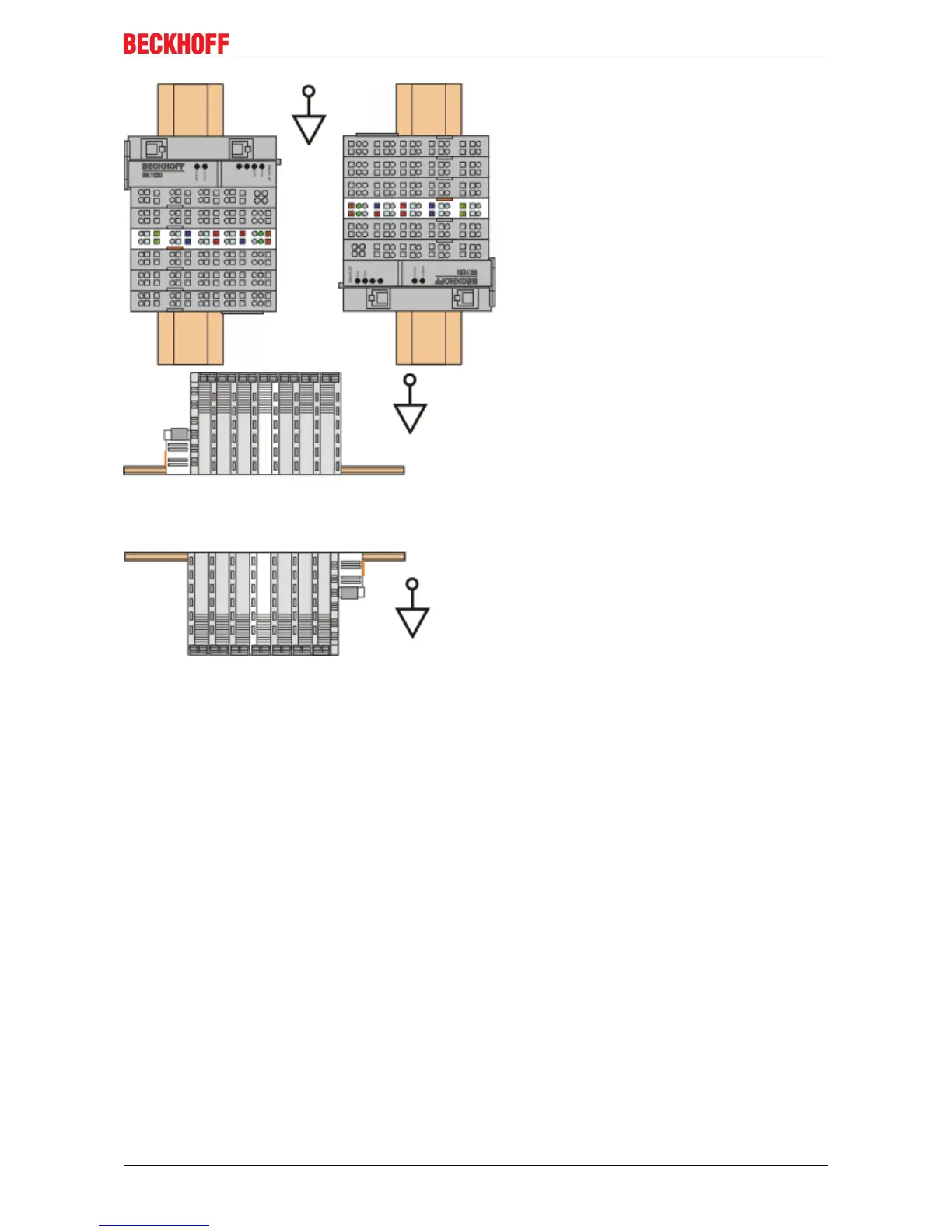

Fig.29: Other installation positions

5.6 Shielding concept

Together with the shield busbar, the prefabricated cables from Beckhoff Automation offer optimum protection

against electromagnetic interference.

Connection of the motor cable to the shield busbar

Fasten the shield busbar supports 1 to the DIN rail 2. The DIN rail 2 must be in contact with the metallic rear

wall of the control cabinet over a wide area. Install the shield busbar 3 as shown below.

EL72x1-0010 37Version: 2.0
