BLUM MINIPRESS PRO User Manual

10 BA-102/2EN M54.XXXX

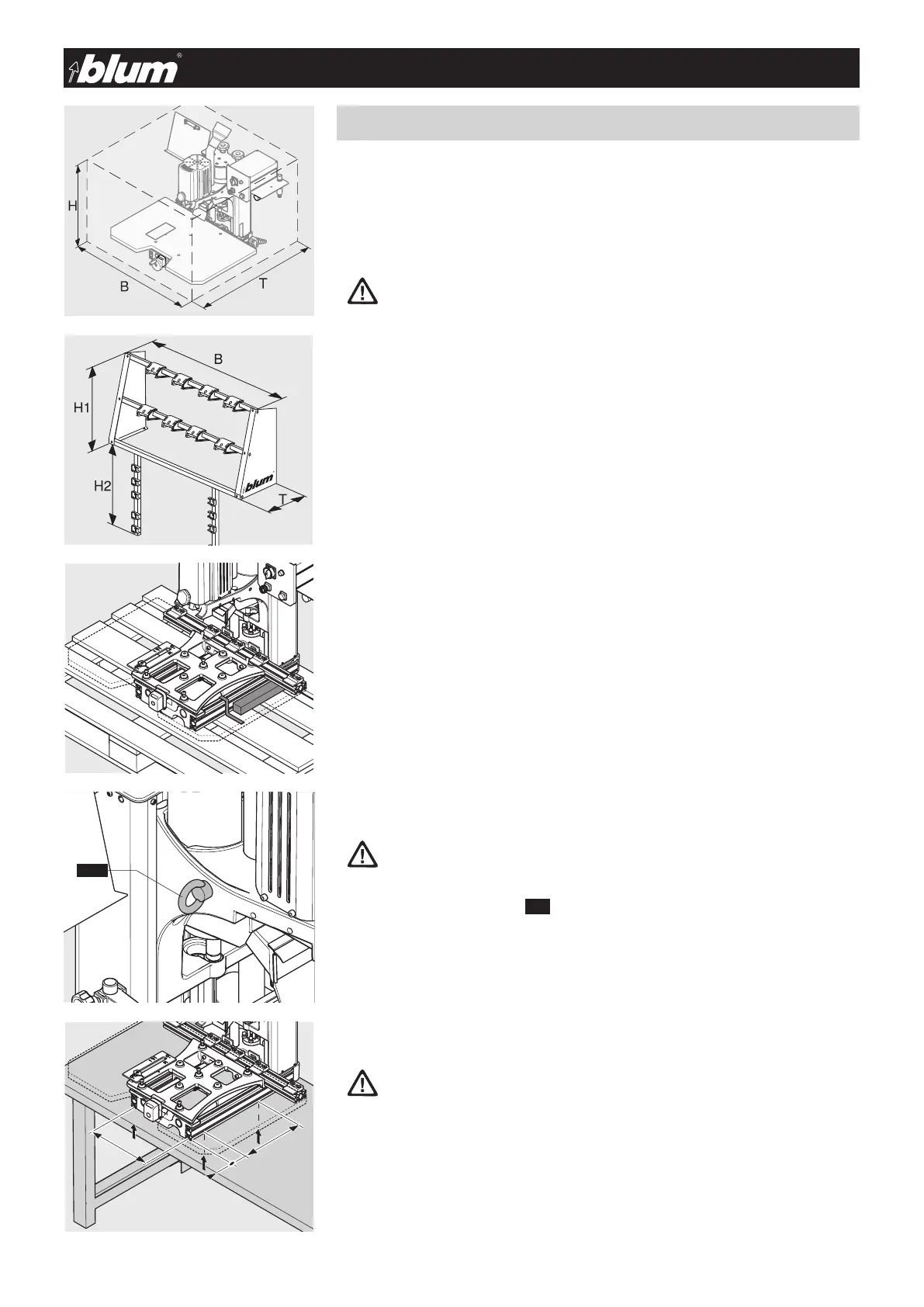

1.1 - Unpacking and assembly
1 - Assembly machine setup
1.1.1) Assembly machine space requirement
H= 863 mm
W= 936 mm
D= 875 mm
1.1.5) Securing assembly machine to a suitable table
• Usealiftingtooltolifttheassemblymachineontothetable
• Recommendedtableheight80-90cm
• Secureassemblymachineusingenclosedscrews(drillingrequired).
(4x DIN 912 M8x30 + 4x counter plate)
ATTENTION:
The assembly machine weighs approx. 75 kg.
The table should have the proper dimensions
ATTENTION:
The centre of gravity for the assembly machine is in the back
1.1.2) Space requirement of drilling head and ruler storage rack (optional)
Part number: MZA.2600
H1= 613 mm
H2= 600 mm
W= 1,282 mm
D= 350 mm
1.1.3) Unpacking assembly machine
• Removebox
• Removefixingcomponents
1.1.4) Use lifting machine to place machine on table
ATTENTION:
Machine must be lifted using a crane.
Do not hold or lift machine using the motor hood.
• Liftmachinebytheringeyes(1.6) using a lifting tool
• Donotsetuporstoreassemblymachineinamoistenvironment.Thespaceshould
be dry.
• Theworkplacemusthaveproperillumination.




1.6
