BLUM MINIPRESS PRO User Manual

17 BA-102/2EN M54.XXXX

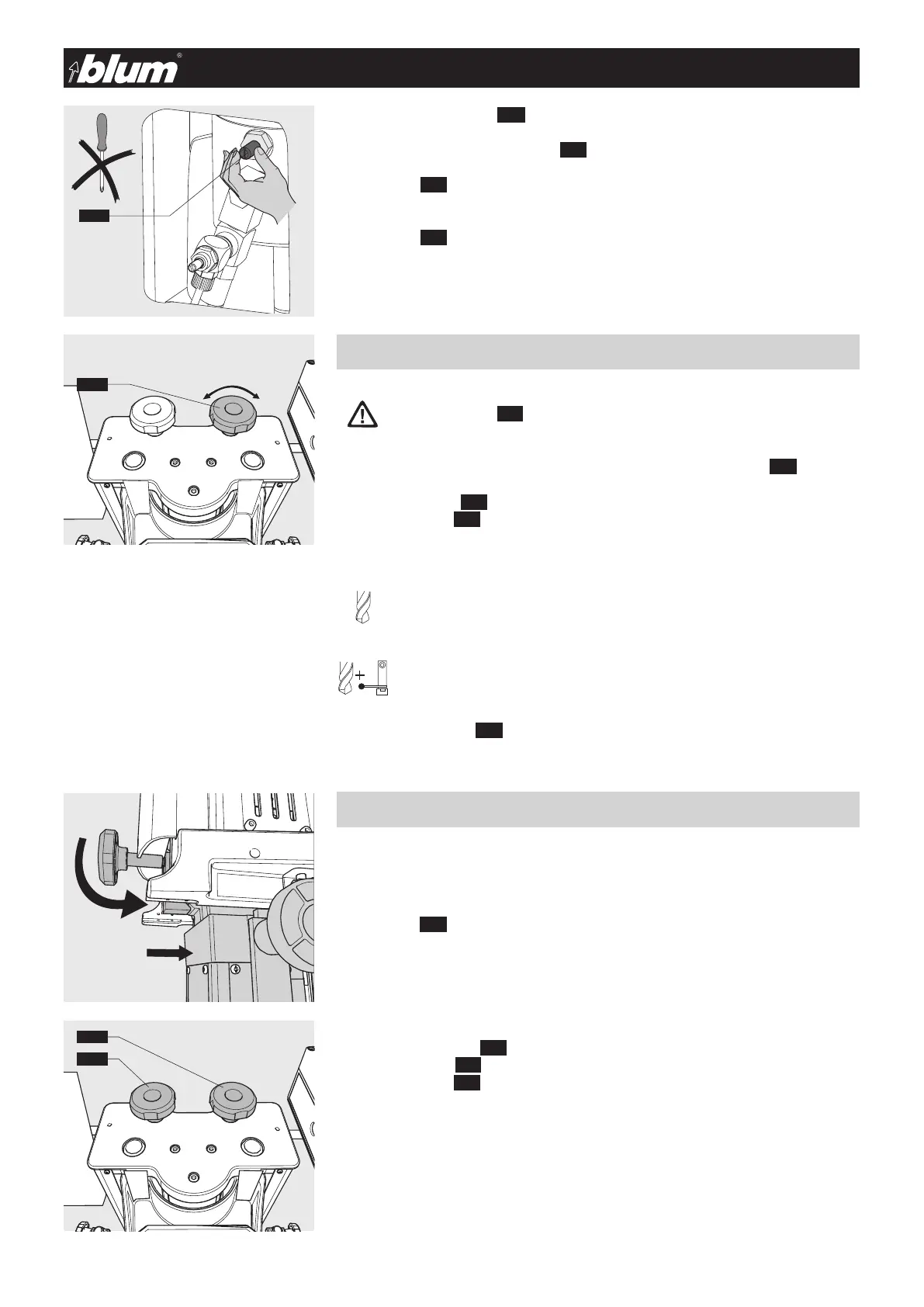

3 - How to operate the machine
3.5.3) Setting cam brake (3.7)
The brake is set by turning the screw (3.7) on the cylinder.
• Turnscrew(3.7) to the right:
slows down the drill bit
• Turnscrew(3.7) to the left:
speeds up the drill bit
3.6.1) “Drilling” and/or “Drilling and inserting fittings” mode switch (3.6)
• Pressfeedswitch(2.2)
• Setmodeswitch(3.6) to the desired setting
3.7.1) Assembly of furniture hinges, furniture connectors, METABOX and
TANDEMBOX front fixing brackets
• Insertthegearbox(seepoint3.1.1)
• Insertruler(8.2)
• Setworktop
• Setholddownclamp(3.3) (see point 3.3.1)
• Setdrillingdepth(3.4) (see point 3.4.1)
• Setmodeswitch(3.6) to “Drilling and insertion”
(see point 3.6.1)
3.6 - Setting operating mode
Pos. A - Drilling
The return stroke of the assembly machine is limited.
Pos. B - Drilling and/or inserting fittings
The vertical drilling unit uses a full stroke.
3.7 - Drilling and inserting fittings
Important:
Particular care must be taken when working on sections that jut out
over the work top. Use extensions.
ATTENTION:
Set main switch (2.1) to Pos. 0
• Releasefeedswitch(2.2)
3.6
!
3.7
3.6
3.4
