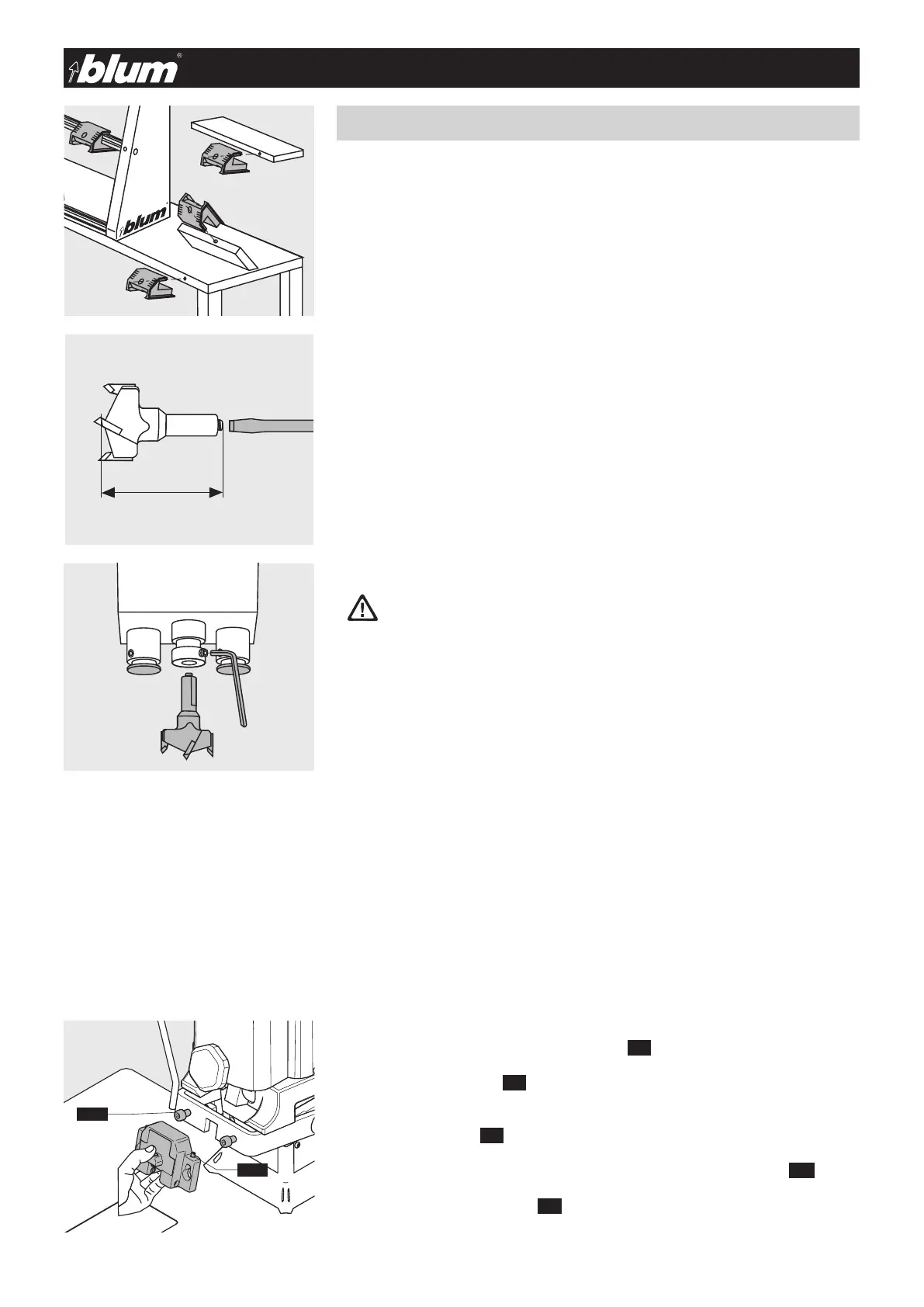

7.1 - General
7 - drilling heads
7.1.1) Attaching drilling heads
• Attachdrillingheadholdertoawall,tableorthestoragerack.
The storage rack is available from Blum as an accessory. (MZA.2600)
IMPORTANT:
The total length of the drill bits (from bit-tip to adjustment screw) should
be x = 57 mm.
7.1.2) Setting drill bit length
Adjustment:
• Setlengthbyturningthedrillbitadjustmentscrewusingascrewdriver.
7.1.4) Attaching insertion ram to the swing arm
• Placeinsertionramontothetwofixingscrews(7.1) on the swing arm
• Tightenthefixingscrews(7.1) so that the insertion ram is secure
Setting insertion ram position:
• Loosenfixingscrews(7.1)
• Correctthepositionoftheinsertionrambysettingtheadjustmentscrews(7.2)
• Looselyretightenfixingscrews(7.1)
7.1.3) Inserting drill bits into the chuck
ATTENTION:
Before changing drill bits, remove the drilling head from the machine.
• Loosenthefixingscrewusingahexwrench.
• Pushdrillbitsintothechuck(Thesurfaceofthedrillshaftmustbeplacedinthe
direction of the fixing screw)
• Retightenfixingscrew
IMPORTANT:
Insert cover caps into the unused bits. This will keep the bits clean and
prevent the fixing screws from coming out on their own.

7.1
7.2
!
!
