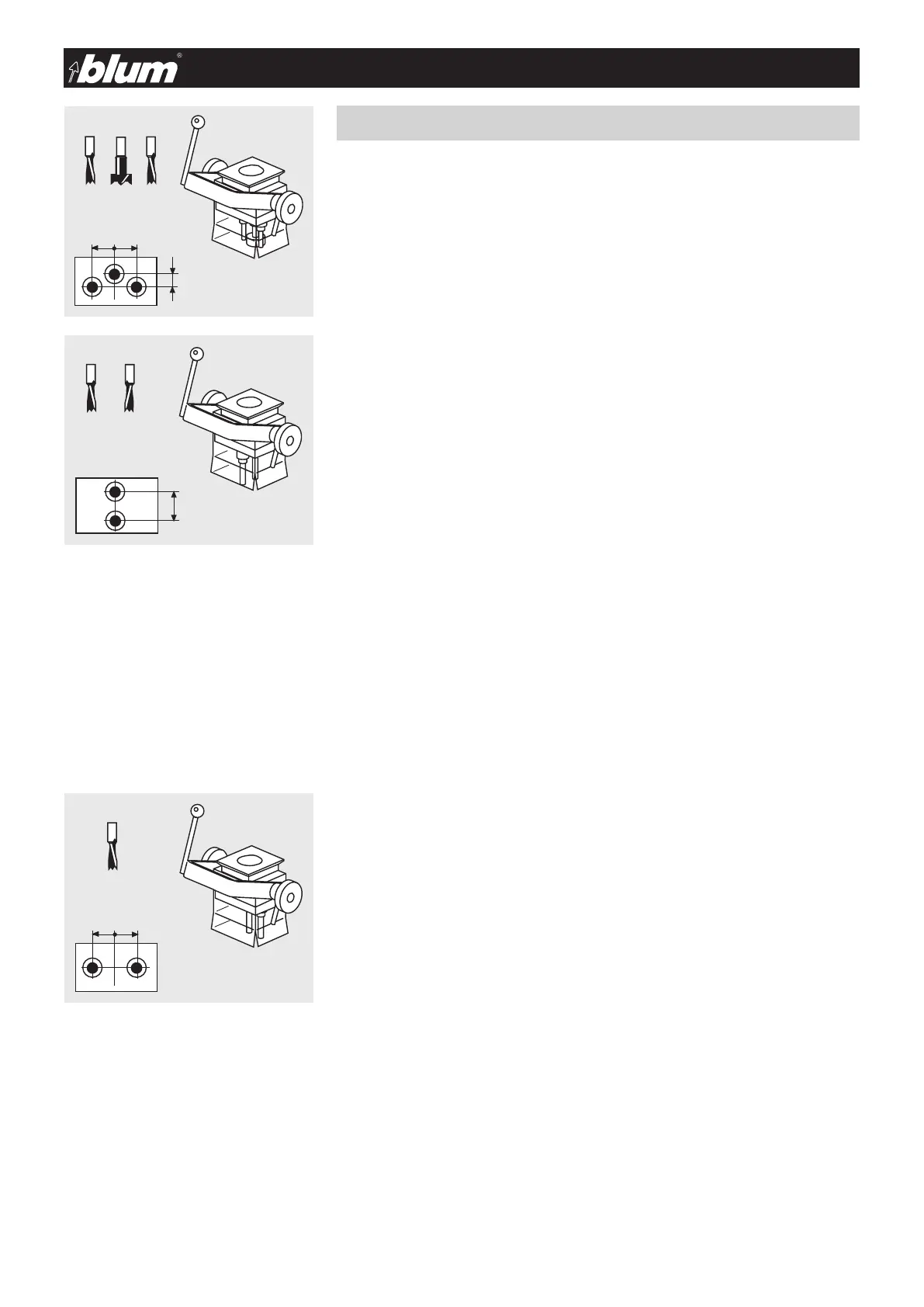

7.2 - drilling heads
7 - drilling heads
7.2.1) FH drilling head: MZK.2000
Furniture hinge drilling head for standard hinges
• Drillingheadwith3spindles
• Withdrillingdepthspacing
• Swingarmforramattachment
• Drillbits:
(A) ... 2x Ø 8 mm left hand / (B) ... 1x Ø 35 mm right hand
• Colourcodedbits:
left hand are red, right hand are black
• Colourcodedbits:
left hand = red
right hand = black
Note:
Use slip-on countersink for the Ø 10mm drill.
7.2.2) MPH drilling and insertion head: MZK.2100
for horizontal dowel plates and furniture connectors
• Drillingheadwith2spindles
• Swingarmforramattachment
• Drillbits:
(A) ... 1x Ø 10 mm left hand
(B) ... 1x Ø 10 mm right hand
or
(B) ... 1x Ø 25 mm right hand
7.2.3) MPV drilling and insertion head: MZK.2110
for cruciform mounting plates and furniture connectors
• Drillingheadwith2spindles
• Swingarmforramattachment
• Drillbits:
(A) ... 2x Ø 5 mm, left hand or
(A) ... 2x Ø 10 mm left hand
Note:
Use slip-on countersink for the Ø 10mm drill.
• Colourcodedbits:lefthandarered/righthandareblack



























!
!
