8 - Rulers

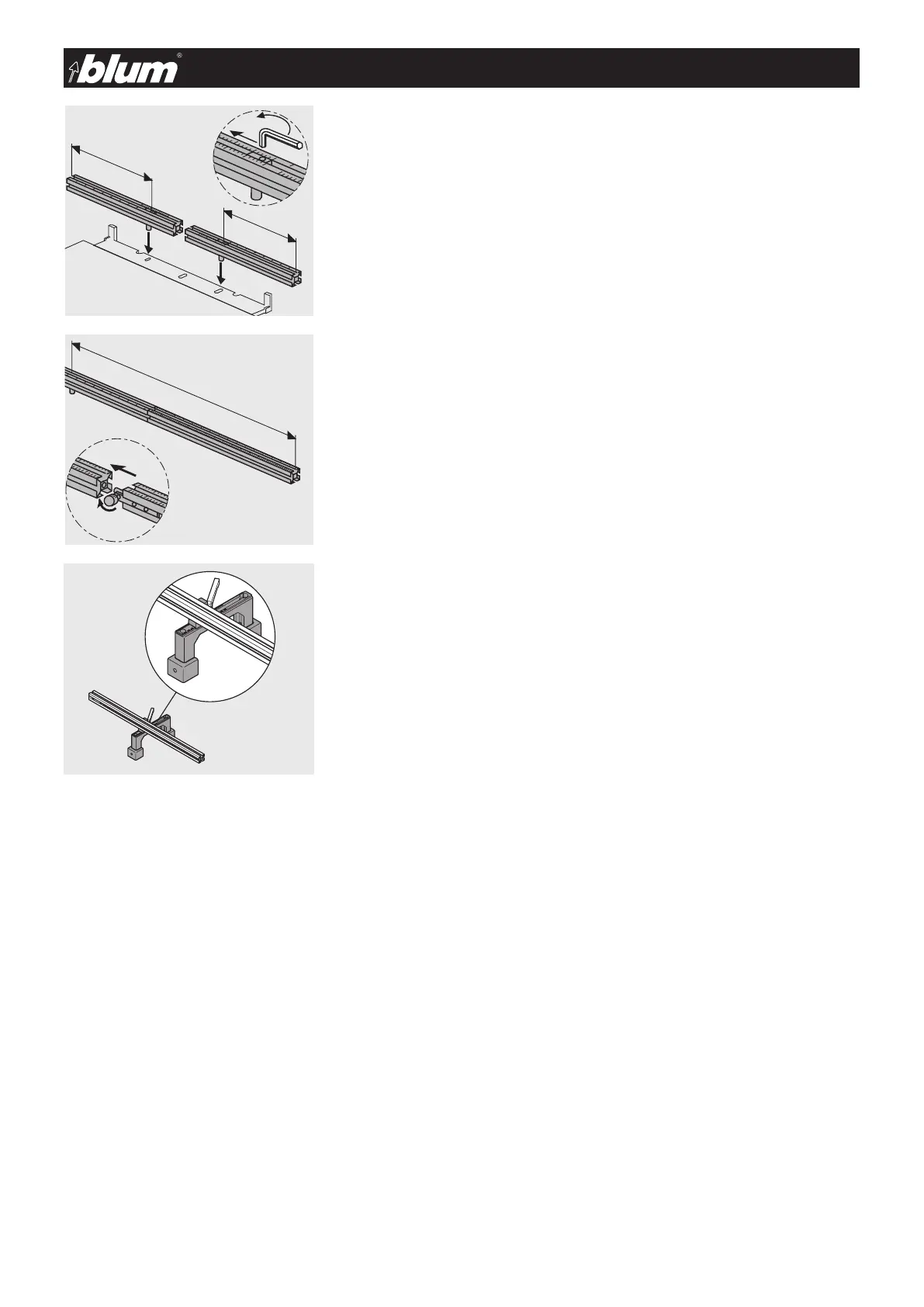

8.2.3) LD ruler: MZL.2080 line drilling ruler
• two-piece
• Calibrationpersideis850mm
• Theruler0pointisoneachoutsidespindleoftheSYVdrillinghead
• 0pointsetting
To set the first drilling, e.g. to 8 mm, the 0 point must be set to 8 mm. The stop settings
do not need to be changed.
Adjustment:
• Loosentheclampingknobwithahexkeyandsettheparttothedesireddimension.
• Retightenclampingknob.
8.2.4) E ruler: MZL.2090 extension ruler
• Calibrationfrom851-2550
Assembly:
• Slideextensionrulerontotheruleronthemachine
• Clampwiththeclampingknob
8.2.5) Ruler supports: MZV.2100 for extension ruler
• Attachtherulersupportstothetableattheoutsidethirdoftheextensionruler.
• Beforesettingtheworktop,loosentheclampingleverontherulersupport.Then
retighten.
Important:
Support the extension ruler using ruler supports.
Important:
Make sure that the calibration on the ruler support corresponds to the
one on the work top of the MINIPRESS PRO. Pay attention to the adjust-
ment area of the work top.



!
!
