BLUM MINIPRESS PRO User Manual

13 BA-102/2EN M54.XXXX
1 - Assembly machine setup
1.4 - Dust extraction

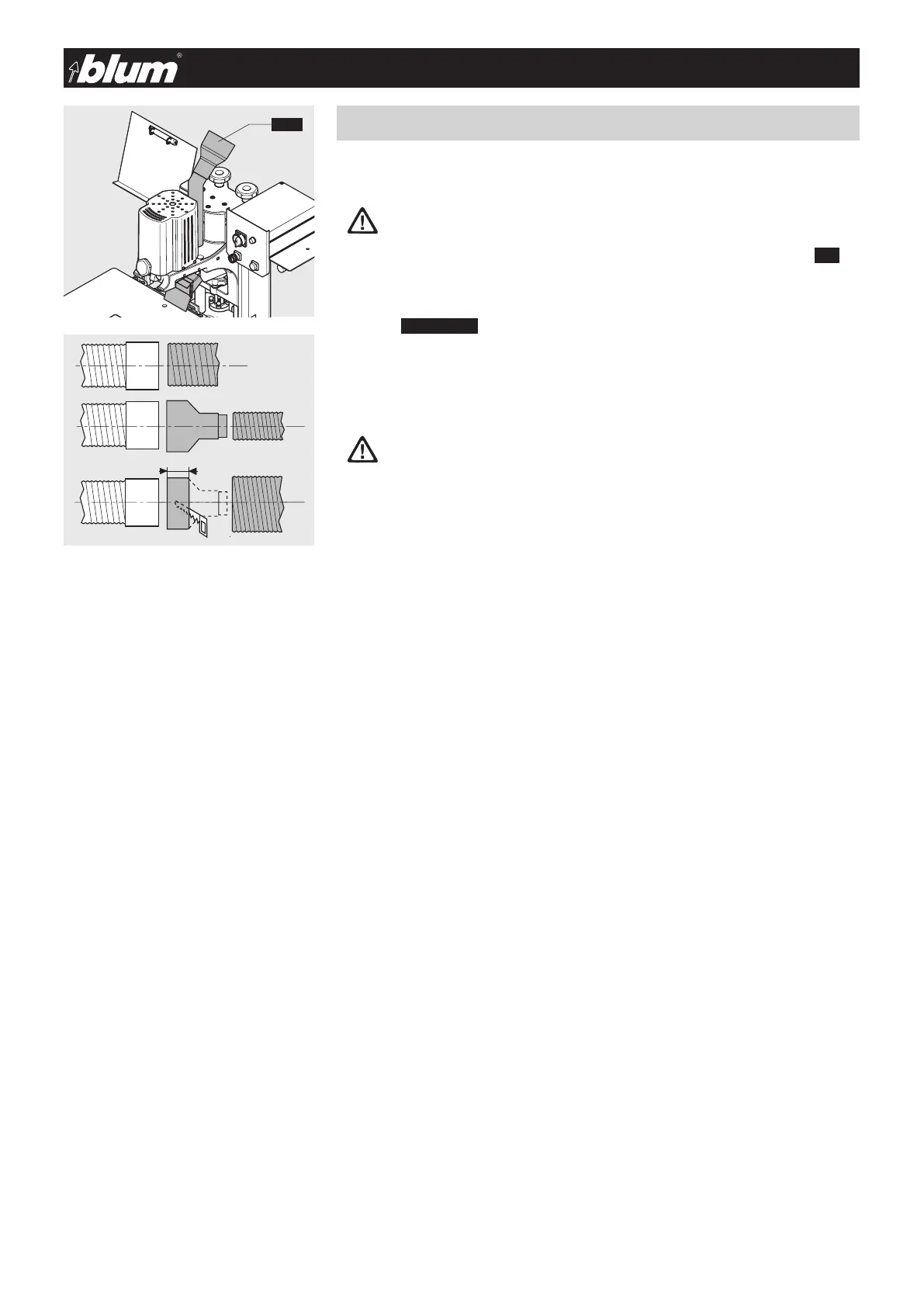

1.4.1) Connecting extraction system to the assembly machine
ATTENTION:
The machine must be connected to a dust extraction system!
• Insertthespiralhosewithaninsidediameterof50mmintothereceivingtube(1.4)
and fix it
• Makesurethattheaverageairvelocityfortheextractionsystemisatleast20m/sec.
• Ifthereisnoextractionsystemconnectorwithadiameterof50mm,thesupplied
adapter (image 1.4.2) can be used. For connection, make sure that a minimum air
velocity of 20 m/sec is provided at the cross-section of the 50 mm hose.
1.4.2) Attaching the extraction system with the controller
ATTENTION:
The electrical connection must be performed by a qualified electrician.
1.4



