7 - drilling heads

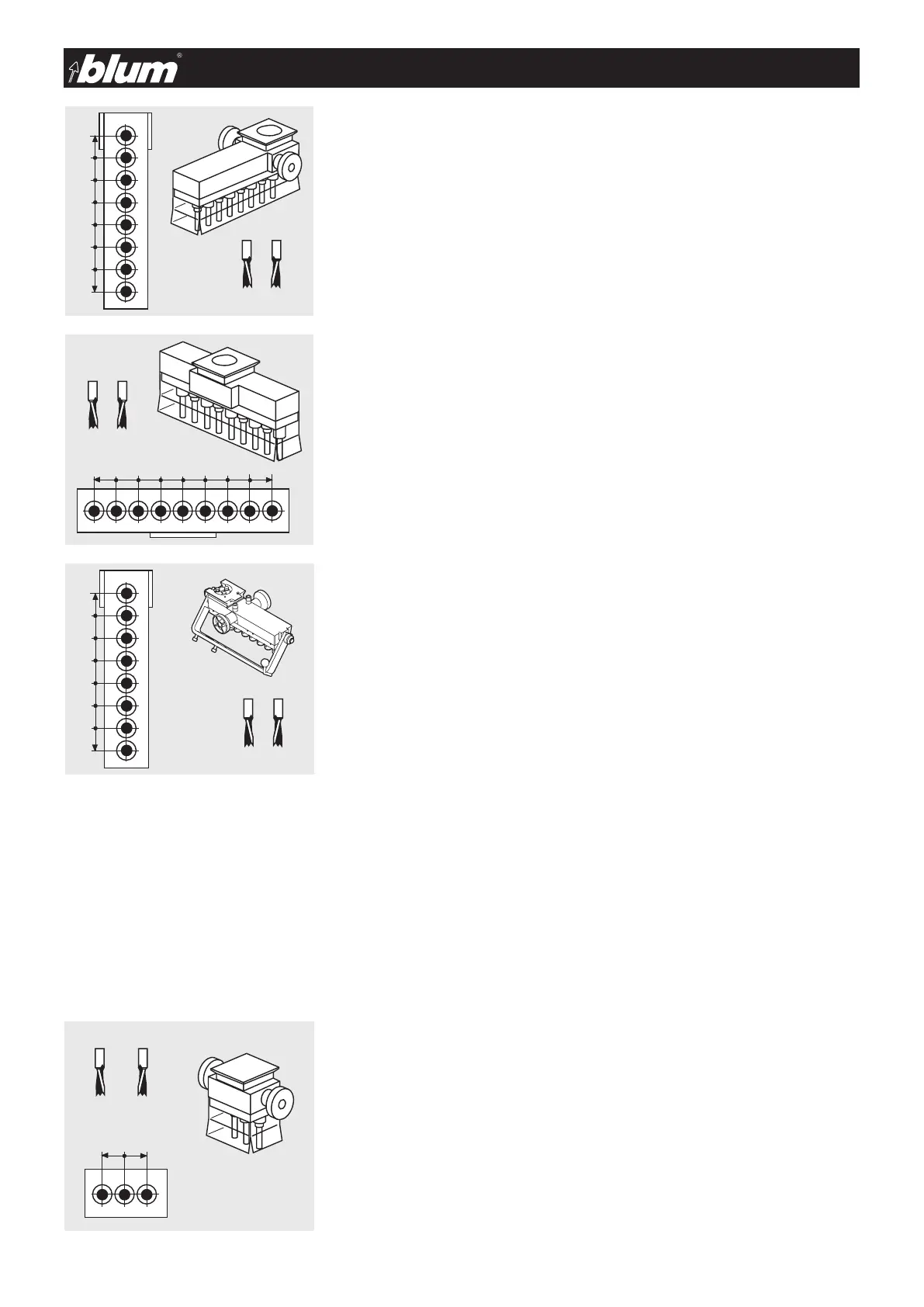

7.2.4) SYH drilling head: MZK.2200.01
for all Blum cabinet profiles
• Drillingheadwith8spindles
• Drillbits:
(A) ... 4x Ø 5 mm left hand
(B) ... 4x Ø 5 mm right hand
• Colourcodedbits:
left hand = red
right hand = black
7.2.5) SYV drilling head: MZK.2800
for hole groups and system drilling
• Drillingheadwith9spindles
• Drillbits:
(A) ... 4x Ø 5 mm left hand
(B) ... 5x Ø 5 mm right hand
• Colourcodedbits
left hand = red
right hand = black
7.2.6) BOX drilling head: MZK.2230
for all TANDEMBOX and METABOX front fixing brackets and
back fixing positions
• Theextractionsystemshouldberemovedbeforeattachingthedrillinghead
• Drillingheadwith8spindles
• Withdrillingdepthspacing
• Swingarmforramattachment
• DrillbitforMETABOX:
(A) ... 1x Ø 10 mm left hand
(B) ... 4x Ø 10 mm right hand
• DrillbitforTANDEMBOX:
(A) ... 3x Ø 10 mm left hand
(B) ... 1x Ø 10 mm right hand
• Colourcodedbits
left hand = red
right hand = black
7.2.7) D drilling head: MZK.2400
for wooden dowel connections
• Drillingheadwith3spindles
• Drillbits:
(A) ... 2x Ø 8 mm left hand
(B) ... 1x Ø 8 mm right hand
or
(A) ... 2x Ø 10 mm left hand
(B) ... 1x Ø 10 mm right hand
• Colourcodedbits
left hand = red
right hand = black
 




 


       




























 


 

















