H60 Heated Humidifier User Manual V2.0
4 / 21
CAUTION!
• When the main device delivers air and the humidity setting is adjusted, if the indicator
lights of the humidifier do not light up, it may be that the humidifier and main device are not
connected correctly.
4.1.2 Separating the Humidifier from the Main Device

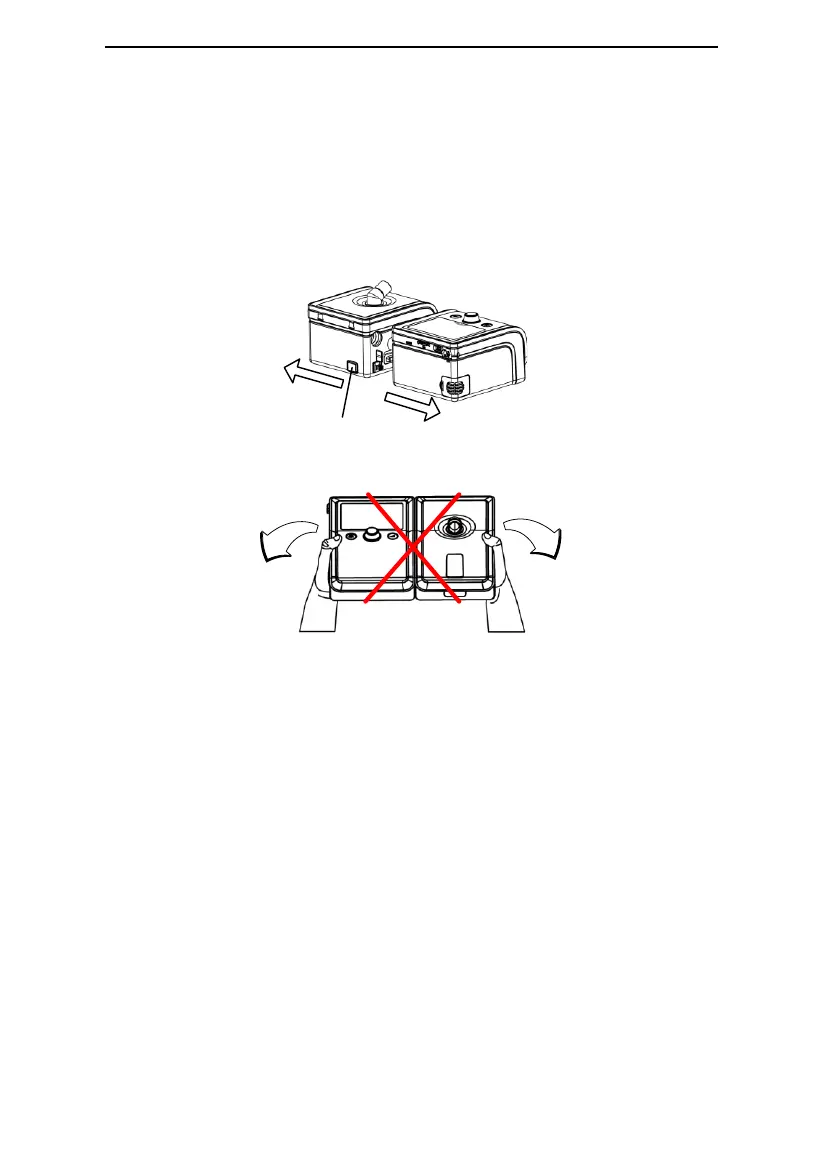

Press the Humidifier Separation Button on the humidifier and, at the same time, pull the
humidifier and main device apart in opposite horizontal directions, as shown in Fig. 4-3.
Humidifier Separation Button
Fig. 4-3
Fig. 4-4
CAUTIONS!
• Do not move the connected unit upwards or downwards while pulling the devices apart
(see Fig. 4-4). It could cause damage to the devices.
• Place the shield back on the main device when the humidifier is not in use.
4.2 Filling the Water Chamber
4.2.1 Removing the Water Chamber
Press the Humidifier Uncover Button to open the top cover. Hold the front center of the
humidifier with your thumb and index finger, and pull the chamber out of the humidifier, as
shown in the figure below.
To Next Page
