H60 Heated Humidifier User Manual V2.0
11 / 21
(dip the soft cloth in washing liquid if necessary), rinse them throughly, and then wipe them
dry with a soft cloth.

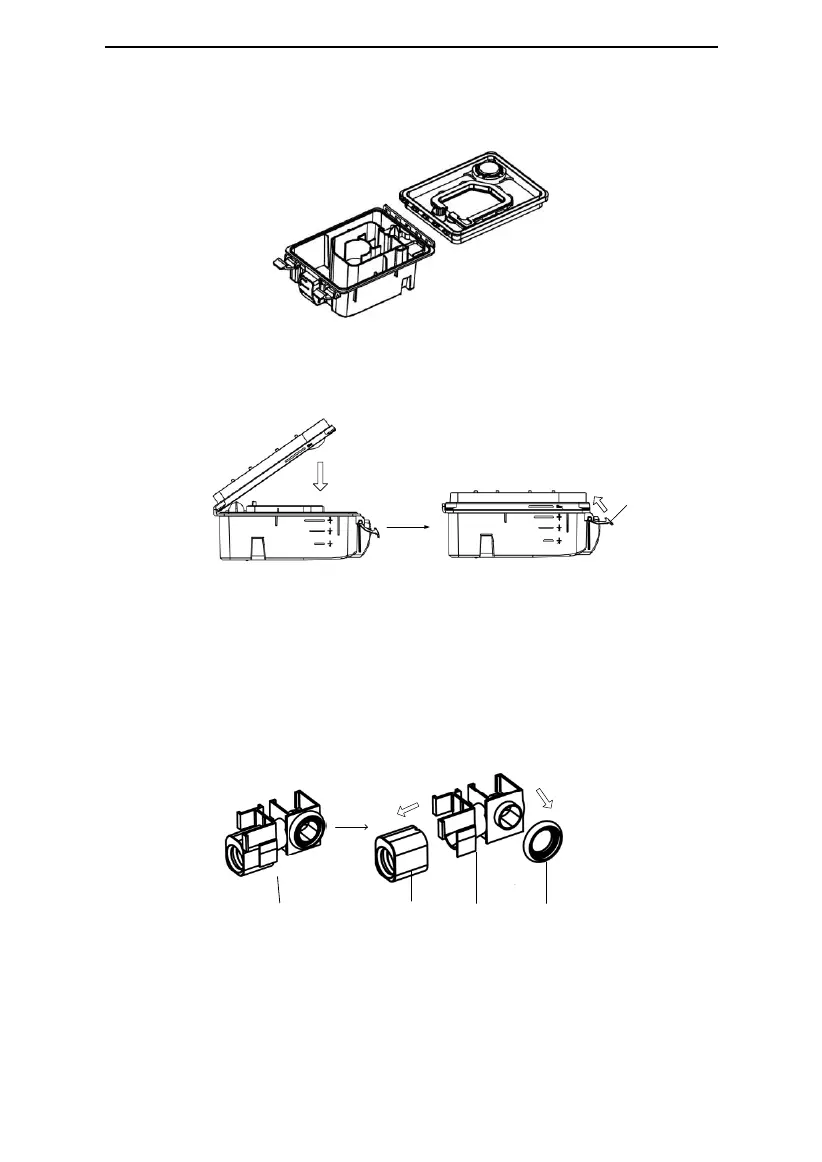

Fig. 5-5
(3) Assembling the Water Chamber: Place the two parts of the water chamber together as
shown in Fig. 5-6. Press hard until they click into place.
Fig. 5-6
5.5 Cleaning the Air-intake Assembly
First remove the sealing elements from the air-intake assembly, and then clean the air intake
and sealing elements seperately with running water, as shown in the figure below. They can
also be cleaned with a soft cloth (dip the soft cloth in mild scrubbing solutions if necessary),
and then rinsed thoroughly. Wipe the air intake with soft cloth, and allow the sealing
elements to air dry.
Air-intake Assembly
Air Intake
Sealing Element
Sealing Element
Fig. 5-7
5.6 Cleaning the Top Cover and Main Body of the
Humidifier
Clean the top cover and main body of the humidifier seperately with running water, as shown
in the figure below. They can also be cleaned with a soft cloth which does not scratch the
To Next Page
