Clutch
Check clutch function
Pull back the clutch lever.
Pressure point must be clearly
perceptible.
If no clear pressure point can be
felt:
Have the clutch checked by an
authorized workshop, preferably
an authorized BMW Motorrad
retailer.

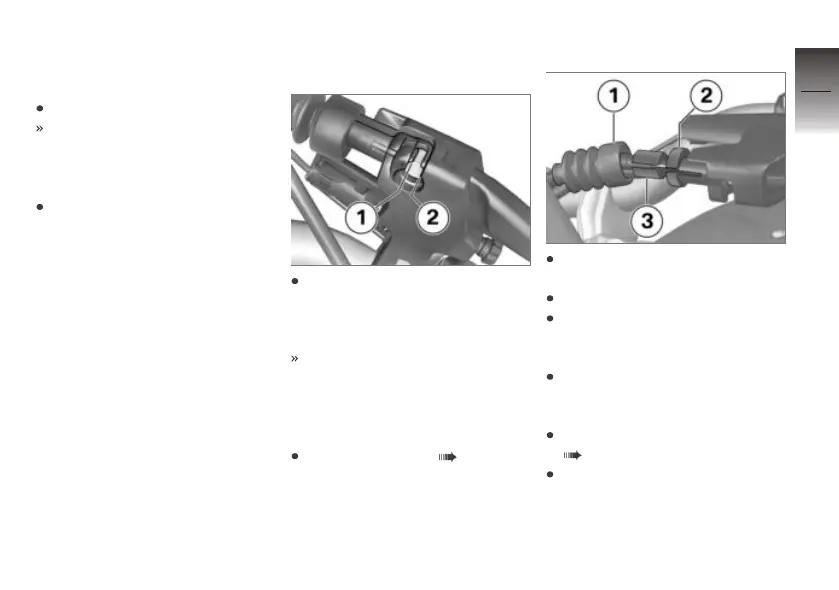

Check clutch pedal free
play
Actuate the clutch lever un-
til resistance can be felt. Ob-
serve cut-out between edges 1
and 2 in the handlebar fitting.
The inner edge of cable
mount 1 should move to outer
edge 2 of the handlebar fitting.
If clutch pedal free play is outside
tolerance:
Adjust clutch play ( 99).
Adjusting clutch play
Slide rubber grommet 1 to the
side.
Loosen the nut 2.
To increase clutch play: turn
adjusting screw 3 into handle-
bar fitting.
To decrease clutch play: turn
adjusting screw 3 out of han-
dlebar fitting.
Check clutch pedal free play
( 99).
Tighten nut 2 while holding
adjusting screw 3 to ensure
that it does not move out of
position.
9
99
z
Maintenance
