Fairings and panels

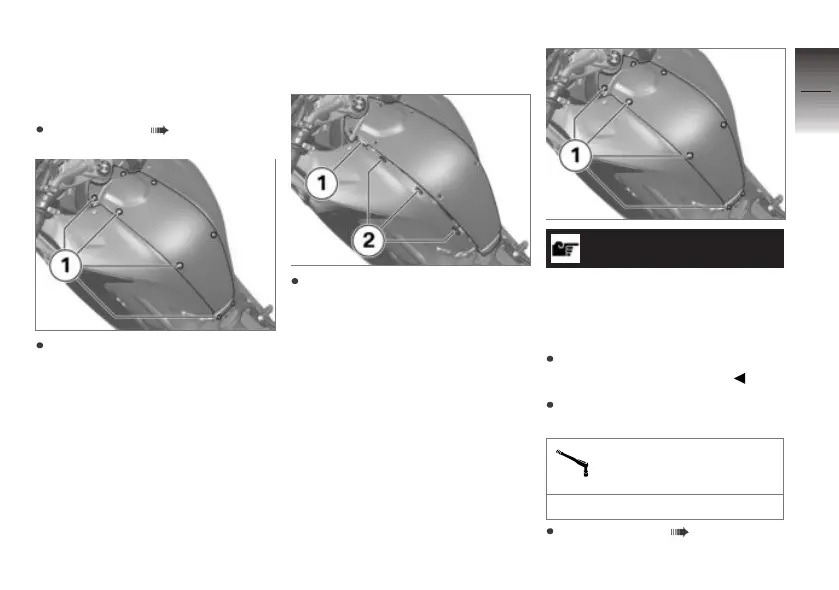

Removing center fairing
panel
Remove seat ( 52).
Remove four screws 1 on left
and right and take off center
fairing panel.
Installing center fairing
panel
Slide center fairing panel at
left and right under fairing side
panels at position 1 and then
insert in guides 2 on left and
right.
ATTENTION
Installing painted compo-
nents without plastic wash-
ers
Paint damage
Fit the plastic washers under
the heads of the screws.
Install four screws 1 on left and
right.
Fairings
1 lb/ft (2 Nm)
Install the seat ( 52).
9
113
z
Maintenance
