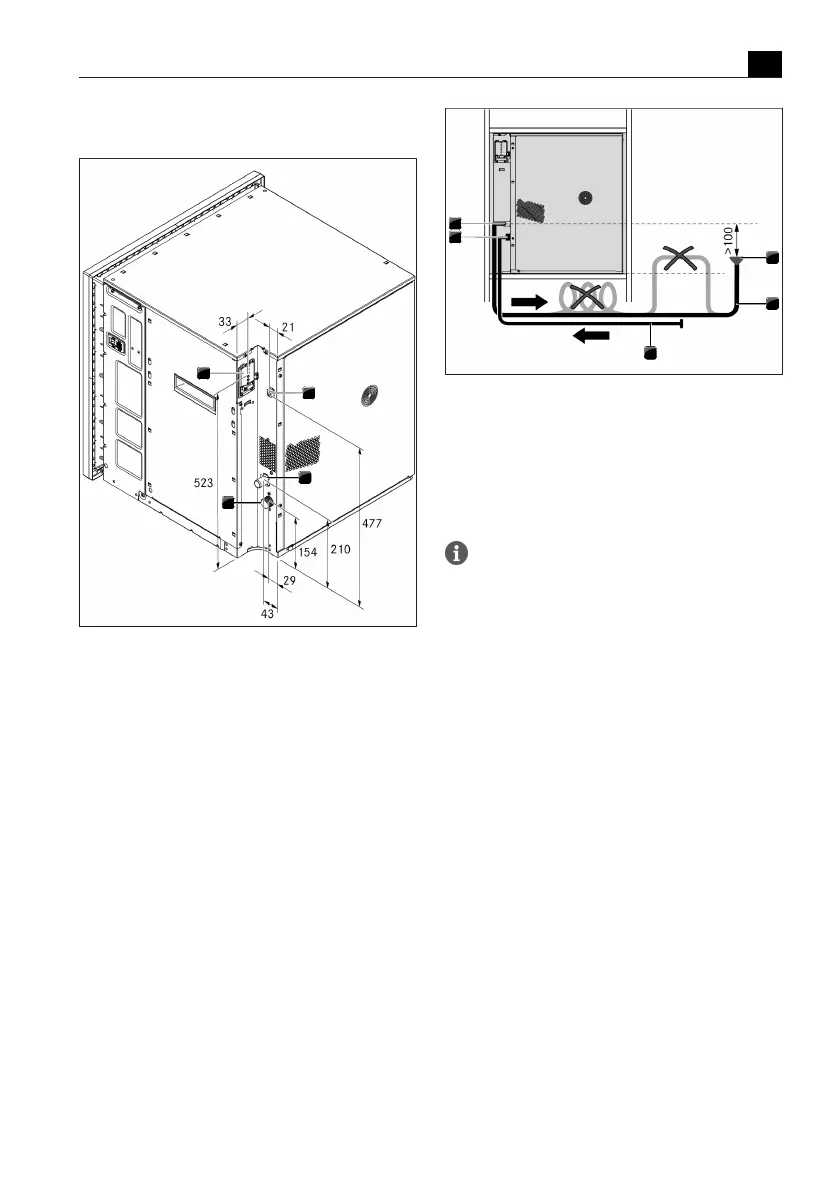

8.6.2 Appliance connections
1
2
3
4
Fig.8.10
Appliance connections
[1]
Power supply
[2]
RJ45 connection for BORA multi-drawer (no mains
connection)
[3]
Waste water connection
[4]
Fresh water connection
8.6.3 Water drainage
T The waste water siphon must be installed at least
100mm below the waste water connection.
T The waste water hose must not be installed above
the bottom edge of the appliance.
1
2
3
4
5
Fig.8.11
Water drainage
[1]
Waste water siphon
[2]
Water outlet hose
[3]
Water supply hose
[4]
Fresh water connection
[5]
Waste water connection
If the waste water trap is not installed at least
100mm lower than the waste water connection,
the installation set XBOMSU (hook) must be used.
In doing so, it must be ensured that the waste
water siphon is installed at least 100 mm lower
than the waste water hose in the fitted hook.
u Attach the hook to the side of the appliance by fitting
the screw provided through the bore hole.
u Lay the water outlet hose from the waste water
connection so that it goes up over the hook and then
back down.
