Page 17
Lift Installation Instructions
3

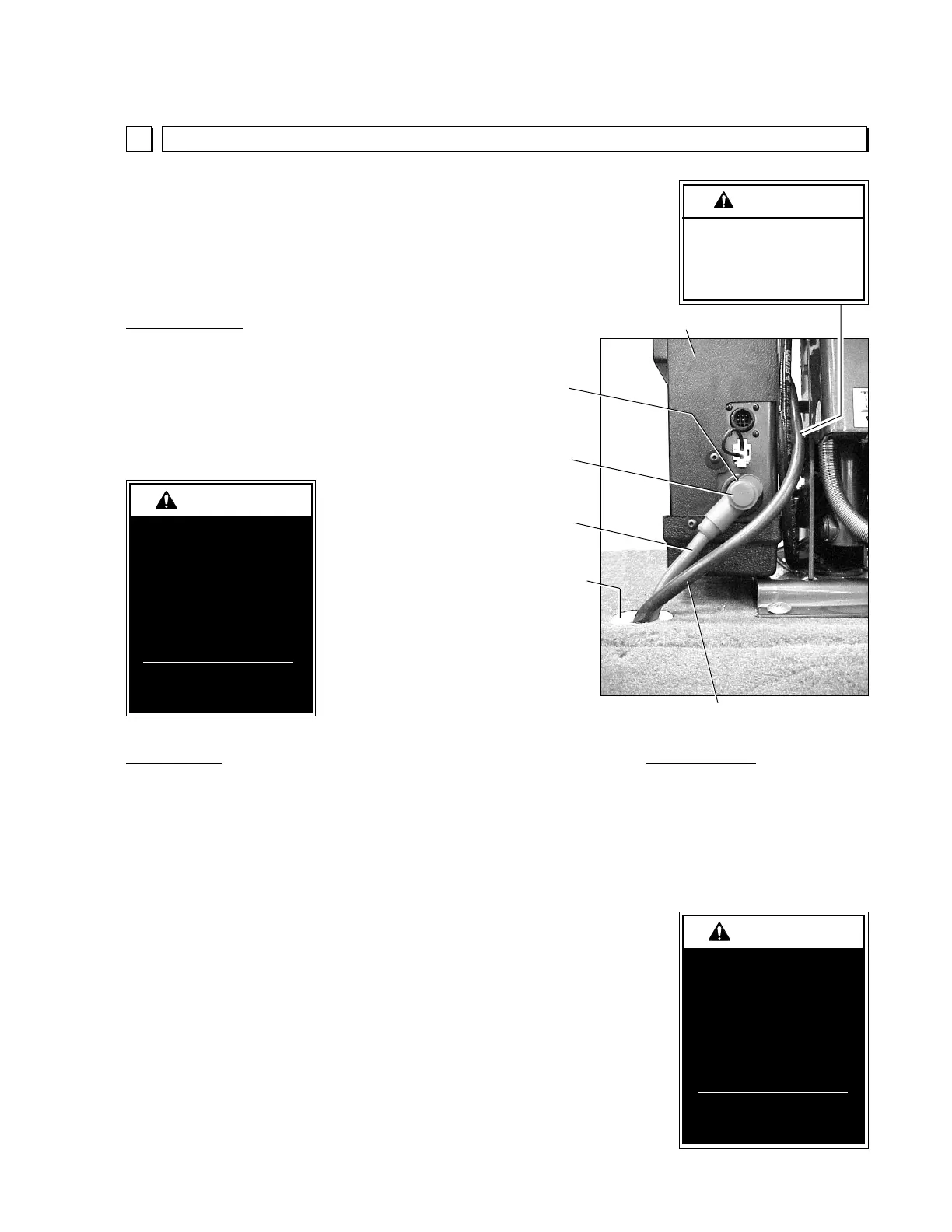

Power Cable and Ground Cable Installation
Red
Rubber
Boot
Power
Feed Stud
(under boot)
Power
Cable
Floor
Grommet
Pump Module
CAUTION
Position and secure
ground cable clear
of lift operation.
Check for obstruc-
tions such as gas
lines, wires, exhaust,
etc. before drilling or
cutting. Failure to do
so may result in
serious bodily injury
and/or property
damage.
W
A
RNING
Route power cable
clear of exhaust
system, other hot
areas and moving
parts. Failure to do
so may result in
serious bodily injury
and/or property
damage.
W
A
RNING
Ground Cable
Millennium pump modules feature a pump-
mounted ground cable and an external stud for
connection of the lift power cable. A 1" I.D. plastic
grommet is provided for the power cable and
ground cable access hole. Install grommet,
ground cable and power cable as outlined.
Floor Grommet:
Note below-floor obstructions. Check under the
vehicle to determine where the optimum through-
floor access is available with minimum obstruc-
tions. The recommended grommet location is
through the floor (pump side) approximately two to
three inches from the pump module as shown.
Use the 1-1/8"
diameter hole
saw to drill the
grommet access
hole. Insert the
grommet in the
hole. Use two
self-tap screws
to secure the
plastic grommet.
Power Cable:
A red rubber boot is supplied in the
installation package to insulate the
power cable connection. Slip the
boot onto the power cable end
(with terminal). Remove the 3/8"
hex nut and star washer from the
external power feed stud. Place
the power cable terminal onto the
stud and secure with the star
washer and nut. Tighten se-
curely. Position the rubber boot
over the cable end as shown in
the above photo.
Locate the vehicle battery pack.
Route the 37' power cable
through the grommet to the
battery location. Route the power
cable through an existing vehicle
access hole at the battery pack
location. Route power cable
clear of exhaust, other hot
areas and moving parts.
Cut the lift cable to the necessary
length, (it must reach to within
24" of the battery). Strip 1/2" of
insulation from the cable end and
crimp the 1/4" diameter terminal
onto the cable securely. The
power cable will be connected to
the Circuit Sentry (details on
pages 20 and 21).
Note: Route, cut to length and
connect the power cable before
securing the cable to the vehicle.
Secure all cables using cable ties
and/or cable clips (mount clips
with self-tap screws).
Ground Cables
Two ground cables are provided
with each lift. See Lift Ground
on pages 18 and 19 for details.
