Page 26
7
Lift Installation Instructions
Warnings and Lift
Operating Instructions
Decal 27204
Decal Application
W
A
RNING
Affix Warnings and Lift
Operating Instructions decal
27204 and ADA Standee
and Interlock decal 19342 to
the vehicle door in a highly
visible location near the
control box as shown. Two
Courtesy Requested decals
are supplied to be posted on
the vehicle as desired.
Replace any missing, worn
or illegible decals!
9
ADA Standee
and Interlock
Decal 19342
OPERATING
INSTRUCTIONS
19342
Standees must
stand at center of platform (fully inside
yellow boundaries), grip handrails and
lower head to clear door jamb header.
Lift Interlocks
vary in type and operation. Interlock
(if equipped) must be operated as
instructed by transit authority.
Read warnings and operate lift as
outlined on LIFT OPERATING
INSTRUCTIONS decal. Lift operating
instructions apply to wheelchair
passengers and standees.
Standee Instructions:
Interlock Instructions:
Replace missing, worn
or illegible decals.
Failure to do so may
result in serious bodily
injury and/or property
damage.
Platform Angle Adjustment and Floor Level Adjustments
Note: Clean surfaces with
isopropyl alcohol before decal
application. Use a clean cloth
or paper towel. Do not use
oily shop rags. Wipe surface
free of residue with dry
portion of cleaning cloth.
U.S. Patent No. 6,065,924
Patents Pending
W
A
RNING
LIFT OPERATING
INSTRUCTIONS
• Read manual before operating lift.
• Load and unload on level surface
only.
• Engage vehicle parking brake before
operating lift.
• Provide adequate clearance outside
of vehicle to accommodate lift.
• Do not operate lift if you suspect lift
damage, wear or any abnormal
condition.
• Keep operator and bystanders clear
of area in which lift operates.
Whenever a wheelchair passenger
is on the platform, the:
• Passenger must be positioned
fully inside yellow boundaries
• Wheelchair brakes must be locked
• Roll stop(s) must be up
Failure to follow these rules may result
in serious bodily injury and/or property
damage.
OPEN DOOR(S) AND SECURE
TO UNFOLD PLATFORM:
Stand clear and press UNFOLD
switch until platform stops (reaches
floor level).
Note: In event platform does not
unfold, press FOLD switch to
release Lift-Tite™ latches.
TO UNLOAD PASSENGER:
1. Load passenger onto platform and
lock wheelchair brakes.
2. Press DOWN switch until entire
platform reaches ground level and
roll stop unfolds fully.
3. Unlock wheelchair brakes and unload
passenger from platform.
TO LOAD PASSENGER:
1. Load passenger onto platform and
lock wheelchair brakes.
2. Press UP switch to fold roll stop
up and raise platform to floor level.
3. Unlock wheelchair brakes and unload
passenger from platform.
TO FOLD PLATFORM:
Press FOLD switch until platform
stops. Release switch.
CLOSE DOOR(S)
27204
U.S. Patent No. 5,261,779
U.S. Patent No. 5,806,632
Adjust platform
angle and bridge
plate floor level
position as detailed
in this manual
before operating lift
with a passenger.
Failure to do so may
result in serious
bodily injury and/or
property damage.
W
A
RNING
The platform angle and floor
level positioning of the bridge
plate (inboard roll stop) must be
properly adjusted before
operating the lift with a pas-
senger.
Adjust the platform angle as
detailed in Platform Angle Adjust-
ment Instructions on pages 28
and 29.
Adjust the floor level positioning of
the bridge plate as detailed on
pages 30-32.

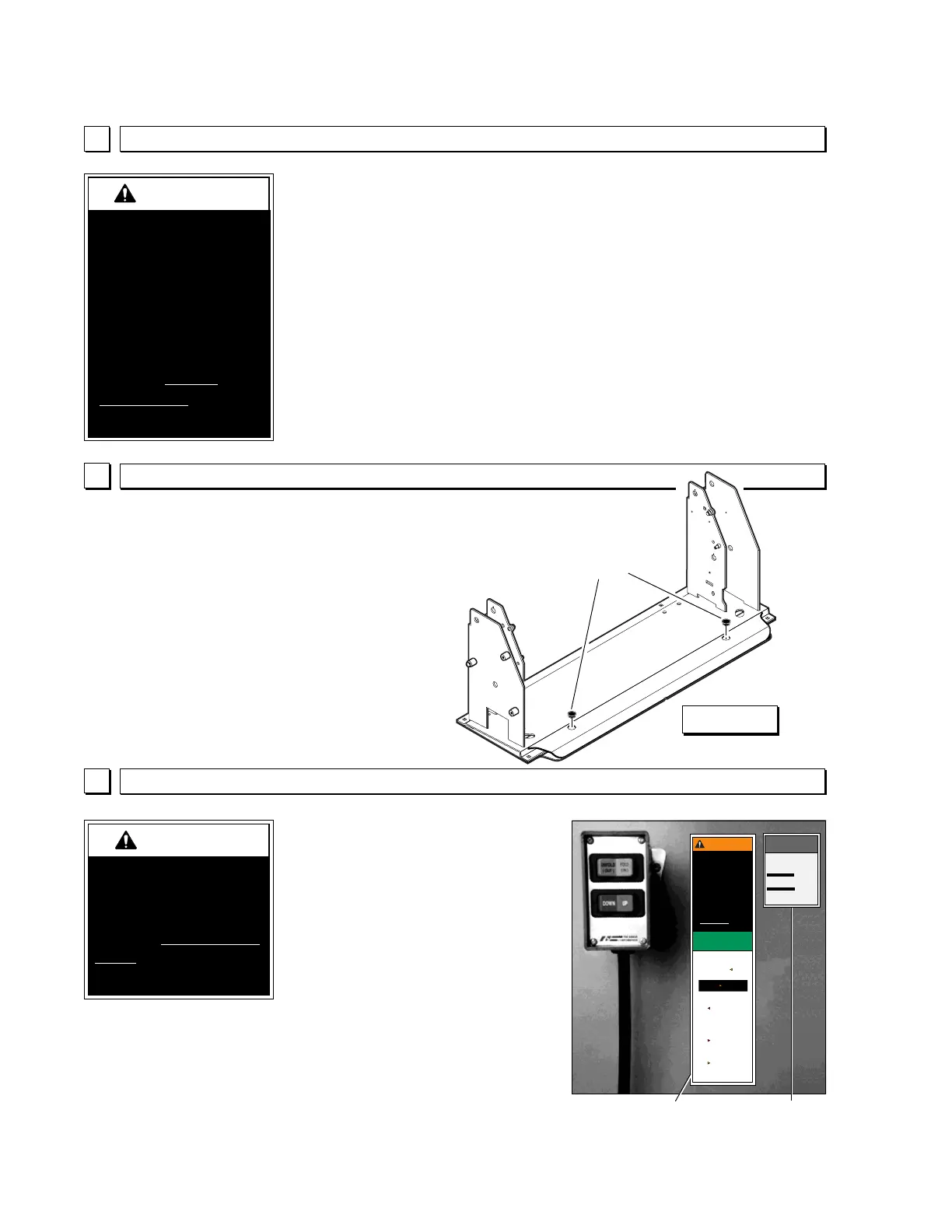

Base Plate Plugs
8
Two plastic plugs (1" I.D. x 1-1/4"
O.D. end caps) are supplied.
Insert one plug in each of the two
inboard base plate mounting
holes as shown in Figure T (if
applicable).
Figure T
Plastic
Plugs
To Next Page
