Braun 07 Series User Manual

Page 20
Bat.
Flush
Mount
Offset
OR
Aux.
Lead Cable to Side Post Mount
Lead Cable
Lift Power Cable
Buss
184100F-03-1
42VDC
3000A INTERRUPT
100A H45
WATERTIGHT ENCLOSURE
Side
Post
Mount
Top Post
Mount
Positive (+)
12 Volt
Battery
Post
Lead Cable to Top Post Mount
Item Qty. Description Part No.
1 1 Bracket, Flush Mount (Dodge) 28755
2 1 Bracket, Offset Mount (Ford/Chevy) 28498
3 1 Circuit Breaker, 100 Amp. 28704
4 4 Screw, 1/4-14 x 1", Self-Drilling, Hex 14145
5 4 Screw, #8-18 x 3/4", Self-Drilling, Wafer Hd. 18790
6 1 Decal, 100 Amp. Circuit Sentry 18181
Compact Circuit Sentry Kit 28910KS
Flush Mount
Bracket 28755
Offset Mount Bracket 28498
Circuit Breaker
4
5
3/8-16 x 1"
Hex Bolt
Spacer

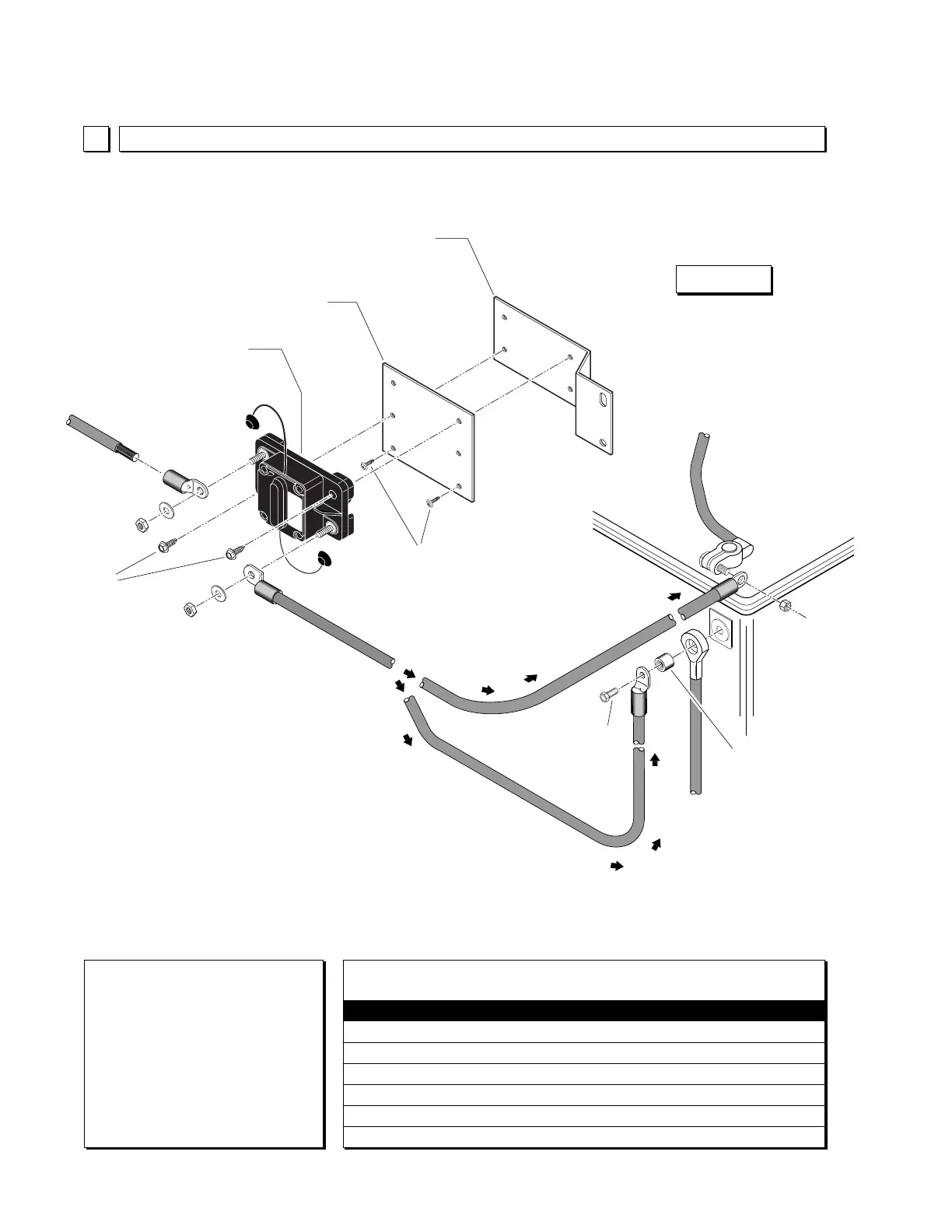

Lift Installation Instructions
4
Circuit Sentry Installation and Power Connection
P
Figure P
Note: Compact Circuit Sentry
Kit 28910KS is currently
supplied with 12 volt lift
models. Photos of the com-
pact Circuit Sentry installed in
Dodge and Ford vans appear
in Service Bulletin 28911
(supplied with each Compact
Circuit Sentry Kit 28910KS).
