Page 53

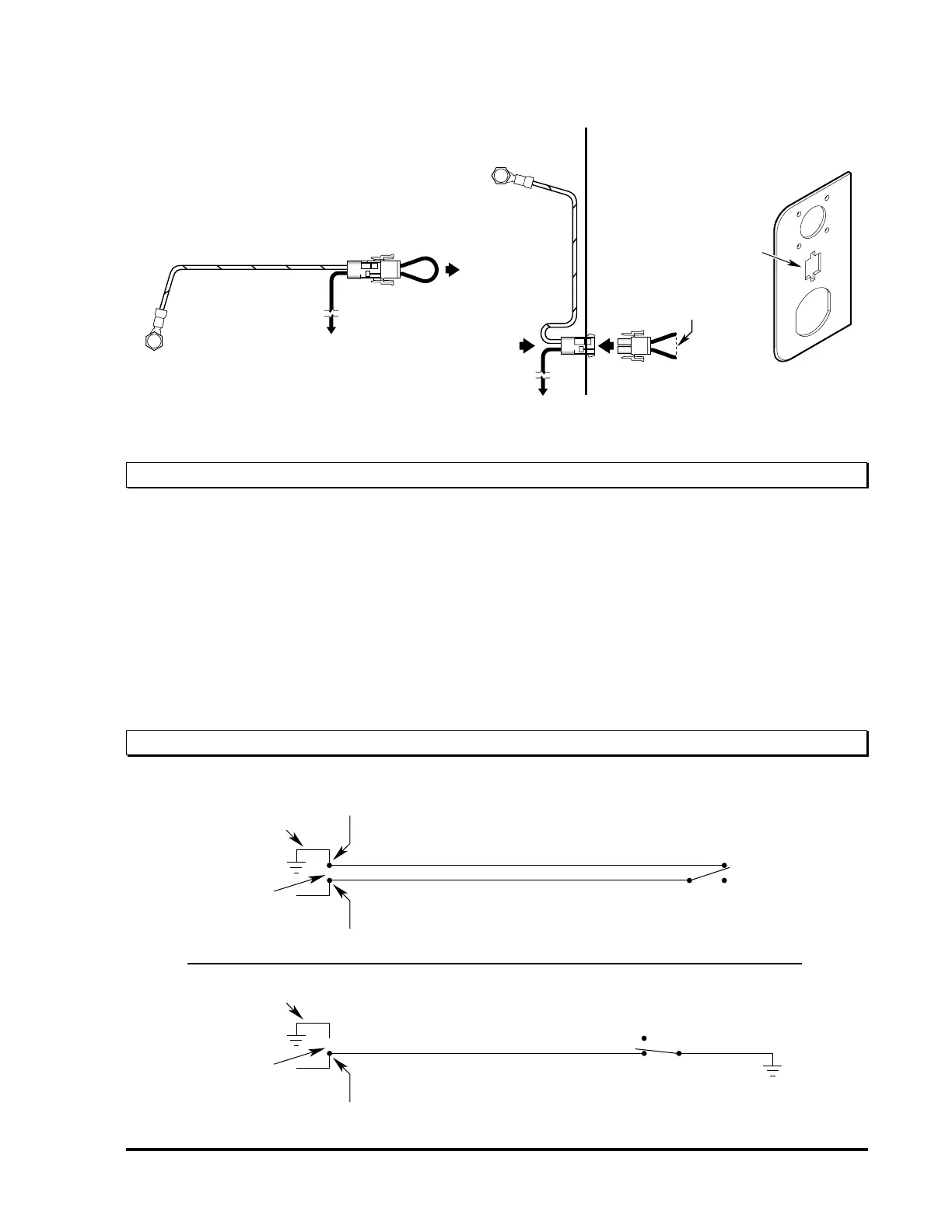

Lift Interlock Installation
GREEN
TO SWITCH BOX
W/BK
c.
d.
Ground
Housing Plate
Prepunched
Hole
Housing Plate
b.
W/BK
Ground
GREEN
TO SWITCH BOX
Interlock
Jumper
a.
NC
NO
COM
Distance to Interlock
Switch more than 5 feet
* Use 10 gauge wires
(Black preferred)
Connector
Previously
Cut
Jumper
INTERLOCK SWITCH
• 15 AMP rating
• customer supplied
CHASSIS
GROUND
Ground
NO
NC
COM
INTERLOCK SWITCH
Previously
Cut
Jumper
Distance to Interlock
Switch 5 feet or less
Ground
Connector
Connector
• 15 AMP rating
• customer supplied
* Use 12 gauge wires
(Black preferred)
Interlock Installation Instructions
1. To connect remote interlock switch:
a. Remove (disconnect) jumper male plug.
b. Snap plastic female socket into prepunched housing plate.
c. Cut jumper wire and connect remote ground source.
See Specifications below.
d. Reconnect male plug and female socket.
2. With lift unoccupied, test all lift functions to ensure proper interlock installation
(with interlock switch
opened and closed).
Specifications
To Next Page
