3. INSTALLATION
6
KE-484C
3-6. Installing the switching plate

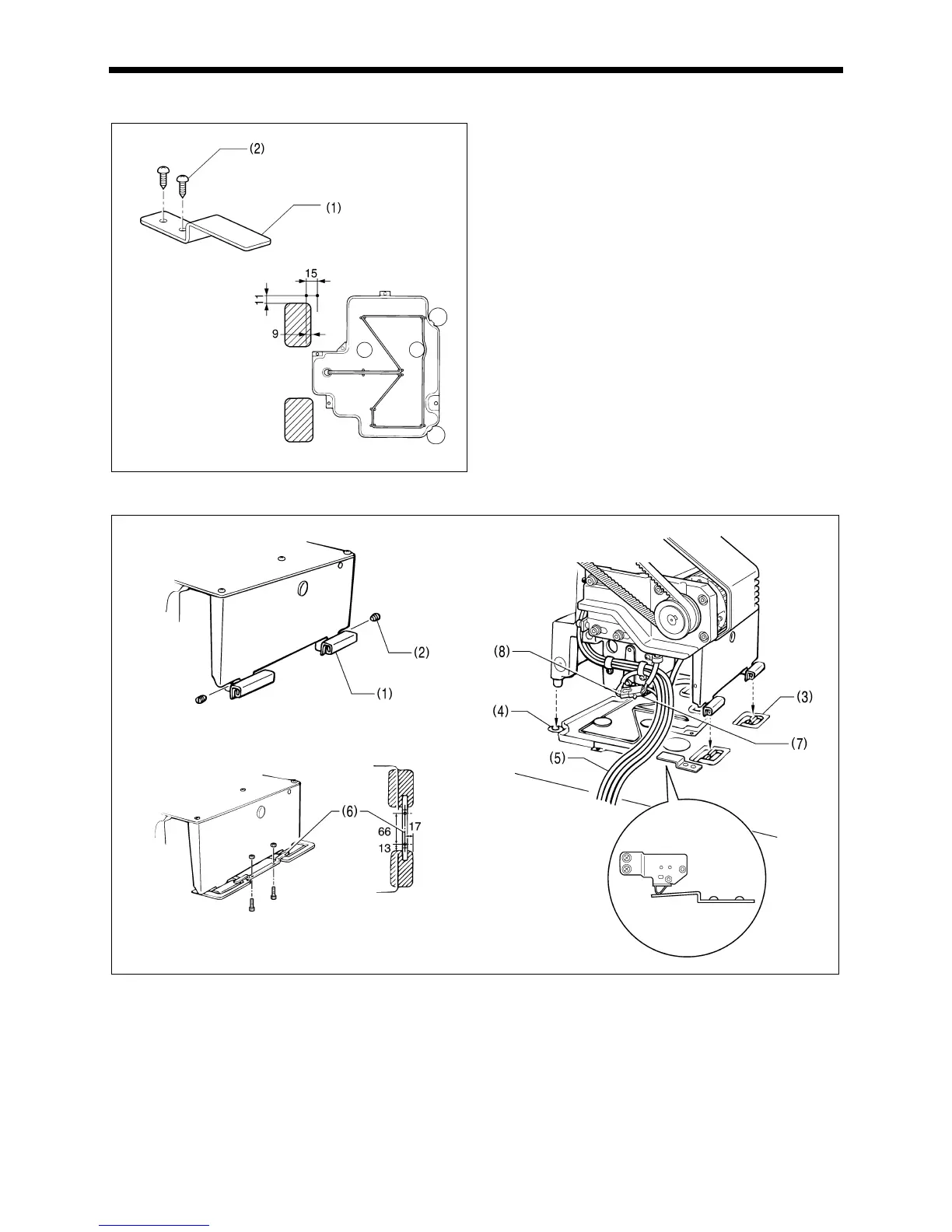

Install the switching plate (1) to the work table with the two wood
screws (2) in the position shown in the illustration.
* The switching plate and the switch bracket which is attached to
the machine head prevent the sewing machine from starting
when the machine head is tilted back. Therefore, this means
that the sewing machine will not start if the switching plate is
not installed.
3-7. Installing the machine head
1. Insert the head hinges (1) into the machine head so that they are parallel, and then secure them with the two set screws (2).
2. Place the machine head gently on top of the rubber cushions (3) and cushions (4).
Note:
Pull the cords (5) out as shown in the illustration above in order to prevent them from being clamped by the machine head.
3. Install the hinge presser (6) with the two bolts and two nuts.
4. Check that the head position switch is turned on as shown in Figure 1.
5. Connect the motor cord connector (7) to the accessory cord connector (8).
