3. INST
ALLA
TION
17
KE-484C

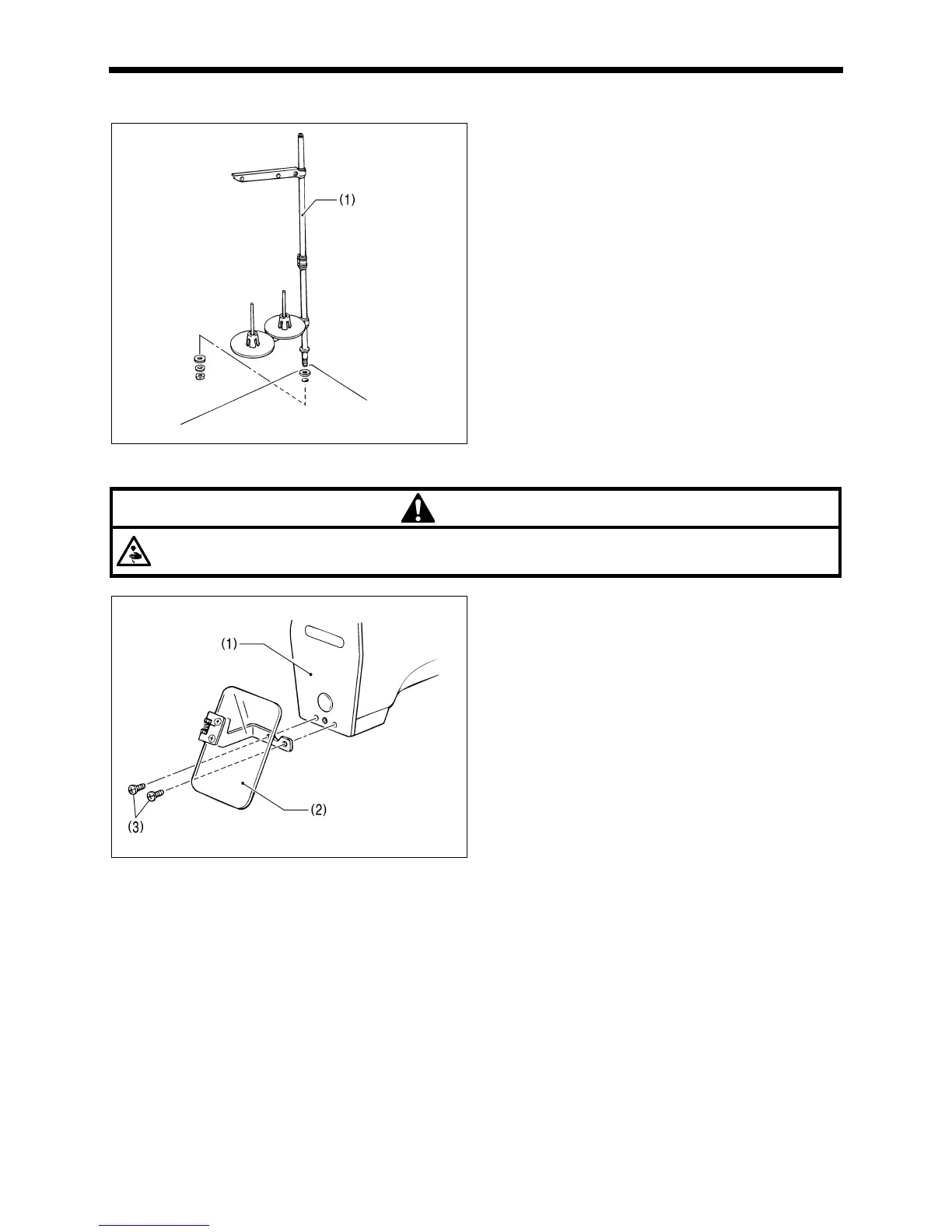

3-16.
Installing the spool stand
Assemble the spool
stand (1) while referring
to the spool
stand
instruction manual, and then install
the spool stand
(1) at the right
side of the w
ork table.
3-17.
Installing
the eye guard
C
A
U
T
I
O
N
Attach all safety
devices before u
sing the sew
ing machine.
If the machine is used without these
devices attached, injury
may result.
Install the eye guard assy
(2) to
the face pla
te (1) with the tw
o
screws (3)
.
2509Q
2510Q
22
24
Table of Contents
Default Chapter
2
Safety Instructions
2
Maintenance and Inspection
4
Warning Labels
5
Table of Contents
6
1 Name of each Part
7
2 Specifications
8
3 Installation
9
Power Table
9
Installing the Control Box
10
Installing the Rubber Cushions
11
Installing the Oil Pan
11
Installing the Cushions
11
Installing the Switching Plate
12
Installing the Machine Head
12
Installing the Head Rest
13
Installing the Operation Panel
13
Connecting the Ground Wire
14
Connecting the Cords
15
Piping
18
Installing the Belt Cover
21
Installing the Foot Switch
21
Installing the Needle Sub Plate
22
Installing the Spool Stand
23
Installing the Eye Guard
23
4 Lubrication
24
Lubrication Points
24
5 Operation
25
Name and Function of each Operation Panel Item
25
Operating Procedure
27
Operating the Foot Switch
28
Operating the Emergency Stop Switch
29
Operating the Thread Wiper Switch
29
6 Checking the Sewing Pattern
30
7 Correct Use
31
Installing the Needle
31
Threading the Upper Thread
31
Winding the Lower Thread
32
Replacing the Bobbin Case and Threading the Thread
33
Thread Tension
33
8 Sewing
36
9 Maintenance and Inspection
37
Checking the Needle
37
Cleaning the Rotary Hook
37
Lubrication
38
Draining the Oil
39
Cleaning the Control Box Air Inlet Port
39
Cleaning the Air Holes of Belt Cover and Frame Side Cover
39
Cleaning the Eye Guard
39
10 Standard Adjustments
40
Adjusting the Needle Bar Height
40
Adjusting the Needle Bar Lift Amount
40
Adjusting the Needle Clearance
41
Adjusting the Thread Take-Up Amount
41
Adjusting the Movable Knife
42
Adjusting the Work Clamp Lift Amount
44
Work Clamp Interchangeability
45
Adjusting the Needle up Stop Position
45
Adjusting the Thread Wiper
46
Adjustment of Air Pressure
46
Checking the Input Sensor and DIP Switch Input
47
Checking the Input Voltage
48
Clearing All Memory Settings
48
Moving Stitch Patterns
49
11 Using the Counters
50
Using the Bobbin Thread Counter
50
Using the Production Counter
50
12 Changing Functions Using the Dip Switches
51
Operation Panel DIP Switches
51
DIP Switches Inside the Control Box
52
Using User Programs
53
13 Changing Special Functions Using the Memory Switches
55
Using the Cycle Sewing Function
58
14 Setting the Work Clamp Mode
60
Light Work Clamp
61
15 Table of Error Codes
62
16 Troubleshooting
64
17 Optional Parts
67
Instruction Manual
68
