10. ST
ANDARD ADJUSTMENTS
36
KE-484C
10-5.

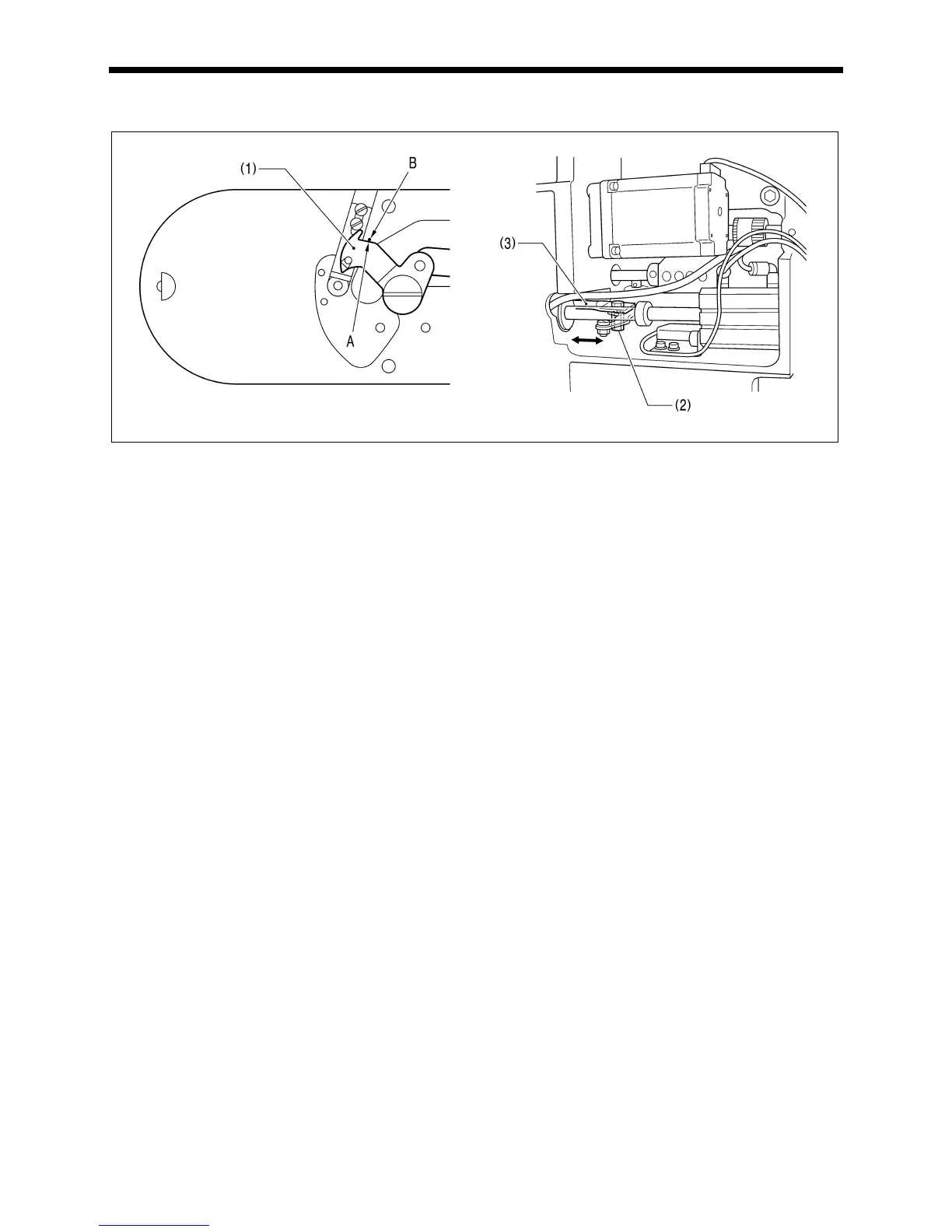

Adjusting the movable knife
Loosen the nut (2) and move the connec
ting rod lever (3) to the left or right to
adjust so that the V section
A
is aligned with
the
index mark B on the needle plate
when the sewing machine in
the stopped position and the movable knife (1) is pushed to the
machine pulley side so that there is no play
.
3206Q
3207Q
41
43
