5. OPERATION
19
KE-484C
5. OPERATION

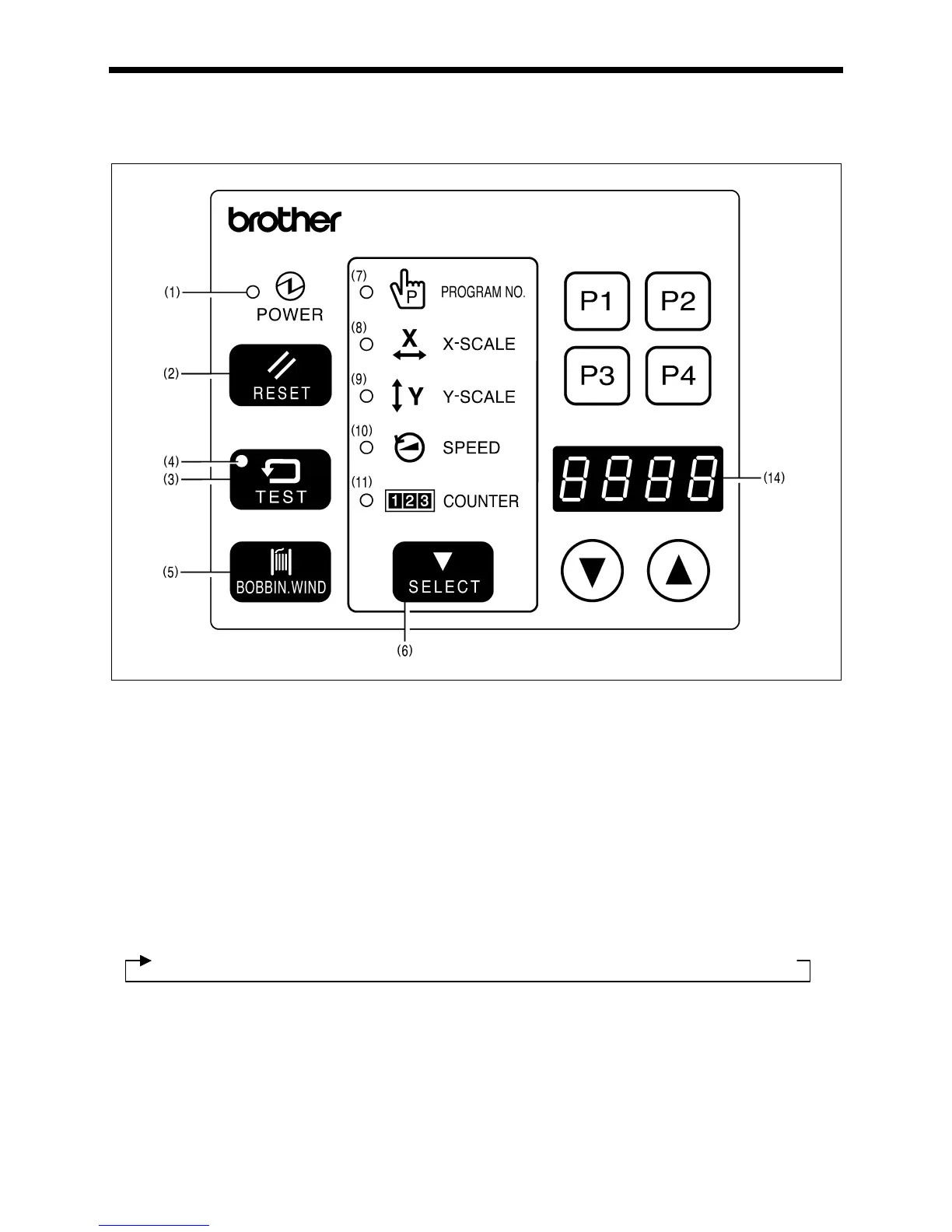

5-1. Name and function of each operation panel item
(1) POWER indicator......................Illuminates when the power switch has been turned on.
(2) RESET switch ..........................Press this switch to reset the machine when an error occurs.
(3) TEST switch .............................Use this switch when you want to operate only the feed mechanism in order to check a pattern.
(4) TEST indicator .........................Illuminates when the TEST switch has been pressed.
(5) BOBBIN. WIND switch ............Press this switch to wind the lower thread.
(6) SELECT switch ........................Use this switch to select a menu (program number, X and Y feed, speed and counter).
Each
time the switch is pressed, one of the menu indicators ((7) to (11)) illuminates, and the setting
for that menu item appears in the display (14). The illuminated indicator changes as follows
each time the switch is pressed.
PROGRAM NO. indicator (7)→X-SCALE indicator (8)→Ｙ-SCALE indicator (9)→SPEED indicator (10)→COUNTER indicator(11)
(7) PROGRAM NO. indicator.........Illuminates when the SELECT switch (6) is pressed to shown the program number setting.
2514Q
