6. CHECKING THE SEWING PATTERN
24
KE-484C
6. CHECKING THE SEWING PATTERN

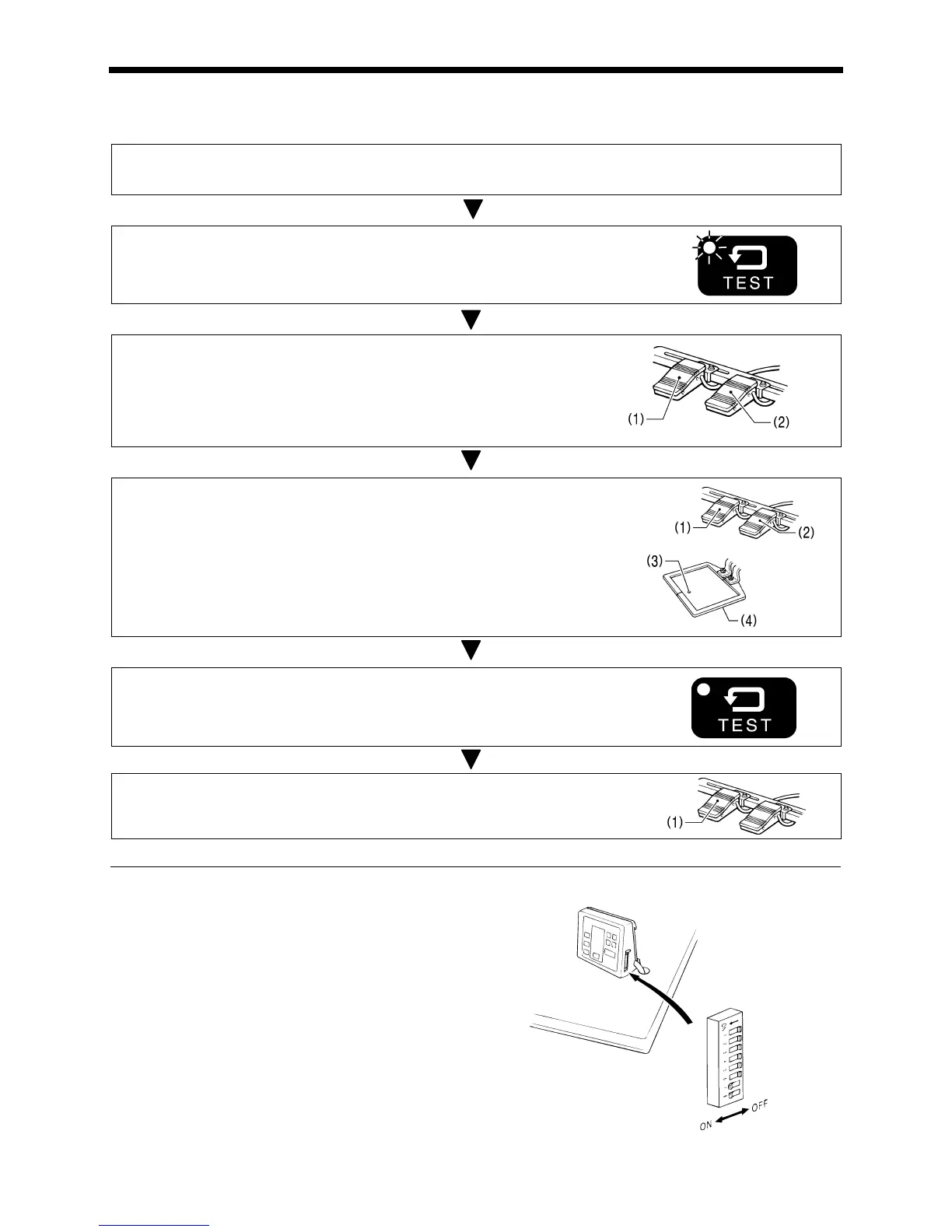

When checking by operating only the feed mechanism
1. Turn on the power switch.
(The POWER indicator will illuminate and the program number will flash in the display window.)
2. Press the TEST switch.
(The TEST indicator will illuminate.)
3. Depress the work clamp switch (1) to lower the work clamp, and depress
the start switch (2).
(The feed mechanism will move to the sewing start position and the program number
will stop flashing.)
* This operation is only carried out the first time that a program has been selected or the
size ratio has been changed.
4. Depress the work clamp switch (1) to lower the work clamp, and depress
the start switch (2). Only the feed mechanism will move.
[Check that the needle hole (3) does not protrude past the frame of the work clamp (4).]
* If you depress the work clamp switch (1) and keep it depresses after the feed mechanism
has started to move, the feeding speed will increase.
* If you would like to stop the feed while it is moving, press the TEST switch.
5. Press the TEST switch.
(The TEST indicator will switch off and the test mode will be cleared.)
6. Depress the work clamp switch (1).
The work clamp will rise and the preparation for sewing will be completed.
To ensure safety during use ......
You can prevent accidental changes being made to programs by
setting DIP switches 7 and 8 to ON.
When DIP switch 7 is ON
... The sewing pattern cannot be enlarged.
When DIP switch 8 is ON
... The program number cannot be changed.
