5. OPERATION
21
KE-484C
5-2. Operating procedure
Preparation
Turn on the power switch.
* The POWER indicator (1) will illuminate and the
program number will flash in the display window (14).
*1 For checking the origin points for X and Y feed
*2 Custom-made program
Note when creating additional data
When sewing data with a small number of stitches (15 stitches or less) is sewn repeatedly (short cycle operation), the
upper shaft motor may overheat and the “E-20” error code may be generated.

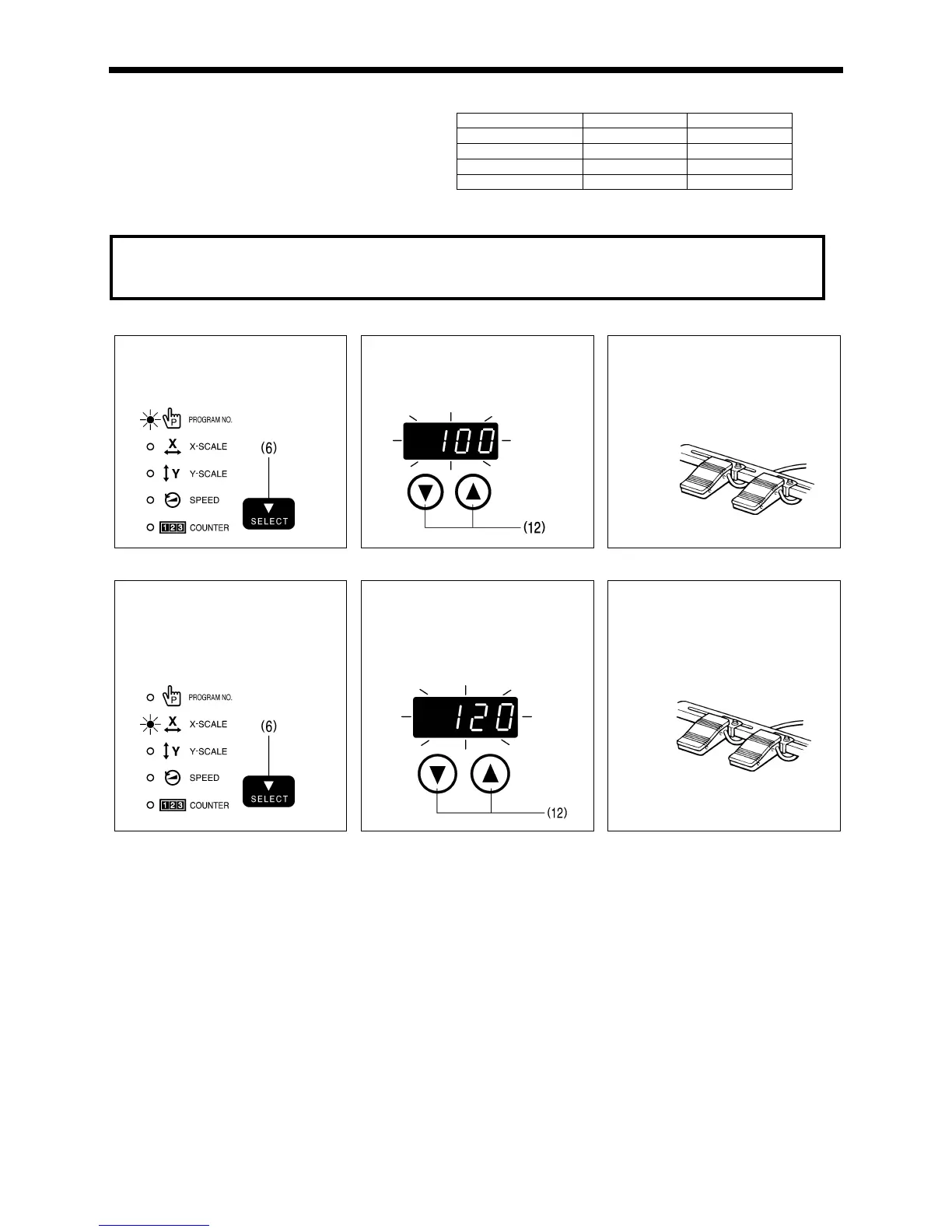

5-2-1. Setting the program number
1
Press the SELECT switch (6)
until the PROGRAM NO. in-
dicator illuminates.
2
Press the DISPLAY SET
switches (12) until the desired
program number is flashing in
the display window.
3
Depress the work clamp switch
to lower the work clamp, and
depress the start switch.
The display will stop flashing and
illuminates steadily, and the feed
mechanism will move to the sewing start
position.
This completes the setting of the program
number.
5-2-2. Setting the X-scale and Y-scale
1
Press the SELECT switch (6)
until the X-scale or Y-scale
indicator illuminates.
2
Press the DISPLAY SET
switches (12) until the desired
scale setting is flashing in the
display window.
(The setting is displayed as a per-
centage.)
3
Depress the work clamp switch
to lower the work clamp, and
depress the start switch.
The display will stop flashing and
illuminates steadily, and the feed
mechanism will move to the sewing start
position.
This completes the setting of the X-scale or Y-
scale.
Note:
* Be sure to check the sewing pattern (refer to page 24) after setting has been completed to make sure that the needle hole
does not go out of the area circumscribed by the work clamp.
* The needle racking width for backtack stitches (with stitch widths of 1 mm or less) is not enlarged or reduced. If this results
in problems, set memo-0d to "ON" to enlarge or reduce the needle racking width for backtack stitches.
Factory default Variable range
Program No. 0*
1
100- *
2
X-scale (%) 100 20 - 200
Y-scale (%) 100 20 - 200
Speed (rpm) 2,000 1,000 - 2,200
