3. INSTALLATION
16
KE-484C

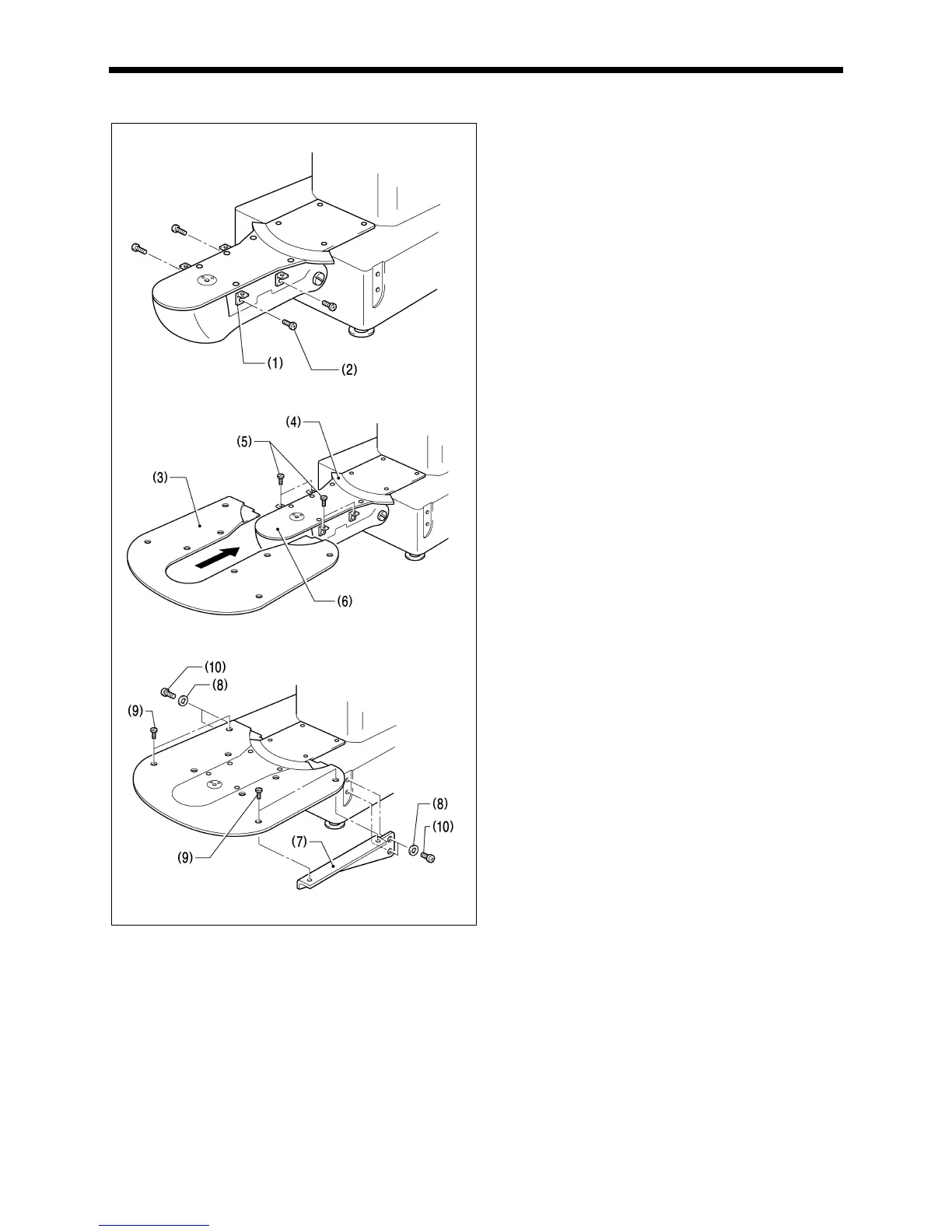

3-15. Installing the needle sub plate
1. Install the four needle sub plate supports (1) with the four
screws (2).
2. Insert the needle sub plate (3) from the front of the machine
so that it is level.
Note:
Insert the needle sub plate (3) so that the X feed lever cap
(4) sits on top of the needle sub plate (3).
3. Install the needle sub plate (3) with the four screws (5).
4. Loosen the screws (2) and make fine adjustments to the
height of the needle sub plate (3) so that it is at the same
height as the needle plate (6).
5. Provisionally secure the two auxiliary plate supports (7) with
the washers (8) and the screws (9) and (10), and then firmly
tighten the screws (9) and (10) in that order.
2599Q
2601Q
2600Q
