3. INSTALLATION
15
KE-484C

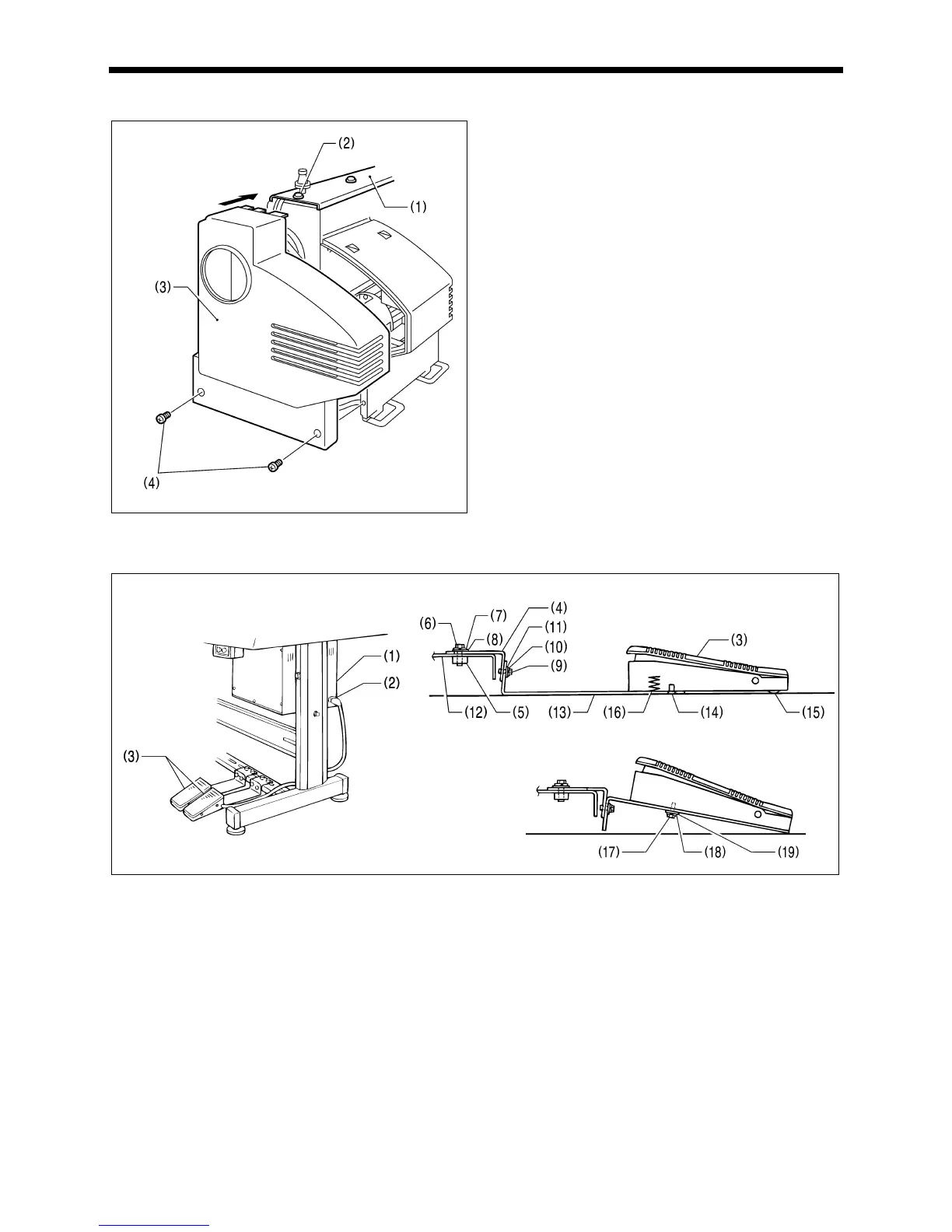

3-13. Installing the belt cover
1. Loosen the screw (2) of the upper cover (1).
2. Insert the belt cover (3) in the direction of the arrow, and then
secure it with the two screws (2) and the two screws (4).
Check that the cords do not get clamped by the belt cover at
this time.
* It is not necessary to remove the belt cover (3) when tilting
back the machine head.
3-14. Installing the foot switch
1. Insert the connector of the foot switch (3) into the connector (2) of the control box (1).
2. Install the foot switch (3) to the work table leg (12) with foot switch support plate A (4), foot switch support plate C (5), the bolt (6),
spring washer (7), flat washer (8), bolt (9), spring washer (10) and flat washer (11) as shown in Figure A.
If foot switch support plate B (13) is used in a back-to-front position, it can be used as shown in Figure B.
1. Remove the screw (14) and rubber plug (15).
* Note that the spring (16) will come out when the screw (14) is removed.
2. Turn foot switch support plate B (13) back to front, and then install it with the bolt (17), spring washer (18) and flat washer (19) as
shown in Figure B.
Note:
If using the foot switch without installing it to the work table leg, move the foot switch at least 10 mm away from the leg. If the
foot switch is not fully in contact with the work table leg when the foot switch is used, for example, if it is just hooked loosely onto
the work table leg, it may cause the sewing machine to operate incorrectly.
2456Q
2508Q
2507Q
2683Q
[A]
[B]
To Next Page
