12. CHANGING FUNCTIONS USING THE DIP SWITCHES
46
KE-484C
12-2. DIP switches inside the control box
DANGER
Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the wall outlet
before opening the face plate of the control box. Touching areas where high voltages are present can result in
severe injury.

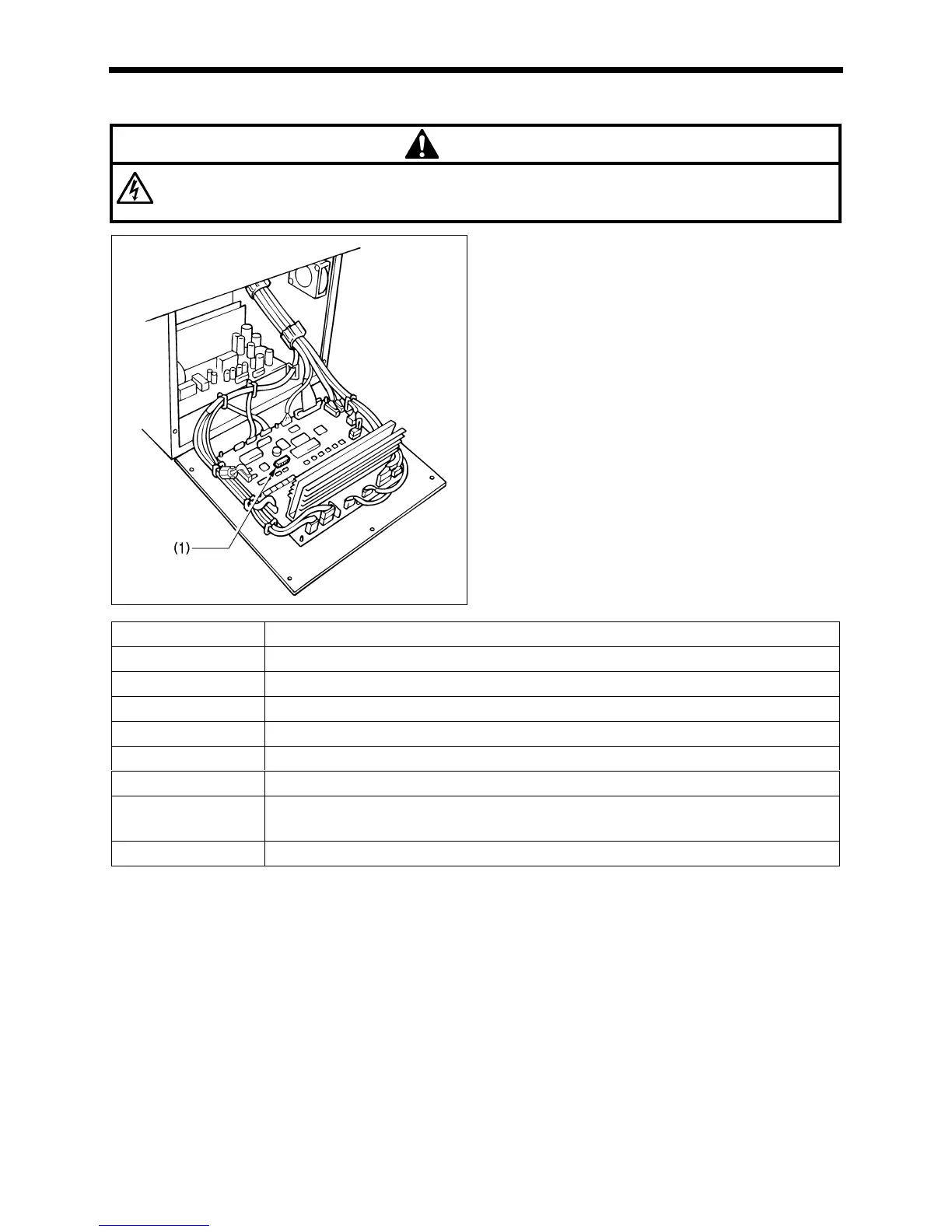

The functions can be changed as shown in the table below
by changing the positions of the DIP switches (1).
* All DIP switches are set to OFF at the time of shipment.
Note:
When opening the cover, hold it securely so that it does not
fall down.
Switch Motion when set to ON
DIPB-1 First two stitches are sewn at a low speed of 260 rpm.
DIPB-2 Last two stitches are sewn at a low speed of 260 rpm.
DIPB-3 −
DIPB-4 Last two stitches are sewn at a low speed of 700 rpm.
DIPB-5 First two stitches are sewn at a low speed of 400 rpm.
DIPB-6 Low speed sewing is not performed at the start of sewing.
DIPB-7
The motor operates in reverse when the upper shaft stops, to return the needle bar to close to its
highest position.
*NOTE
DIPB-8 −
*Note:
When the motor operates in reverse to raise the needle, the thread take-up will stop at a position which is lower than its
normal stopping position. As a result, the thread take-up will rise slightly at the sewing start, and this may result in the
thread pulling out under certain conditions.
2484Q
