Canon iR6000 Service Handbook

CHAPTER 4 SERVICE MODE
4-5

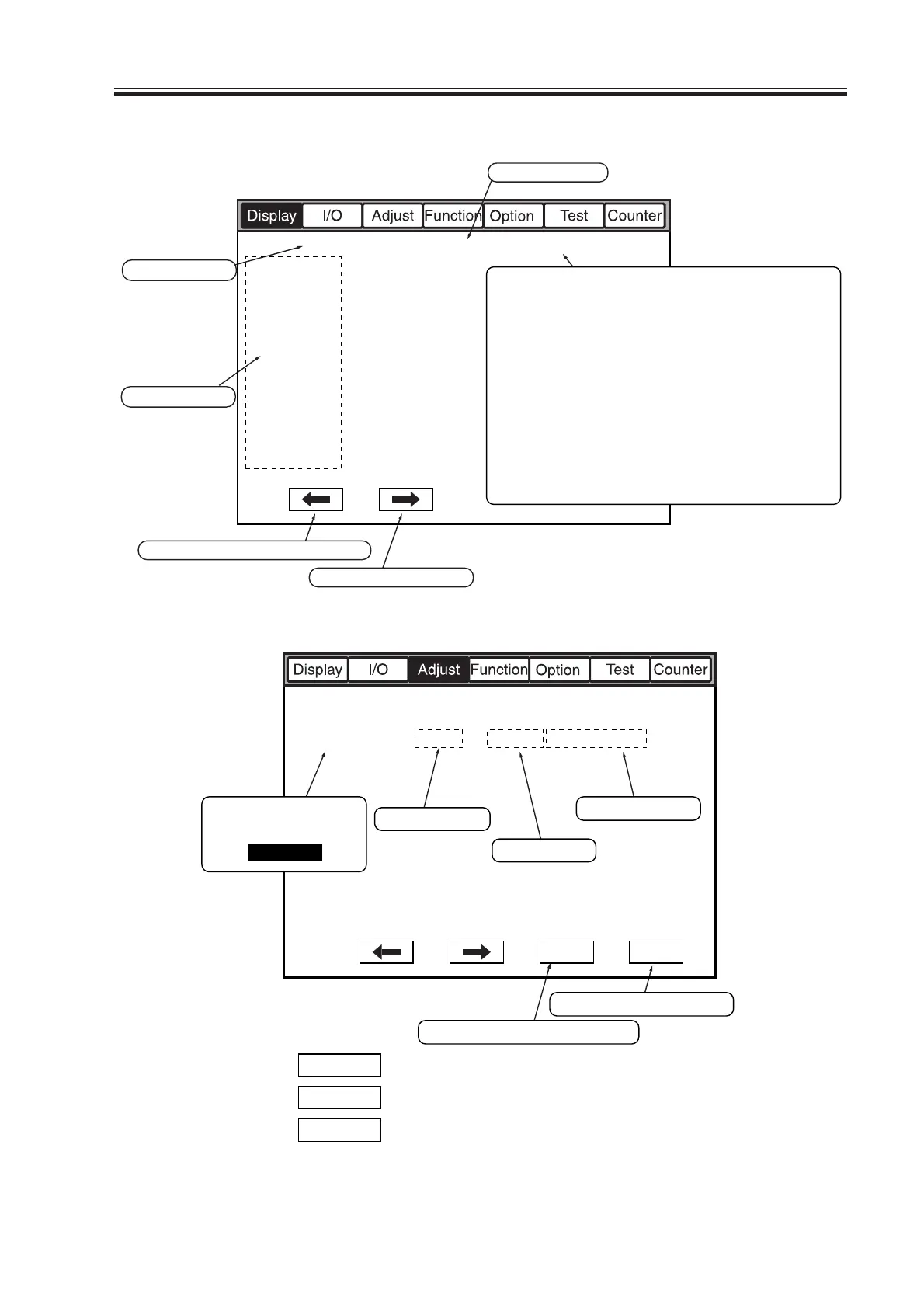

1.5.3 Level 3 Screen
F04-105-03
F04-105-04
<VERSION>
< 1/2 > < READY >
DC-CON
R-CON
PANEL
FEEDER
SORTER
NIB
PS/PCL
LIPS
READY: ready to accept a servicing/
copying operation.
JAM: paper jam exists.
SERVICE: service operation under way.
WAITING: initial rotation or the like under
way.
DOOR: door open.
COPYING: copying under way.
ERROR: error exists.
NO-TONER: toner absent
WTNR-FUL: full of waste toner.
Level 2 item
Level 3 item
To go back to previous page
To go to next page
Page number
xxxxx
(yyyyy)
{aaaaa~bbbbb}
+/-
OK
ADJ-X
<ADJ-XY>
< 1/1 > < READY >
ADJ-X
key: stops the ongoing operation.
Accepts input value
Switches between + and -
Highlighted when
selected
Before
Stop
key: clears a value.
Clear
key: makes copies without ending service mode.Start
Input value
Range of input values
