3.4 Mounting the Developing Blade
3.4.1 Removing the Blade Unit
1) Take the developing assembly out of the
machine.
2) Remove the two mounting screws [1],
and detach the developing assembly
cover [2].

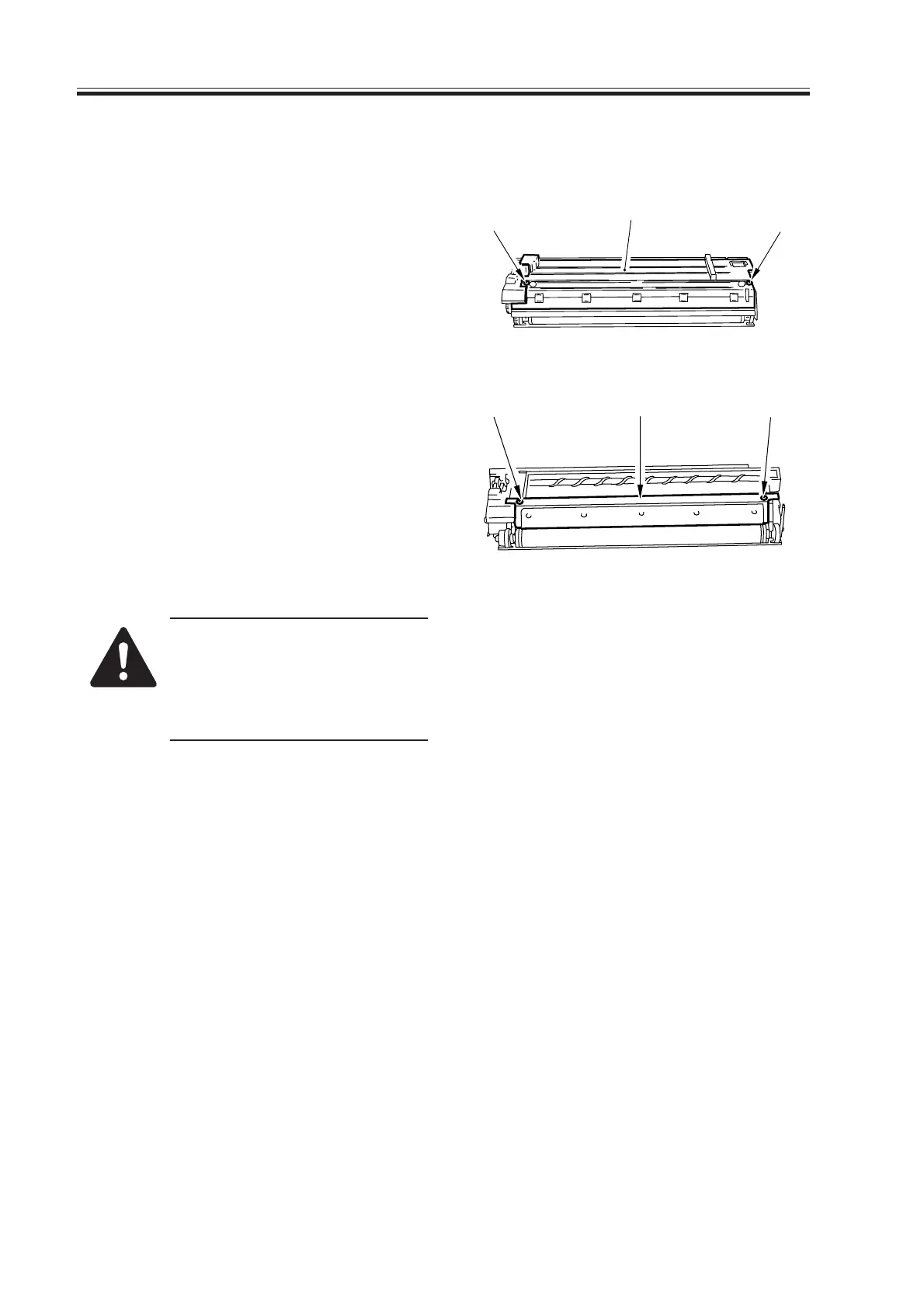

F02-203-15
3) Place a newspaper on the floor or a
desk, and pour out the toner onto the
newspaper from the developing assem-
bly.
4) Remove the two mounting screws [3],
and detach the blade unit [4] together
with its mounting base.
F02-203-16
The blade must be mounted
with a high accuracy. Do not
remove it on its own in the field
(i.e., be sure to remove it intact
with its mounting base).
3.4.2 Mounting the Blade
Mount the blade by reversing the steps used to remove it.
1) Push the blade mounting base against
the developing assembly, and tighten
the two mounting screws.
When mounting the blade, place copy
paper on the developing cylinder first to
protect the developing cylinder.
[1]
[2]
[1]
[3] [4] [3]
