CHAPTER 2 STANDARDS AND ADJUSTMENTS
2-29
4.4 Orientation of the Pickup Roller of the Side Paper Deck
The pickup roller may be mounted by reversing the steps used to remove it; however, be
sure to keep the following in mind:
• The pickup rollers used at the front and the rear of the machine are not interchangeable.
• The collar of the pickup roller used at the front of the machine is silver-colored.

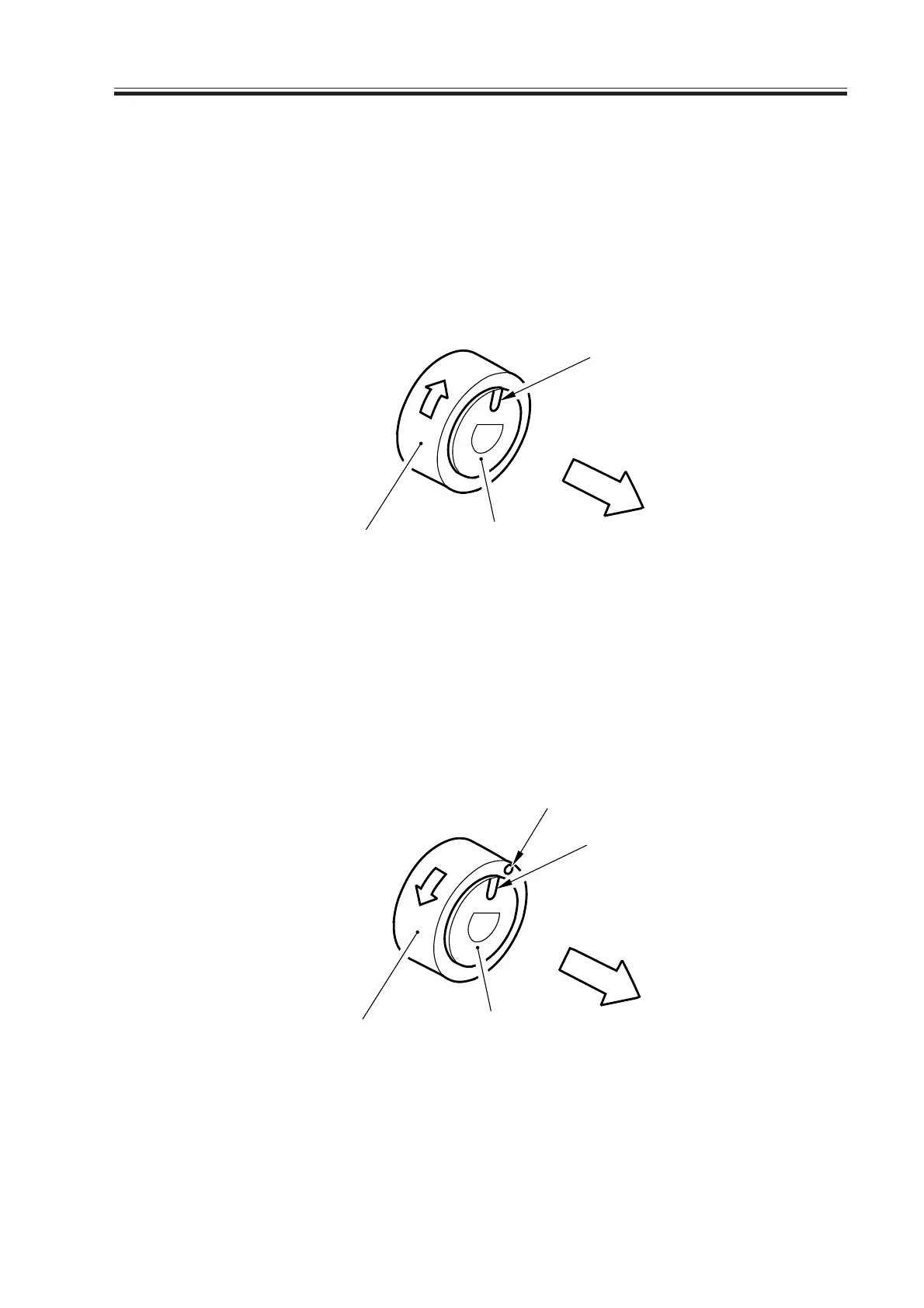

When mounting the pickup roller [1] to the pickup assembly, be sure that the round mark-
ing [2] found on the collar (silver-colored) is toward the front of the machine.
[1] Pickup roller
[2] Marking (on collar)
F02-404-01
• The collar on the pickup roller found at the rear of the machine is gold-colored.
When mounting the pickup roller [4] to the pickup assembly, be sure that the round mark-
ing [5] found on the side of the roller and the round marking [6] found on the collar (gold-
colored) are toward the rear of the machine.
[4] Pickup roller
[5] Marking (roller)
[6] Marking (collar)
F02-404-02
[1]
[2]
(direction of rotation)
Collar (silver-colored) (front of machine)
[5]
[6]
[4]
(direction of rotation)
Collar (gold-colored) (rear of machine)
