Canon iR6000 Service Handbook

CHAPTER 2 STANDARDS AND ADJUSTMENTS
2-16

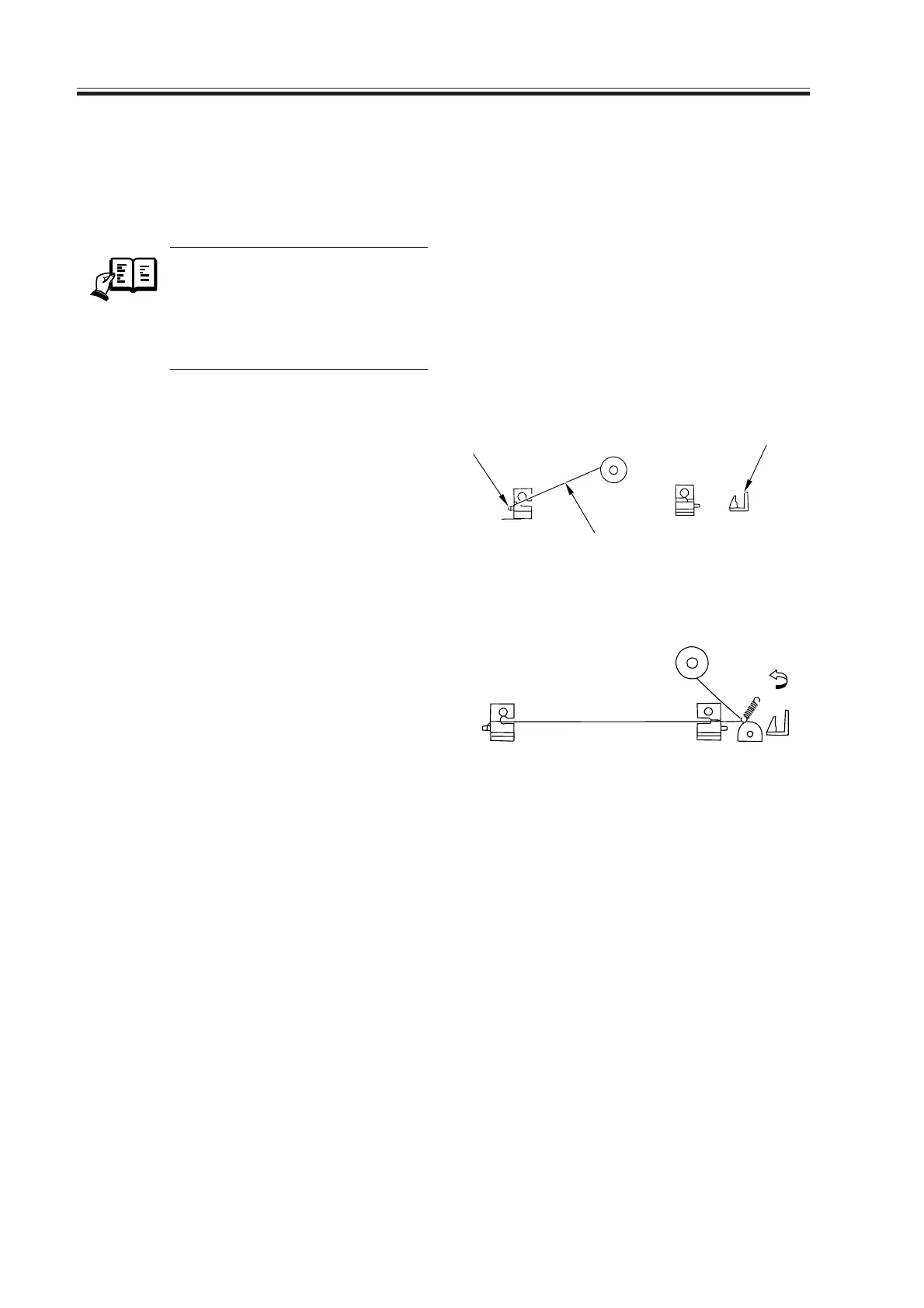

3) Free a length of about 5 cm of charging
wire from the charging wire reel (0.06
mm in diameter), and form a loop at its
end with a diameter of about 2 mm.
REF.
To form a loop, wind the charg-
ing wire around a hex key once,
and turn the hex key three to
four times; then, twist the charg-
ing wire.
4) Cut the end (excess) of the twisted
charging wire.
5) Hook the loop on the stud.
F02-203-05
6) At the rear, hook the charging wire on
the charging wire positioner; then, hook
the charging wire tension spring on the
charging wire where indicated to F02-
203-06.
F02-203-06
Charging electrode
(rear)
(front)
Charging wire
Reel
Stud
