Canon iR6000 Service Handbook

CHAPTER 2 STANDARDS AND ADJUSTMENTS
2-7
2. Scanning System

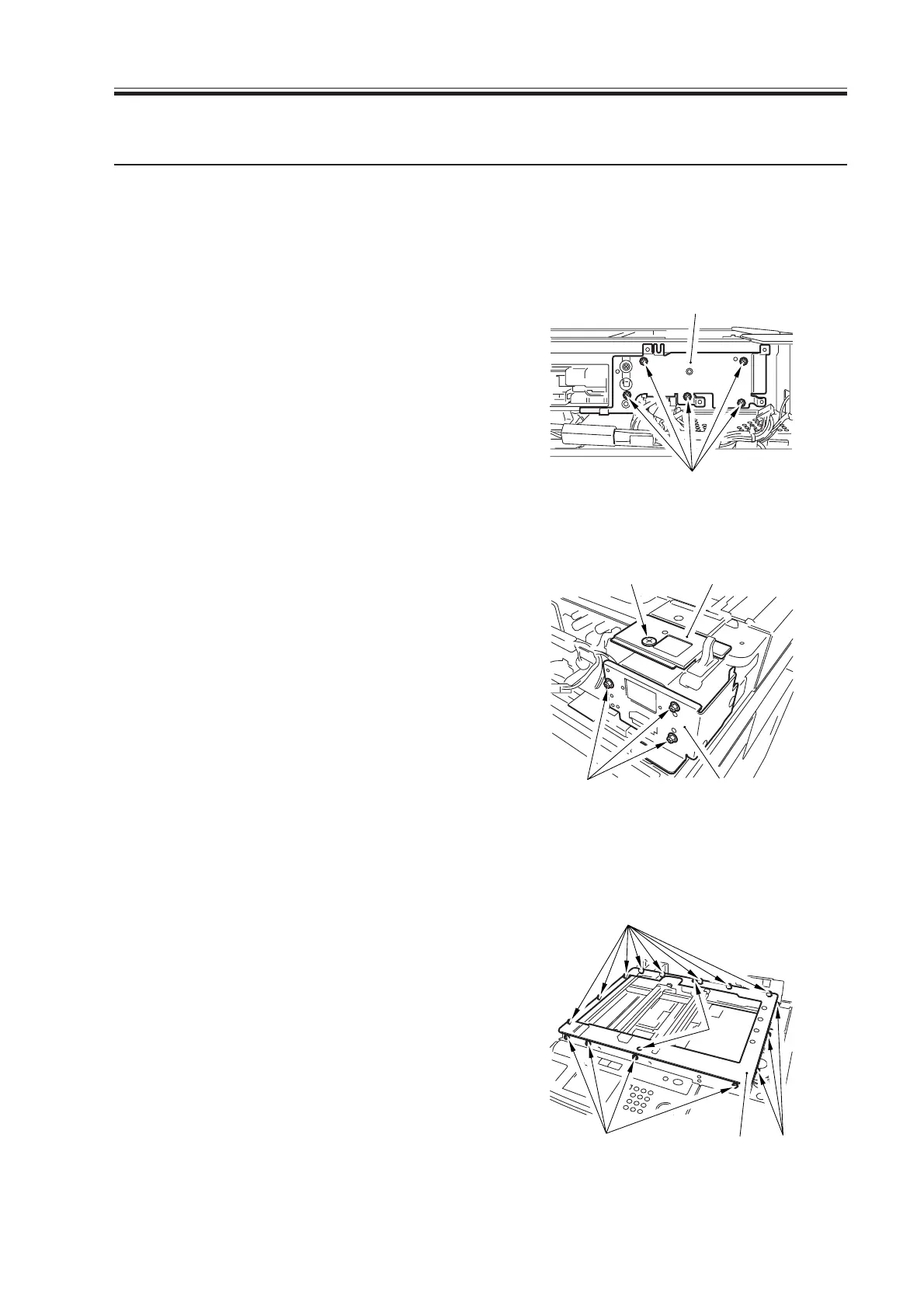

2.1 Replacing the Scanner Drive Cable
2.1.1 Removing the Scanner System Drive Cable
Obtain the following before starting to replace the scanner drive cable:
• mirror positioning tool (FY9-3040-000)
1) Remove the ADF.
2) Remove the copyboard glass.
3) Remove the reader left cover and the
reader front cover.
4) Remove the motor cover. (See steps 1)
through 4) used to the motor.)
5) Remove the five screws [1], and detach
the PCB base [2].
F02-201-01
6) Remove the screw [3], and detach the
ADF base (left) [4]; then, remove the
three screws [5], and detach the
copyboard sensor base [7].
F02-201-02
7) Remove the 15 screws [7], and remove
the two screws [8]; then, detach the
reader upper frame [9].
F02-201-03
[1]
[2]
[7]
[7]
[7]
[9]
[8]
[3] [4]
[6]
[5]

Canon iR6000 Specifications

General

Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan
Print Speed	60 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Paper Sizes	A3, A4, B4, B5
Warm-Up Time	30 seconds
Multiple Copies	Up to 999
Magnification	25-400%
Copy Speed	60 ppm (A4)
