Canon iR6000 Service Handbook

CHAPTER 2 STANDARDS AND ADJUSTMENTS
2-28

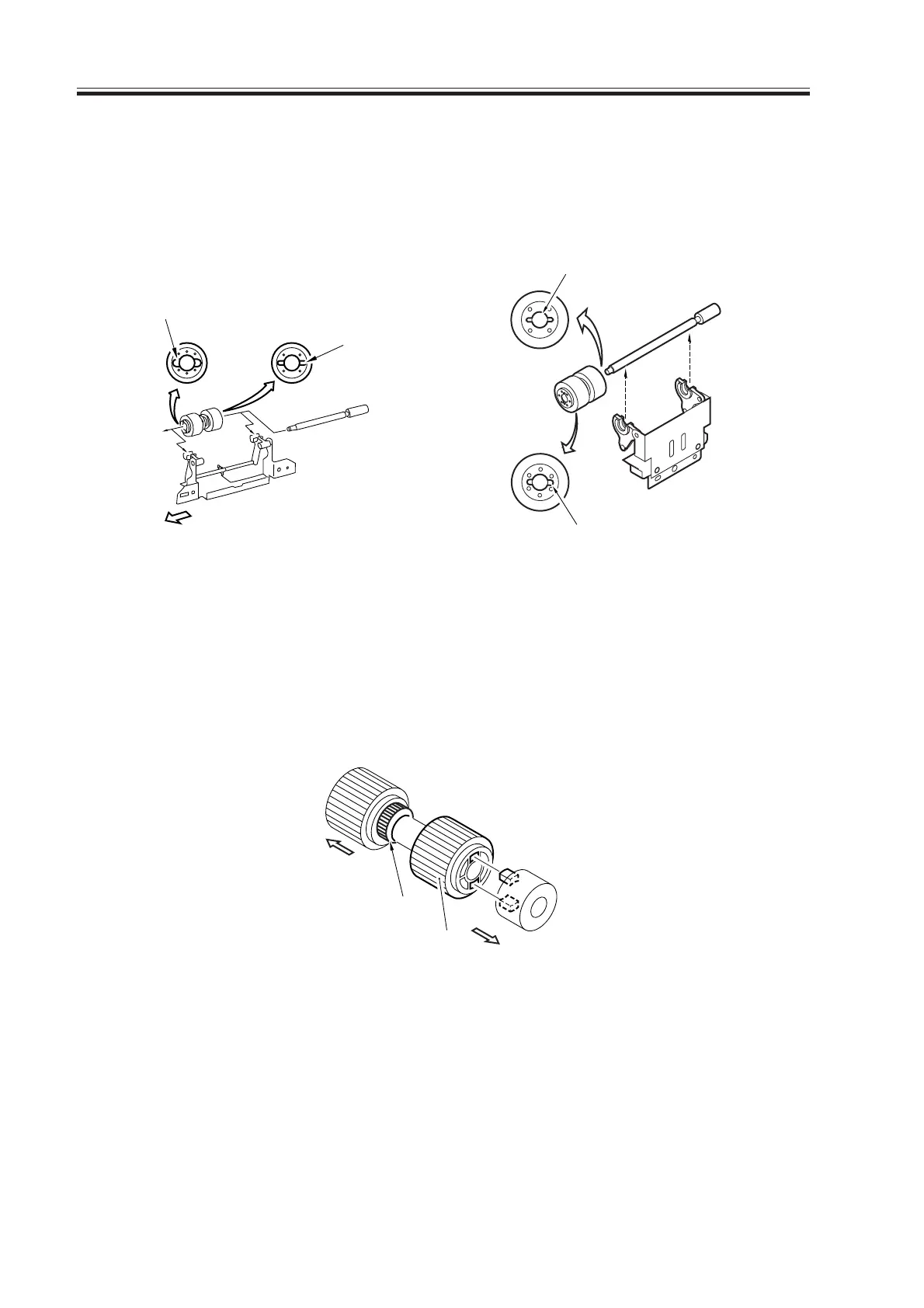

4.2 Orientation of the Deck/Cassette Separation Roller
When replacing the separation roller, be sure it is oriented as follows:
Cassette 3/4, Right Pickup Assembly Left Deck Pickup Assembly
F02-402-01
4.3 Orientation of the Feeding Roller of the Deck/Cassette
Pickup Assembly
When mounting the feeding roller assembly of the deck/cassette pickup assembly, be sure
the belt pulley [2] is toward the front of the machine.
F02-403-01
Wider groove
Narrower groove
(front of machine)
(rear of machine)
Wider groove
Narrower groove
[1]
[2]
(rear)
(front)
